16

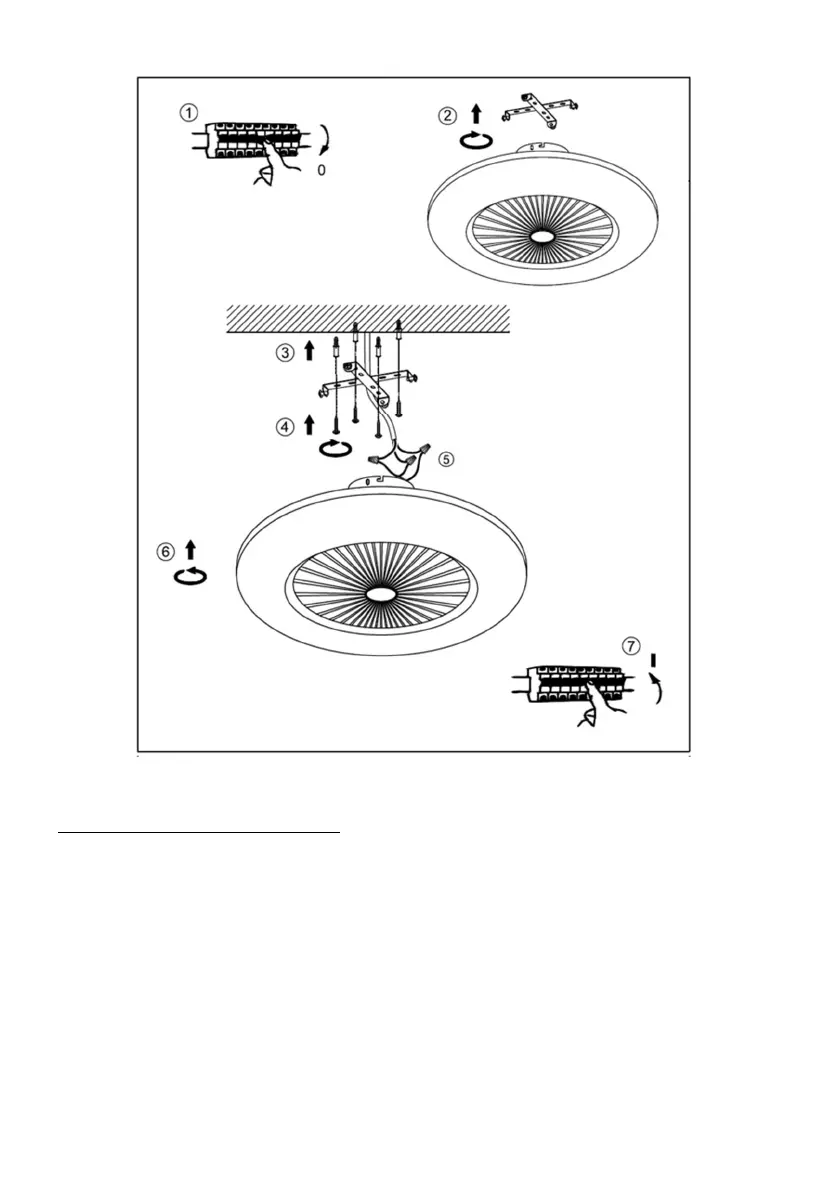

INSTALLATION OF THE APPLIANCE:
1) Disconnect the power supply by turning off the circuit switch on the electrical panel.
2) Separate the bracket from the appliance body, rotating it slightly clockwise.
3) Position the bracket on the ceiling where the appliance is to be installed. Mark the
points corresponding to the bracket's internal grooves, then drill the ceiling using
an electric drill and fully insert the wall plugs into the holes. For solid wood ceilings,
omitting the wall plugs can be considered.
4) Pass the screws through the grooves in the bracket and secure the latter by fully
tightening the screws into the plugs.
5) Make the electrical connections by connecting the live wire to terminal L, the
neutral wire to terminal N, and the ground wire to the remaining terminal.
