www.megger.com
EVX100
8
Instrument Overview
3. Instrument Overview

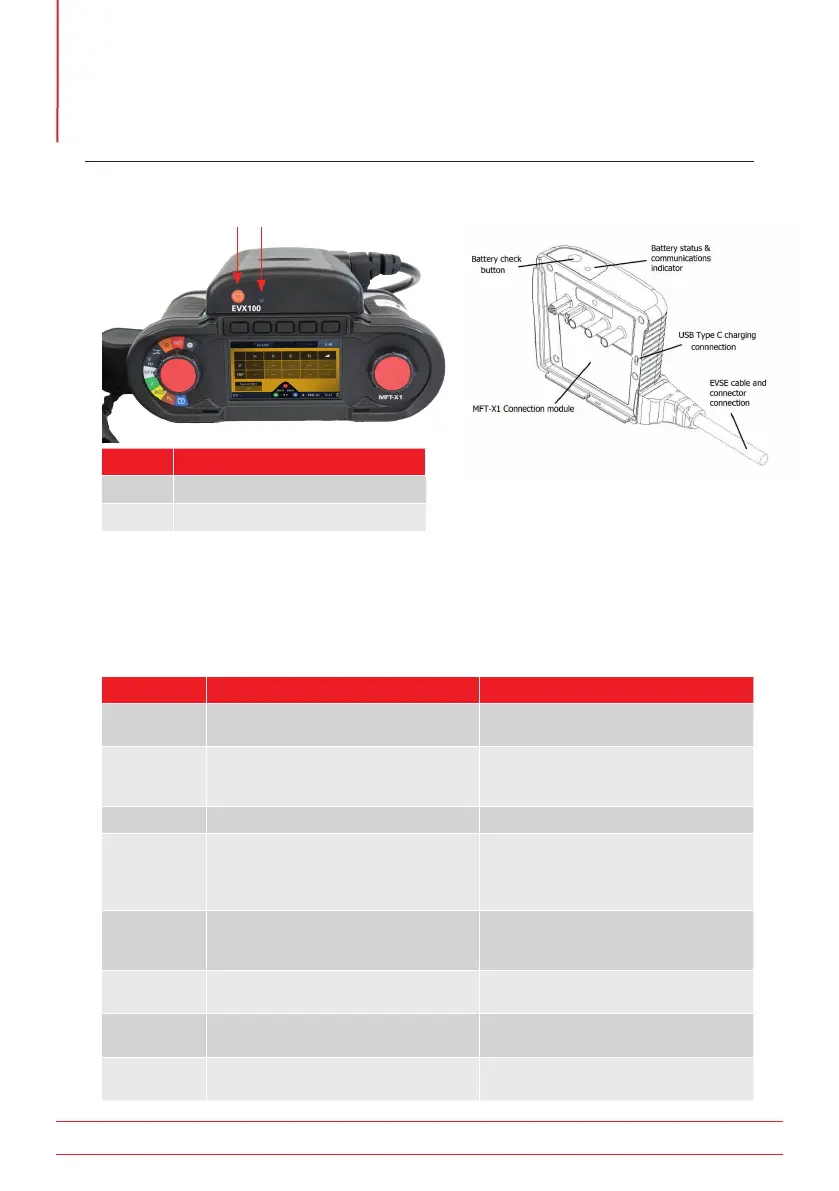

3.1 EVX100 Instrument layout
1 2
Item Description
1 Battery level check button
2 LED indicator
3.2 EVSE (Charger) Status codes
The following list explains the EV charger status codes reported by the MFT-X1 when using the
EVX100. Most of these codes will only appear momentarily during a tripping test sequence.
For normal operation with the MFT-X1 switched on and the EVX100 connected to a working
charger the EV charger will be in state C2.
Status Code Description Action required
EVSE EVX100 not connected to Charger or
Charger not detected.
Check utility supply to Charger.
A1/A2 Charger not ready. Displayed when the EVX100 is cycling
through A/B/C codes to reset charger
after tripping test.
B1 EVX detected. Charger not ready to suppply energy.
B2 EVX detected. Charger ready to supply energy
(connector interlock should be engaged).
Displayed during RCD or RDC trip
automatic resetting sequence.
C1 EVX comms established with charger.
Green EVX flashing light.
Charger not ready to supply energy.
Rare - this is normally a fault condition of
the charger. The EVX100 cannot set the
charger into C2 charging active mode.
C2 EVX connected and active - Charger
output active.
This is the normal operating state before
any tripping test is applied.
E Error state. Usually loss of utility power.
Also possible loss of utility supply.
Charge EVX100 and MFT-X1. Check utility
supply before restesting.
F Fault. Usually generated during a CP or PE
error state.
