Je bekijkt pagina 37 van 55

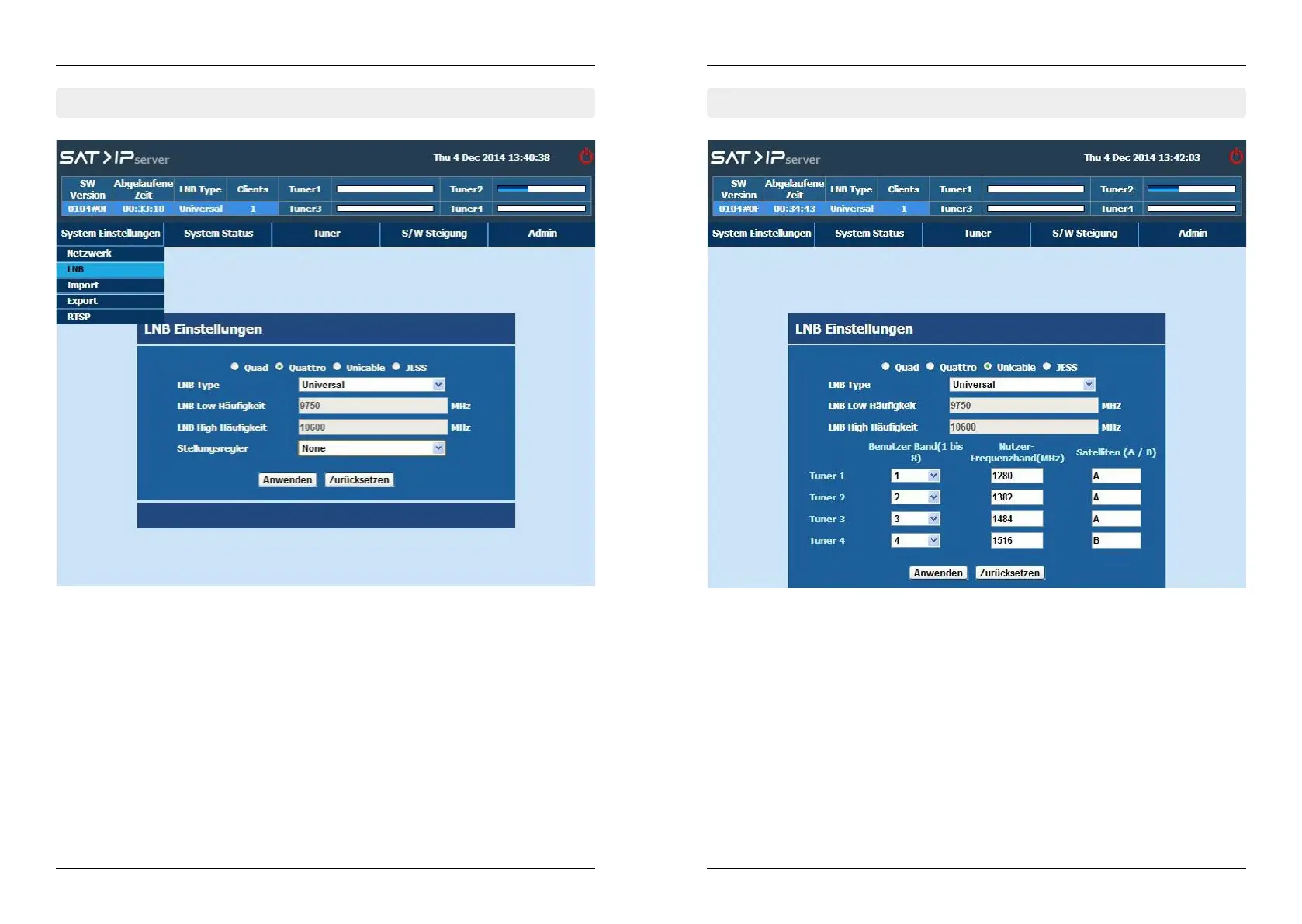

4.2.3 Quattro 4.2.4 Unicable
4. System Settings
18
19ENGLISH ENGLISH
4. System Settings
Satellite reception system consists of a Quattro LNB. Connect the 4 outputs of the
Quattro LNB to the inputs 1... 4 of the Server via suitable SAT antenna cables & and ensu-
re the correct port assignment should be as follows:
• RF#4 - LNB output „horizontal high“ into input 1(11.70-12.75 GHz)
• RF#3 - LNB output „horizontal low“ into input 3(10.70-11.70 GHz)
• RF#2 - LNB output „vertical high“(11.70-12.75 GHz)
• RF#1 - LNB output „vertical low“ (10.70-11.70 GHz)
Unicable distribution is a satellite TV technology that enables delivery of broadcast pro-
gramming to multiple users over a single coaxial cable.
• Unicable IF Channel have eight options: None, 1, 2, 3, 4, 5, 6, 7 & 8
• User has provided the edit option Centre frequency.
• User has provided the option to select the available Ports A or B.
