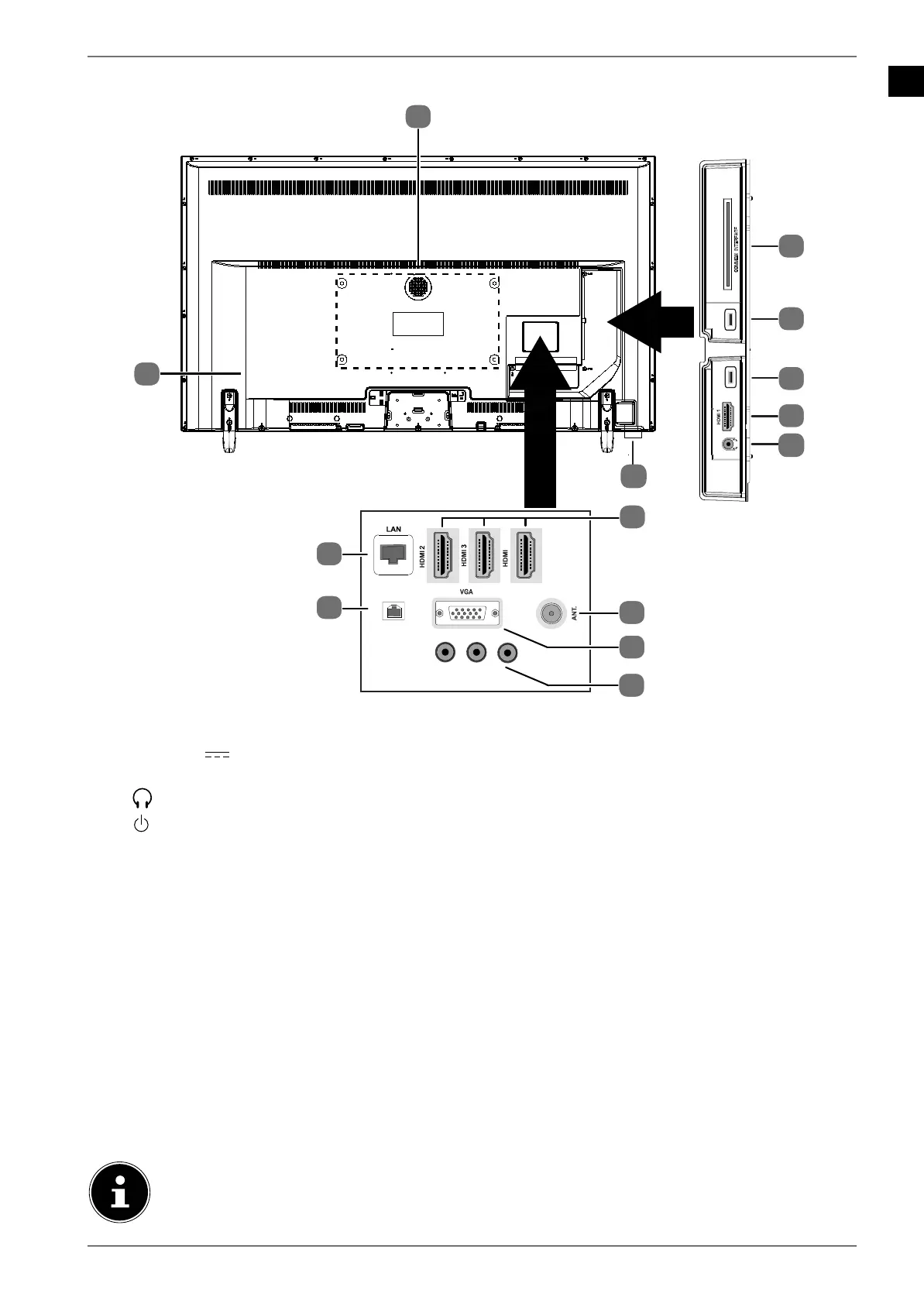

5.2. Rear and right-hand side

USB

5Vdc

Max. 500mA

USB

5Vdc

Max. 500mA

(ARC)

SPDIF

Optic. out

L

R

Video

BACK AV IN

4

1

2

3

4

5

6

7

8

9

13

10

11

12

1) COMMON INTERFACE (CI+): Card slot for connecting pay TV cards

2) USB (5V

, 500 mA max.): USB connection for media playback/recording (PVR)

3) HDMI 1: HDMI port for devices with HDMI output

4)

: For connecting headphones with 3.5 mm jack

5)

: Multifunction button for standby function, switching channels, selecting input source or

controlling volume. When the device is in standby mode, you can switch on the device by

briefly pressing the button. Briefly press the button when the device is in use to open the

function menu. Then briefly press the button again to select the desired function. Press and

hold the button to open the menu for the selected function. In the case of the standby func-

tion, the device then switches to standby mode. You can change the setting in the menu by

briefly pressing the button. Then press and hold the button to apply the settings made. The

function menu closes automatically after a few seconds of inactivity.

6) HDMI 2-4: HDMI connection for devices with HDMI output (HDMI 2 can be used for CEC/ARC)

7) ANT.: For connecting the antenna (analogue, DVB-T or DVB-C)

8) VGA: VGA port for connecting a PC or a YUV adapter (optional)

9) BACK AV IN: Audio/video input (cinch)

10) SPDIF optic. OUT: Digital audio output (optical)

11) LAN: Network connection for connection to the Internet

12) Connection for mains plug

Please only use the mains connection cable supplied for this purpose.
