Drainage
When the air conditioner is used in Dry Mode the drainage hose needs to be attached continuously to
the central drainage port in order to remove any collected water (Diagram 1).
When the air conditioner is used in Heat Mode the drainage hose needs to be attached continuously
to the lower drainage port in order to remove any collected water (Diagram 2).
When the air conditioner is used in Cool Mode the drainage hose does not need to be attached
continuously. However, in high humidity conditions or after a long period of use, the water tank will
need to be drained using the drainage hose. Ft (Full Tank) will appear on the display to inform you
when this needs to be done (Diagram 2).
1. Unplug the air conditioner.
2. Raise the air conditioner slightly to allow water to drain out from the water tank via gravity.
3. Remove the plug from the drainage port (it is very important not to lose the drainage bung).
4. Securely attach the drainage hose to the port.
5. Place the end of the hose over a drain or bucket and ensure that the water can ow freely out of the
air conditioner.
6. Do not submerge the end of the hose into the water as this will create an air lock.
7. Once the water has been drained, remove the hose and reinsert the plug.

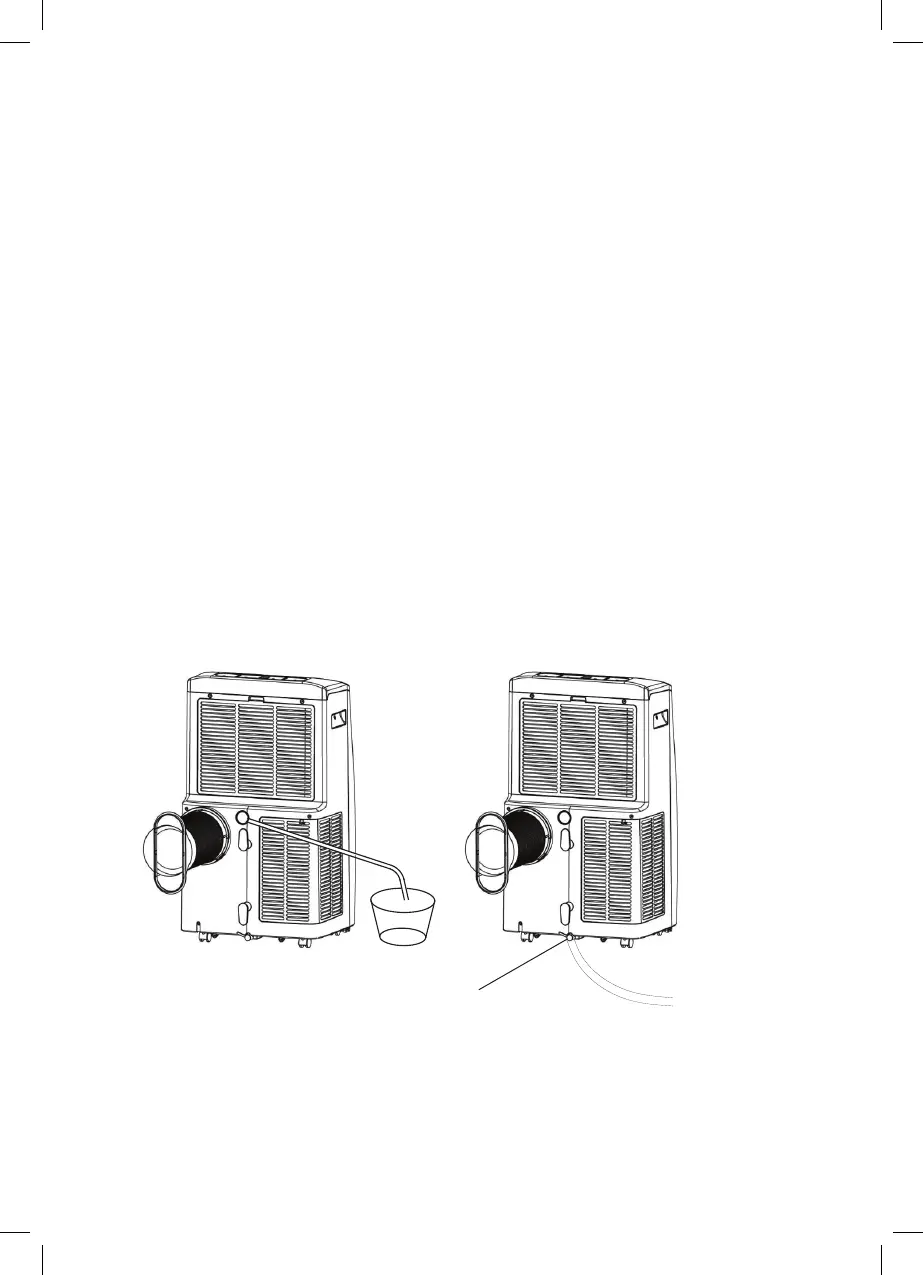

Diagram 1 Diagram 2
[EN] 17
Securely attach the drainage
hose to the outlet.
