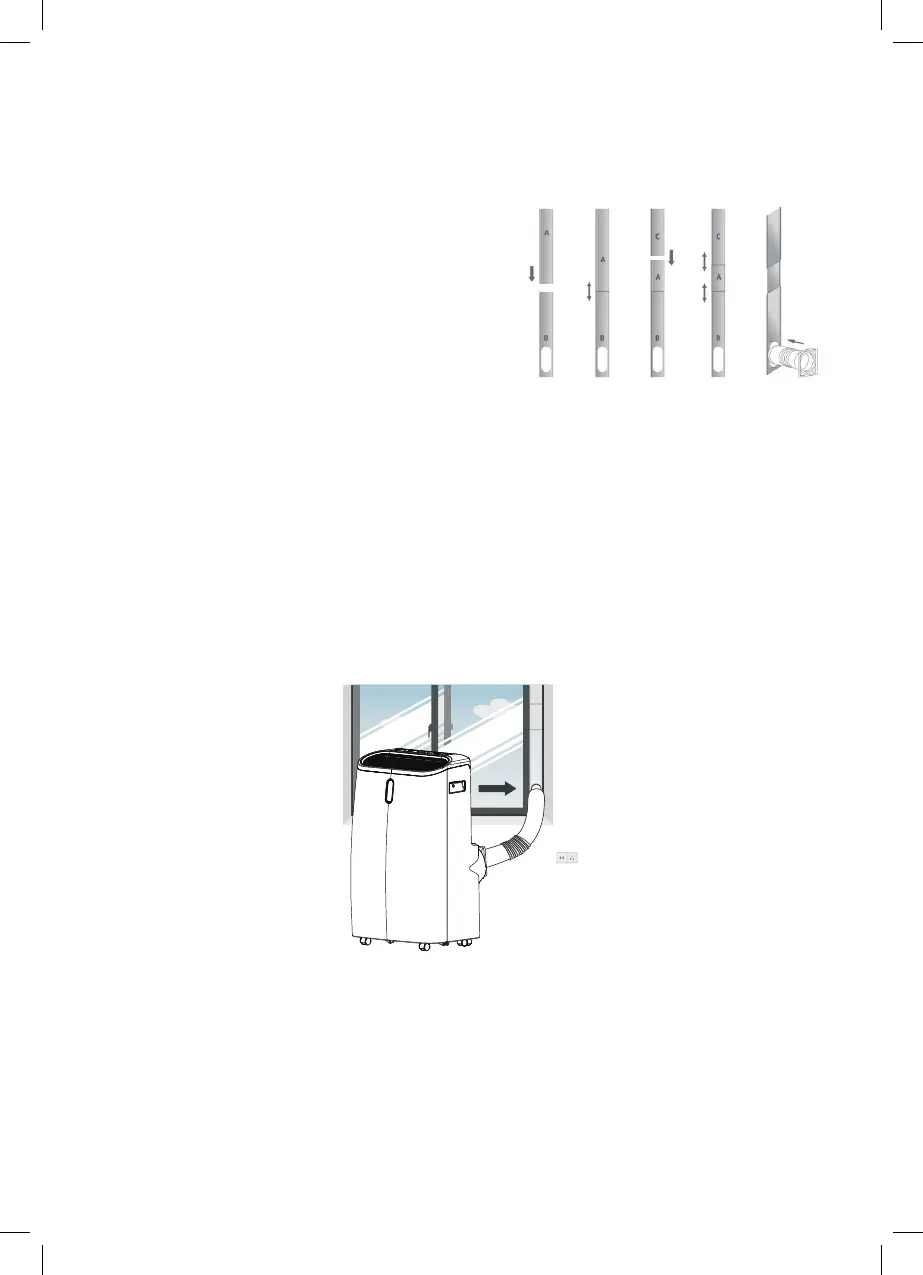

Step 3: Attach the duct to the window kit using the duct

window adaptor.

• Connect the duct to section B.

• After completing the assembly, fit and adjust sections

A and C depending on the length you require, using the

window kit screws provided.

Plate A: 650 mm (L) x 117 mm (W) x 20 mm (D)

Plate B: 650 mm (L) x 110.5 mm (W) x 14.5 mm (D)

Plate C: 510 mm (L) x 117 mm (W) x 20 mm (D)

Please note the diagram is schematic drawing for

reference only. Install the duct via the duct window

adaptor into the hole in section B.

[EN] 11

Step 4: Close the window to secure the window kit in place. It is recommended that the gap

between the window kit and the sides of the window are sealed for maximum eciency.
