4.5 Scenes

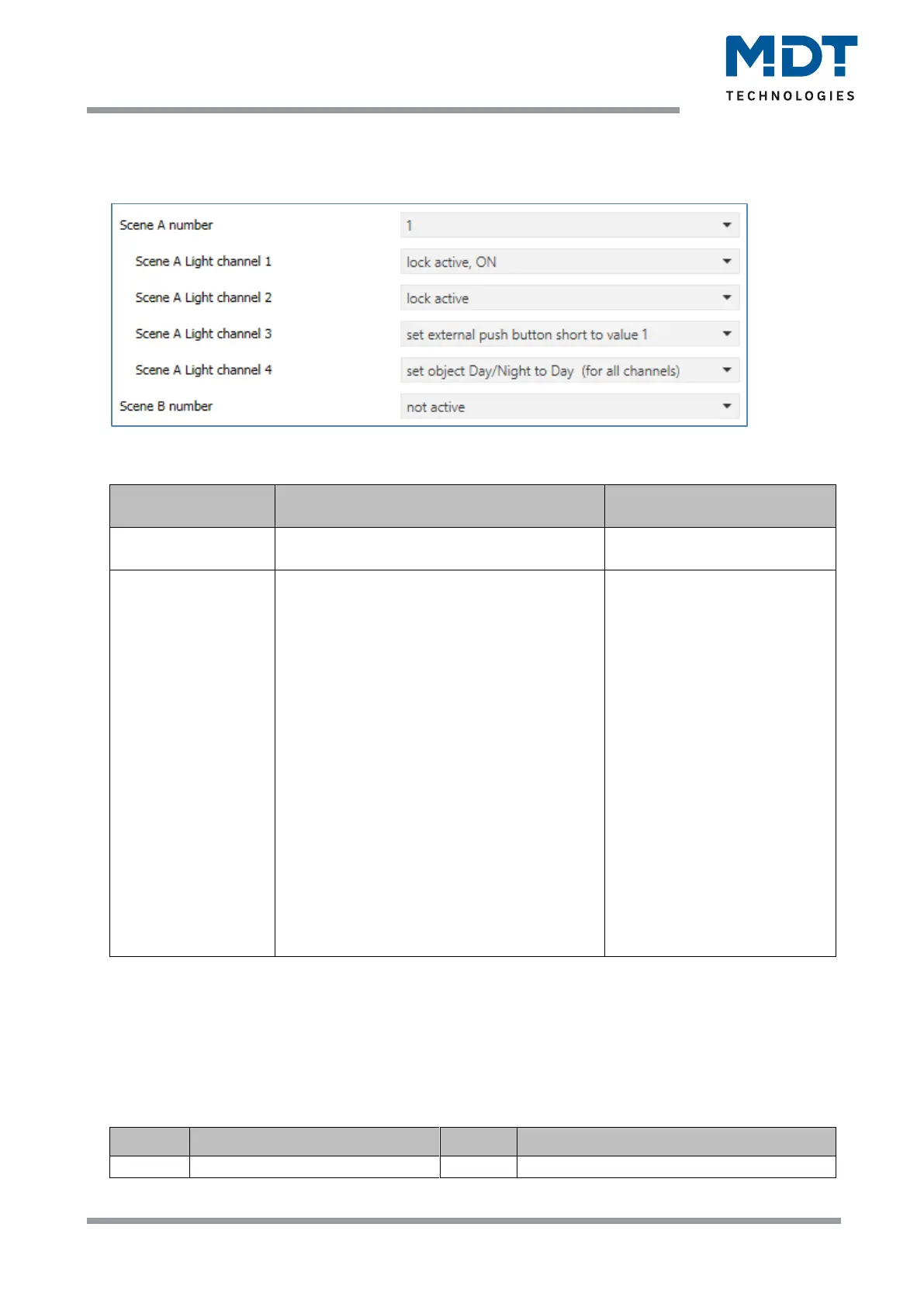

The following picture shows the setting options for scenes:
Figure 29: Settings – Scenes
The following tabel shows the setting options for scenes:
ETS-Text
Dynamic range
[Default value]
Comment
Scene A – H number
not active
1 – 64
Setting of the scene number
Scene A – H Light
channel 1-4
• not active
• lock active, ON
• lock active, OFF
• lock active
• disable lock (last state))
• Disable lock, OFF
• Set external push-button short to
value 1
• Set external push-button short to
value 0
• Set external push-button long
(manual mode) to value 1
• Set external push-button long
(manual mode) to value 0
• Set object Day/Night to Day (for all
channels)
• Set object Day/Night to Night (for all
channels)
Settings of the action to be
performed for calling up a
scene.
Number of light channels
depending on the device type.
"Disable lock, OFF" is only
available with SCN-P360E3.03
from hardware R4.3!
Important:
Actions can only be set for
active light channels!
Table 21: Settings – Scenes
With the scene function, actions for the light channels 1-4 (not HVAC and alarm) can be triggered by
sending the corresponding scene numbers.
Actions can only be configured for light channels that have also been activated via "Selection of
channels"! If, for example, only light channel 1 is active, only "Scene X light channel 1" will be
displayed for the corresponding scene X.
The following table shows the corresponding communication object:
Number
Name
Length
Usage
94
Scene – Input
1 Byte
Call of the scene
Table 22: Communication object – Scene
