Technical Manual
LED-Indicator SCN-LED55.01/SCN-GLED1x.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
30
30
4.5.4 Converter Temperature value->Bit
The following picture shows the available settings for the mode temperature value to Bit:

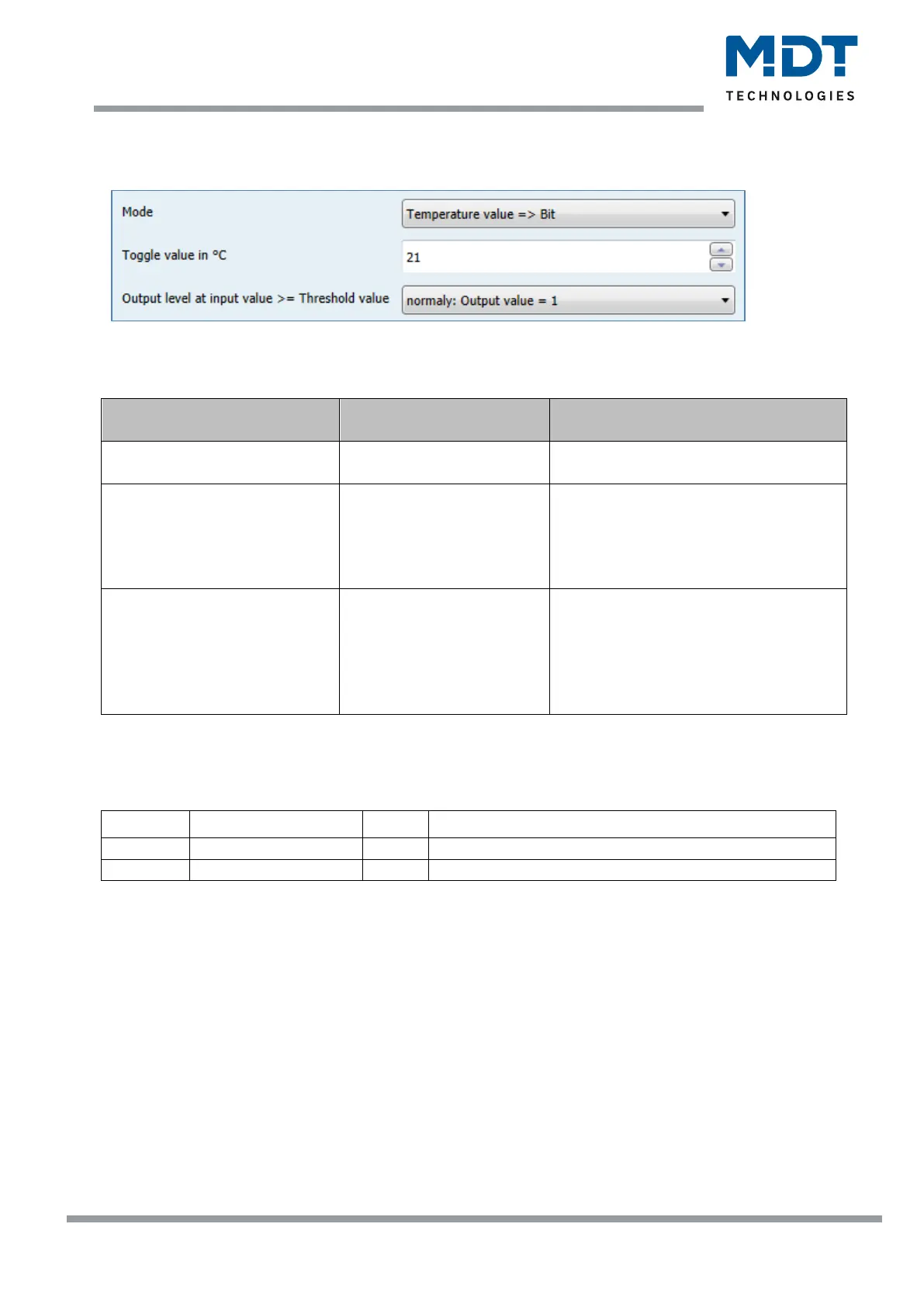

Figure 21: Converter, Mode: Temperature value => Bit
The following table shows the available settings for this mode:
ETS-text
Dynamic range
[default value]
comment
Mode
Temperature value=>Bit
adjusted Mode:
Temperature value =>Bit
Toggle value in °C
0-100
[0]
Setting from when the output is to be
switched.
If the temperature is less than the set
value, the output sends a 1 signal at
normal setting.
Output level at input value =>
Threshold value
▪ normally: Output
value = 1
▪ inverted: Output
value = 0
Inverted/normal output of the output,
normally: Output value 1, if input is
greater than/equal the adjusted
threshold
inverted: Output value 1, if input is
smaller than threshold
Table 27: Converter, Mode: Temperature value => Bit
The following table shows the objects of the converter for the mode Temperature value => bit (here
for the converter module A):
Number
Name
Length
Usage
116
Input value A1
2 Byte
Temperature value, which should be converted
119
output value A1
1 Bit
Converted value
Table 28: Communication object Converter, Mode: Temperature value => Bit
