Technical Manual
LED-Indicator SCN-LED55.01/SCN-GLED1x.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
29
29
4.5.3 Converter 2 Bit->Bit
The following picture shows the available settings for 2 Bit to Bit:

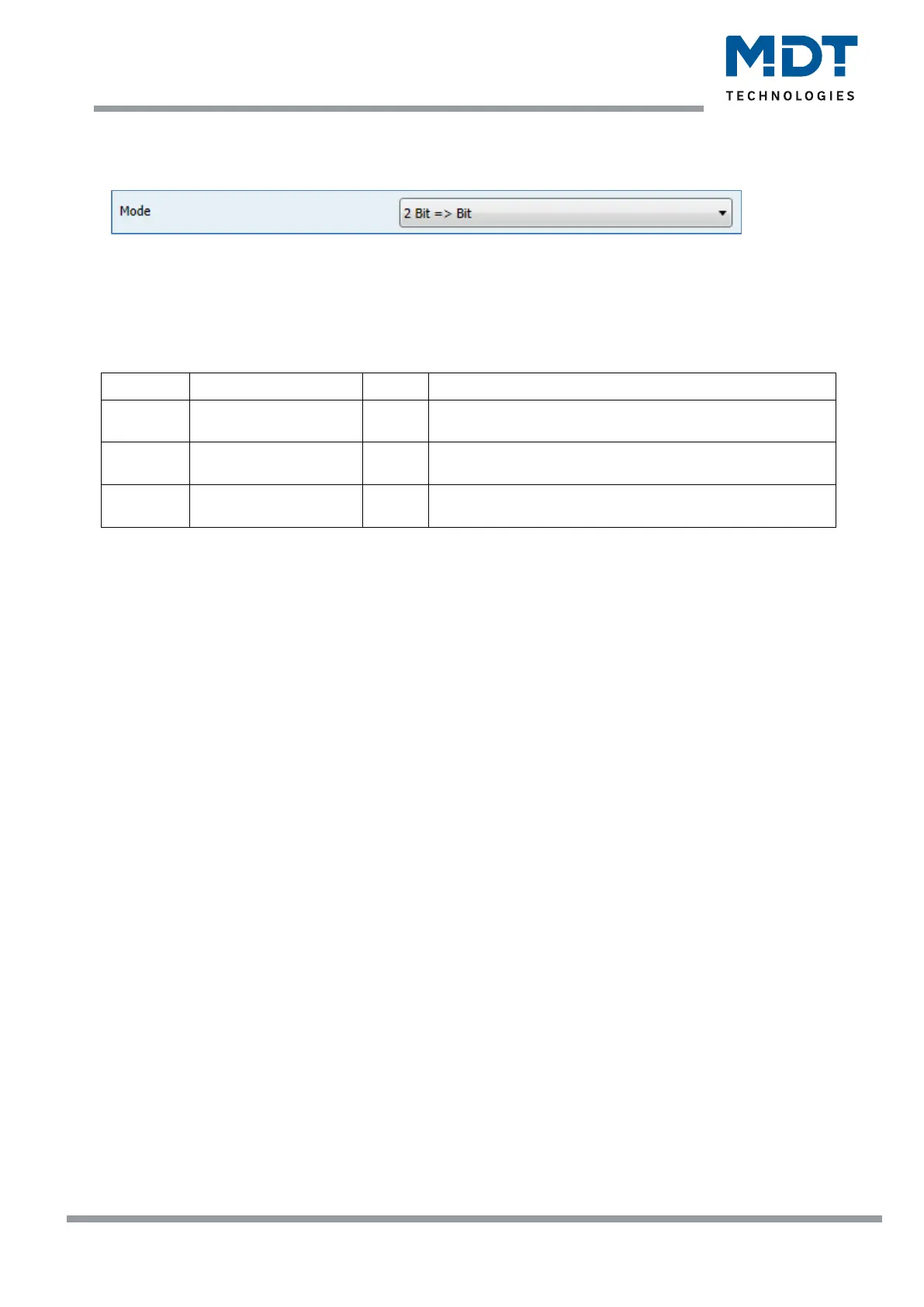

Figure 20: Converter, Mode: 2 Bit=>Bit
The Mode 2Bit=>Bit converts a 2 Bit force control into 2 single Bit-values. Here, the DPT 2 Bit force
control is divided into the Bit-signals Force control ON and Force control OFF. So the Mode has one
input and 2 outputs.
The following table shows the objects of the mode 2Bit => Bit (here at converter module A):
Number
Name
Length
Usage
116
Input A Compelled
guidance
2 Bit
Value of the size 2 Bit which should be converted
119
A1: Compelled
guidance ON
1 Bit
converted value, 1 if force control ON is active
120
A2: Compelled
guidance OFF
1 Bit
converted value, 1 if force control OFF is active
Table 26: Communication object converter, Mode: 2 Bit => Bit
