Technical Manual
LED-Indicator SCN-LED55.01/SCN-GLED1x.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
24
24
The following table shows the object for the logic output, when this is set as “Scene”:
Number
Name
Length
Usage
52
Output Scene
1 Byte
Output of the logic
Table 17: Logic output scene
The following settings are available for a “Value” output:
ETS-text
Dynamic range
[default value]
comment
Object type for logic output
Value
Chosen logic output: Value (1 Byte)
1 Byte-Value
0-255
[0]
Setting which value is sent when
completing the logic function
Table 18: Logic settings - Value
The following table shows the object for the logic output, when this is set as “Value”:
Number
Name
Length
Usage
52
Output value
1 Byte
Output of the logic
Table 19: Logic output value
4.4.3 Submenu logic – logic inputs
Once a logic module has been enabled, a submenu is shown in which the logic inputs can be
parameterized for this module.
The following figure shows this menu:

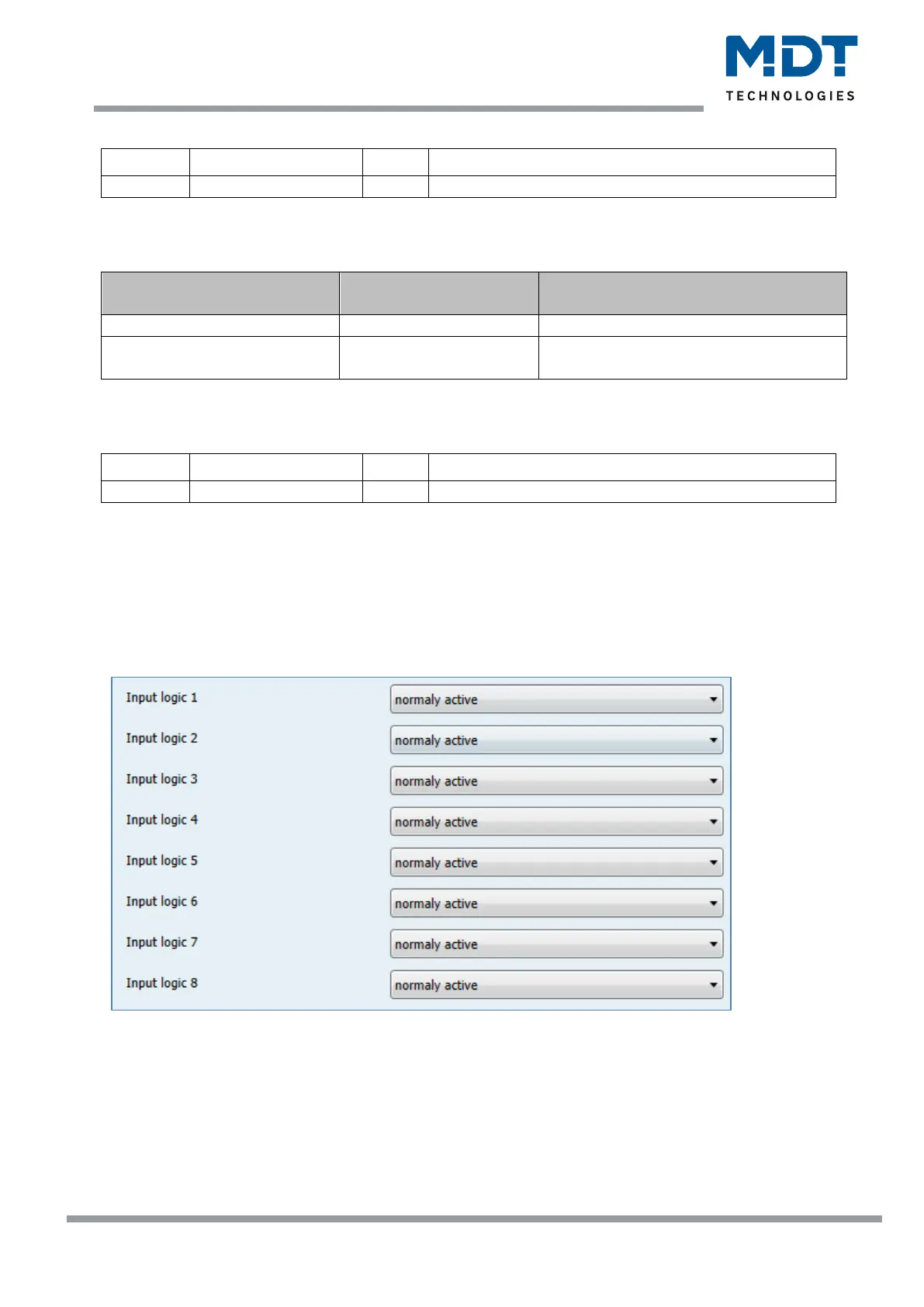

Figure 16: Submenu logic
