4.5.1 PI-control continuous
If the control value is selected as continuous PI control, the following setting options are available
(here: operating mode “Heating”):

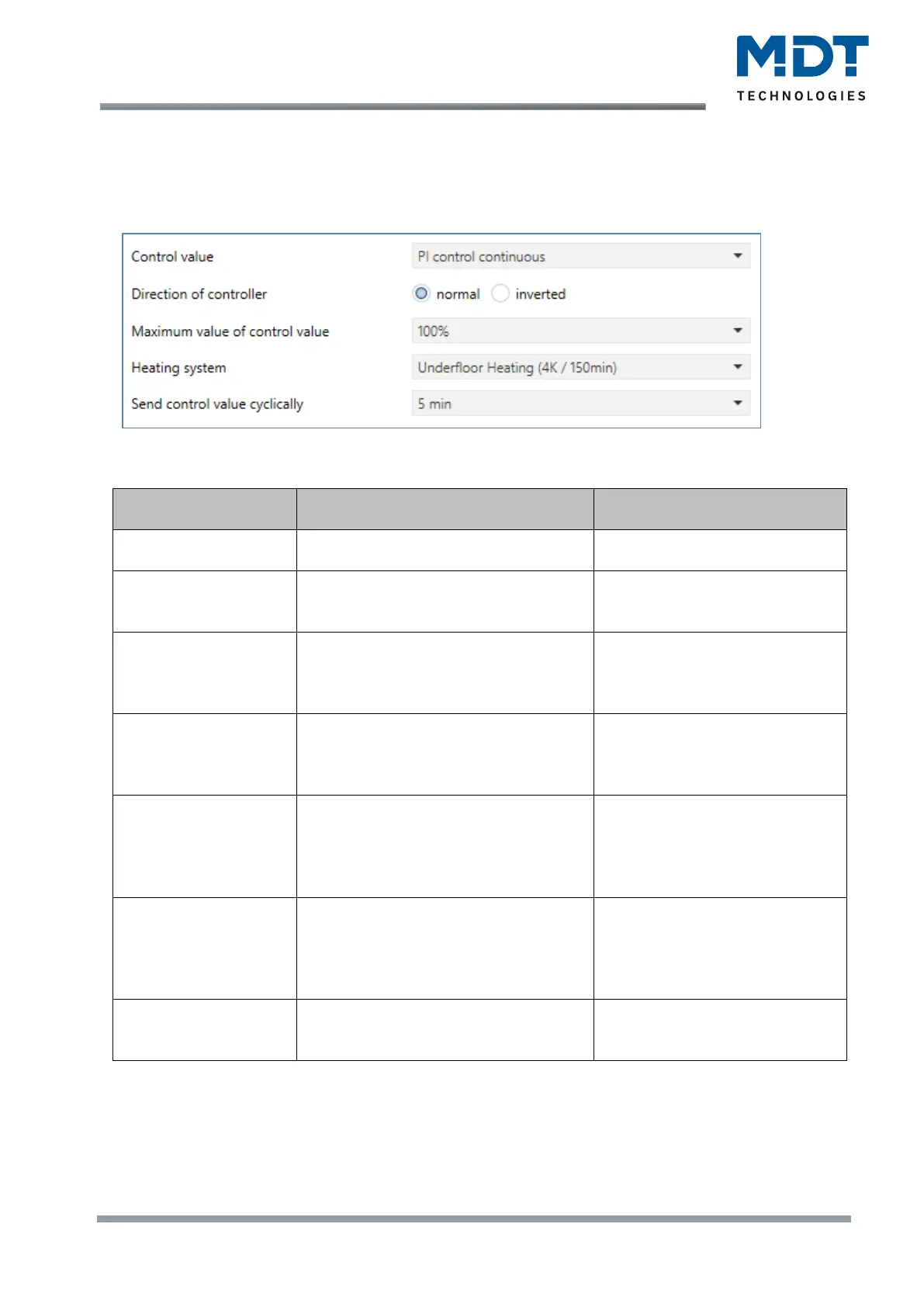

Figure 34: Settings – PI control continuous
The following table shows the possible settings for continuous PI control:
ETS-Text
Dynamic range
[Default value]
Comment
Direction of controller
▪ normal
▪ inverted
Specifies the control behaviour
with rising temperature.
Maximum value of
control value
100%; 90%; 80%; 75%; 70%; 60%;
50%; 40%; 30%; 25%; 20%; 10%; 0%
Specifies the output power of the
control value in maximum
operation.
Heating system
▪ Water heating (4K / 120 min)
▪ Underfloor heating (4K / 150 min)
▪ Split Unit (4K / 60min)
▪ Adjustment via control parameter
Setting of the heating system
used.
Individual parameterization
possible via setting 4.
Cooling system
▪ Split Unit (4K / 60 min)
▪ Cooling ceiling (4K / 150 min)
▪ Adjustment via control parameter
Setting of the cooling system
used.
Individual parameterization
possible via setting 3.
Proportional range
1 K - 20 K
[4 K]
Only visible with setting
"Adjustment via control
parameters".
Here the proportional band can
be set freely.
Reset time
15 min – 240 min
[150 min]
Only visible with setting
"Adjustment via control
parameters".
The integral range can be freely
adjusted here.
Send control value
cyclically
not active, 1 min, 2 min, 3 min, 4 min,
5 min, 10 min, 15 min, 20 min, 30 min,
40 min, 50 min, 60 min
Activation of cyclical sending of
the control value with setting of
the cycle time.
Table 67: Settings – PI control continuous
