Technical Manual
CO2 / VOC Combi Sensor 55 [SCN-CO2MGS.02]
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
50
50
4.4.3 HVAC Status objects
There are several options for visualizing the operating modes.
The following settings are available for the HVAC status objects:

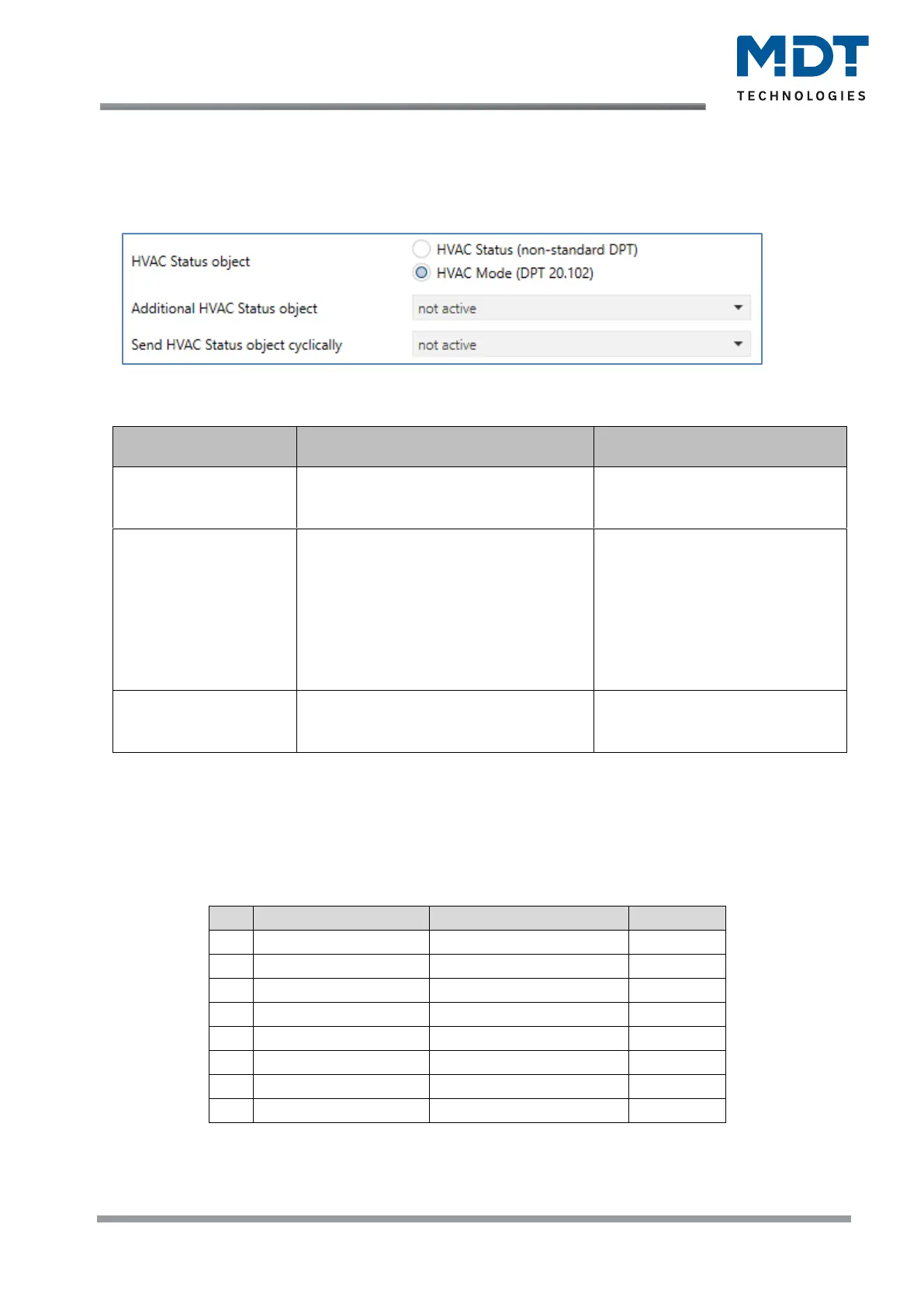

Figure 26: Settings – HVAC Status objects
The following table shows all available settings:
ETS-Text
Dynamic range
[Default value]
Comment
HVAC-Status object
▪ HVAC Status (non-standard DPT)
▪ HVAC Mode (DPT 20.102)
Specify whether the status is to
be output as HVAC Status or
HVAC Mode.
Additional
HVAC Status object
▪ HVAC Status (non-standard DPT)
▪ HVAC Mode (DPT 20.102)
▪ RHCC Status (DPT 22.101)
▪ RTC combined status
(DPT 22.103)
▪ RTSM combined status
(DPT 22.107)
▪ not active
Setting an additional HVAC status
object.
Send HVAC Status
object cyclically
not active
5 min – 4 h
Setting whether and at what
intervals the object is to be sent
cyclically.
Table 42: Settings – HVAC status objects
The HVAC Status (non-standard DPT) according to the KNX specification sends the corresponding
hex value for the currently set operating mode. If several statements apply, the hex values are
added, and the status symbol then outputs the added hex value. The hex values can then be read
out by a visualization.
The following table shows the hex values associated with the individual messages:
Bit
DPT HVAC Status
Hex-value
0
Comfort
1=Comfort
0x01
1
Standby
1=Standby
0x02
2
Night
1=Night
0x04
3
Frost/Heat protection
1= Frost/Heat protection
0x08
4
5
Heating/Cooling
0=Cooling/1=Heating
0x20
6
7
Frost alarm
1=Frost alarm
0x80
Table 43: Assignment – DPT HVAC Status
