4.3.2.5 Specific settings – PI controller
The PI controller, just like the "Step controller as byte", outputs a continuous control value from 0-
100%. In contrast to this, however, the PI controller calculates its value depending on the
difference between the set setpoint and the actual value, considering the set control parameters
"proportional value" and "reset time".
The following illustration shows the specific settings for the PI controller (here the example with
activated "Day/Night changeover"):

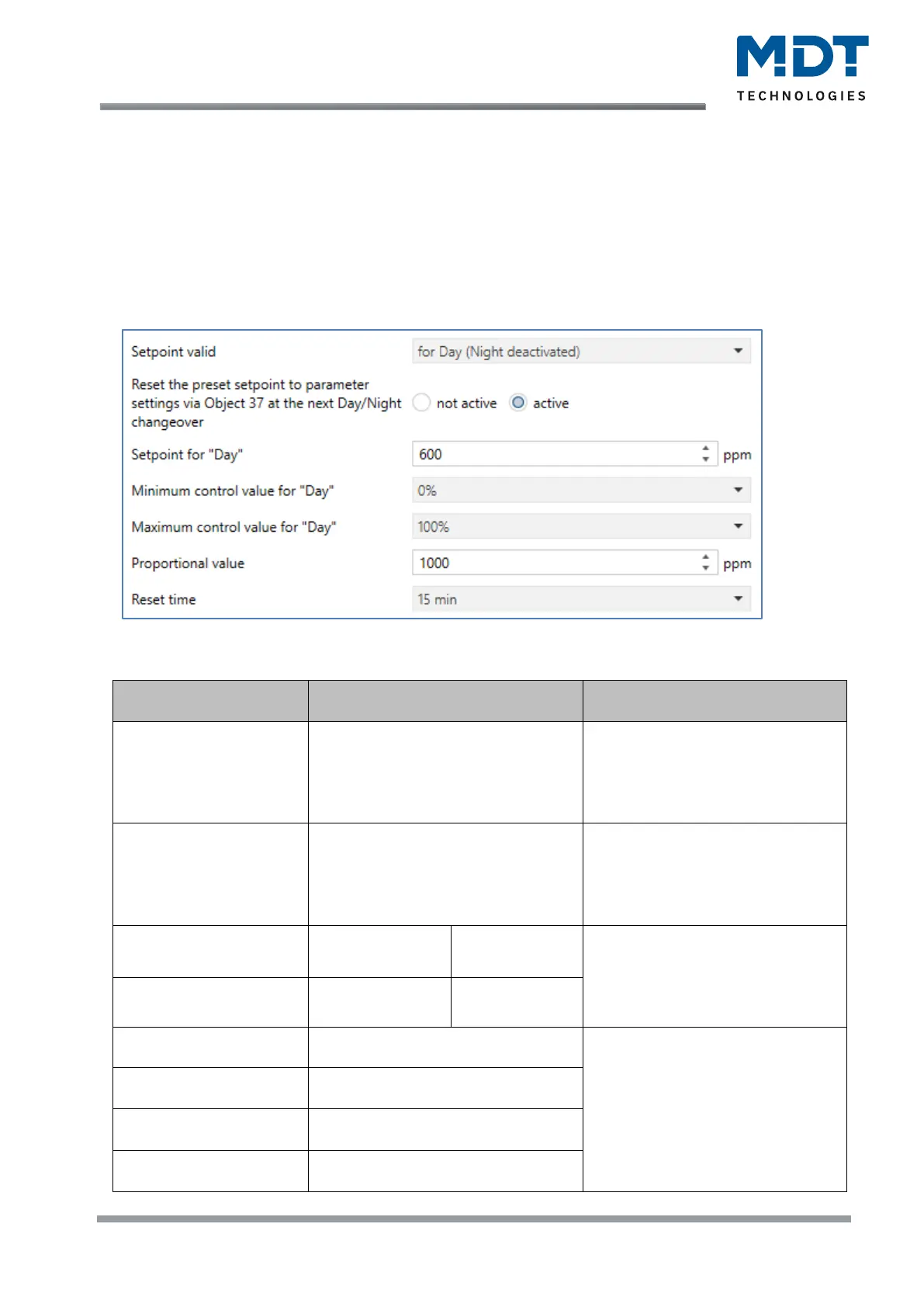

Figure 18: Settings – PI controller
The following table shows the specific settings available for this type of controller:
ETS-Text
Dynamic range
[Default value]
Comment
Setpoint valid
• for Day (Night deactivated)
• for Night (Day deactivated)
• for Day and Night
Setting for which mode the
setpoint is valid and thus the
control is to be activated.
Only available if "Day/Night
switchover" is active.
Reset the preset setpoint
to parameter settings via
object 37 at the next
Day/Night switchover.
• not active
• active
Setting whether the "Day/Night
changeover" should delete a preset
setpoint.
Only available if "Day/Night
switchover" is active.
Setpoint for „Day“
400 … 2000 ppm
[600]
50 … 500
[80]
Setting range of the control values
at which switching is to take place.
Unit (ppm/IAQ) depending on the
selection in "Controller actual
value".
Setpoint for „Night“
400 … 2000 ppm
[700]
50 … 500
[100]
Minimum control value
for „Day”
0 – 100%
[0%]
Defines the minimum or maximum
control value to be sent in "Day" or
"Night" mode.
Maximum control value
for „Day”
0 – 100%
[100%]
Minimum control value
for ”Night”
0 – 100%
[0%]
Maximum control value
for ”Night”
0 – 100%
[30%]
