Technical Manual
Motion Detector/Automatic Switch 55/63 [SCN-BWM55/63(T)(06).x2]
State 07/2025 - Version 1.4
Logic
Four logics can be activated using the AND, OR and XOR functions. Each logic can be linked to up to two
internal and up to four external 1 Bit objects. Switching commands, scenes, values or 2 Bit priority objects
can be sent as output objects.
Updateable
If necessary, the device can be updated using the “MDT Firmware Update App”.
Long Frame Support
The device supports “long frames” (longer telegrams). These contain more user data per telegram, which
signicantlyreducestheprogrammingtime.

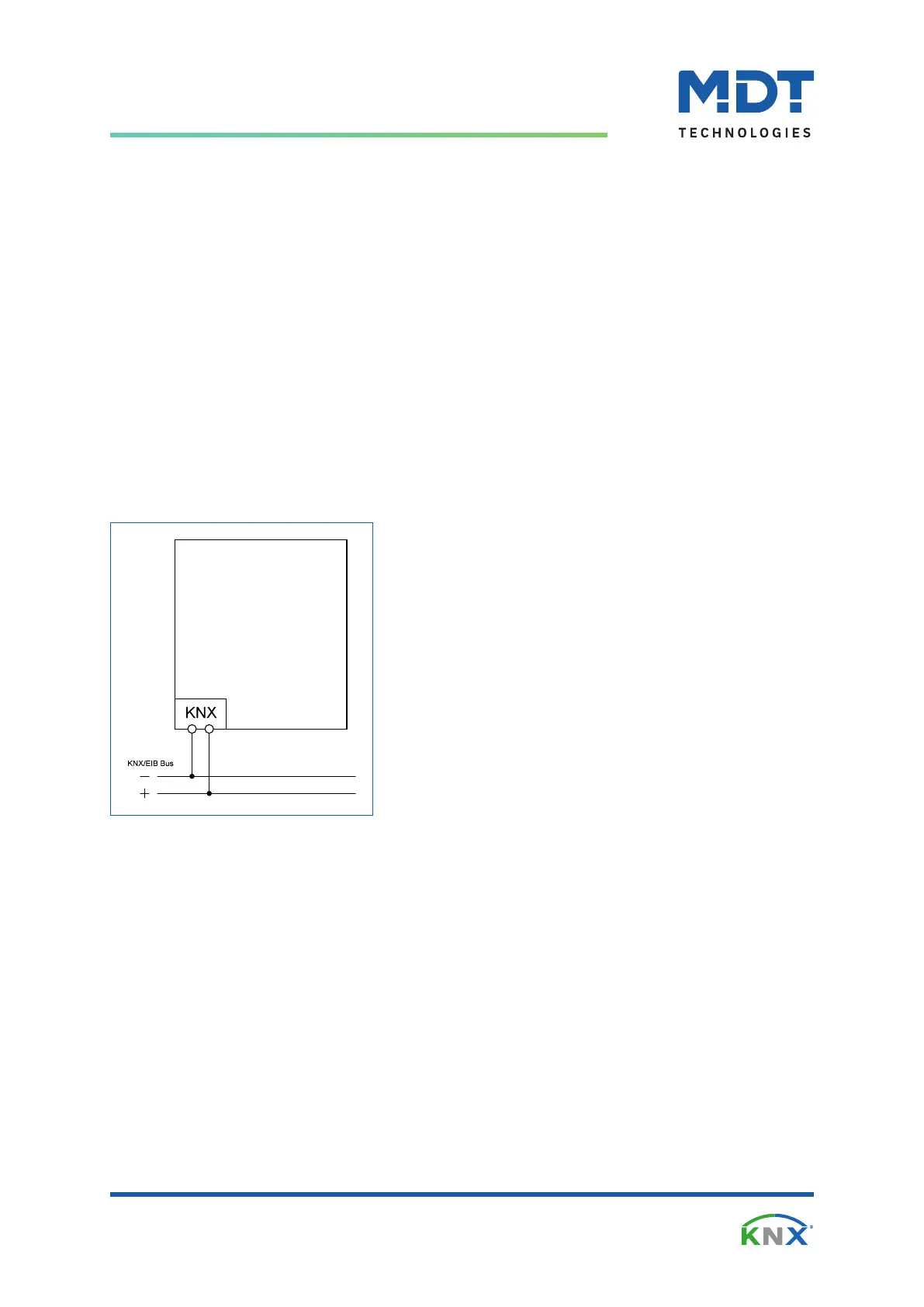

2.3 Wiring diagram
Thefollowinggureshowsanexemplarywiringdiagram:
Figure 1: Wiring diagram
