Technical Manual
Motion Detector/Automatic Switch 55/63 [SCN-BWM55/63(T)(06).x2]
State 07/2025 - Version 1.4
4.2.1.8.3 Half automatic without night light

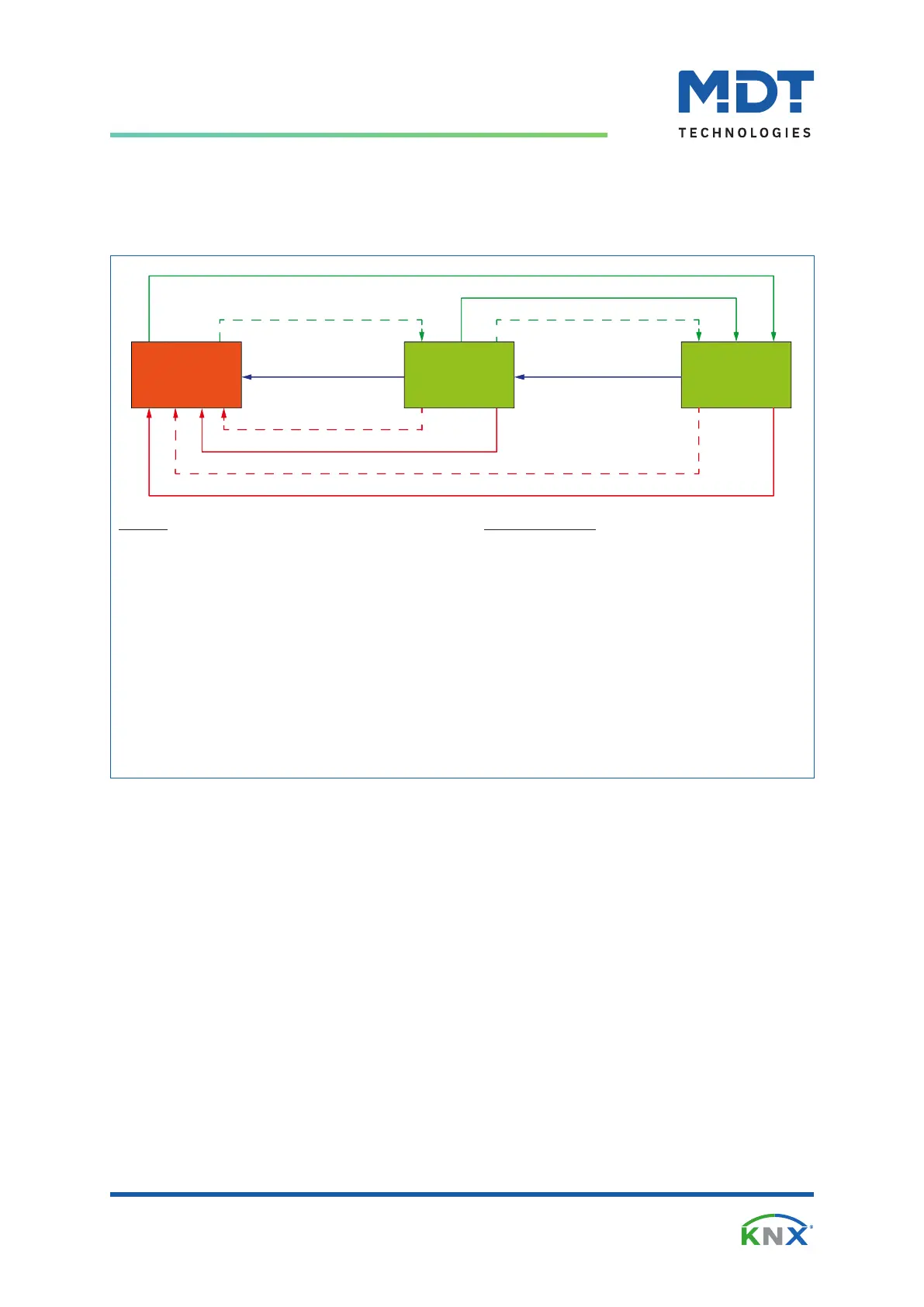

Figure 5: Process diagram – Half automatic without night light
In the operating mode “half automatic”, the motion detector has to be switched on manually via the object
“external push button short”. The light channel is automatically switched off again after the follow-up time
(= no movement detection during the set follow-up time) has elapsed.
The light channel can also be overwritten via the “external button short” object. The motion detector can
be switched to manual mode by pressing twice.
States:
OFF: The output is switched OFF and must be
switched ON manually.
Auto mode ON: The output is switched ON, the
device switches OFF automatically at the end of
the follow-up time.
Manual mode ON: The output is switched ON, the
device has been switched ON manually.
State transitions:
Button OFF: Sending an OFF telegram to object
“External button short”.
Button ON: Sending an ON telegram to object
“External button short”.
Follow up time: Expiry of the follow-up time set in
the light channel.
Fallback time / Presence end: Expiry of the fallback
time set in the general settings for the external
button input.
Button long: Activates/deactivates manual mode.
“Buttonlong“→„0“
“Buttonshort“→„0“
„Output 1“ → „0“
“Buttonlong“→„0“
“Buttonlong“→„1“
“Buttonlong“→„1“
Auto mode
„Output 1“ → „1“
“Buttonshort“→„1“
“Buttonshort“→„0“
Follow-up time Fallback time / Presence end
Manual mode
„Output 1“ →„1“
“Buttonshort“→„1“
