MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Telephone: +49 (0) 2263 880 · knx@mdt.de · www.mdt-group.com
32 / 67
Technical Manual
Motion Detector/Automatic Switch 55/63 [SCN-BWM55/63(T)(06).x2]
State 07/2025 - Version 1.4
4.2.1.8 Process diagrams
4.2.1.8.1 Fully automatic without night light

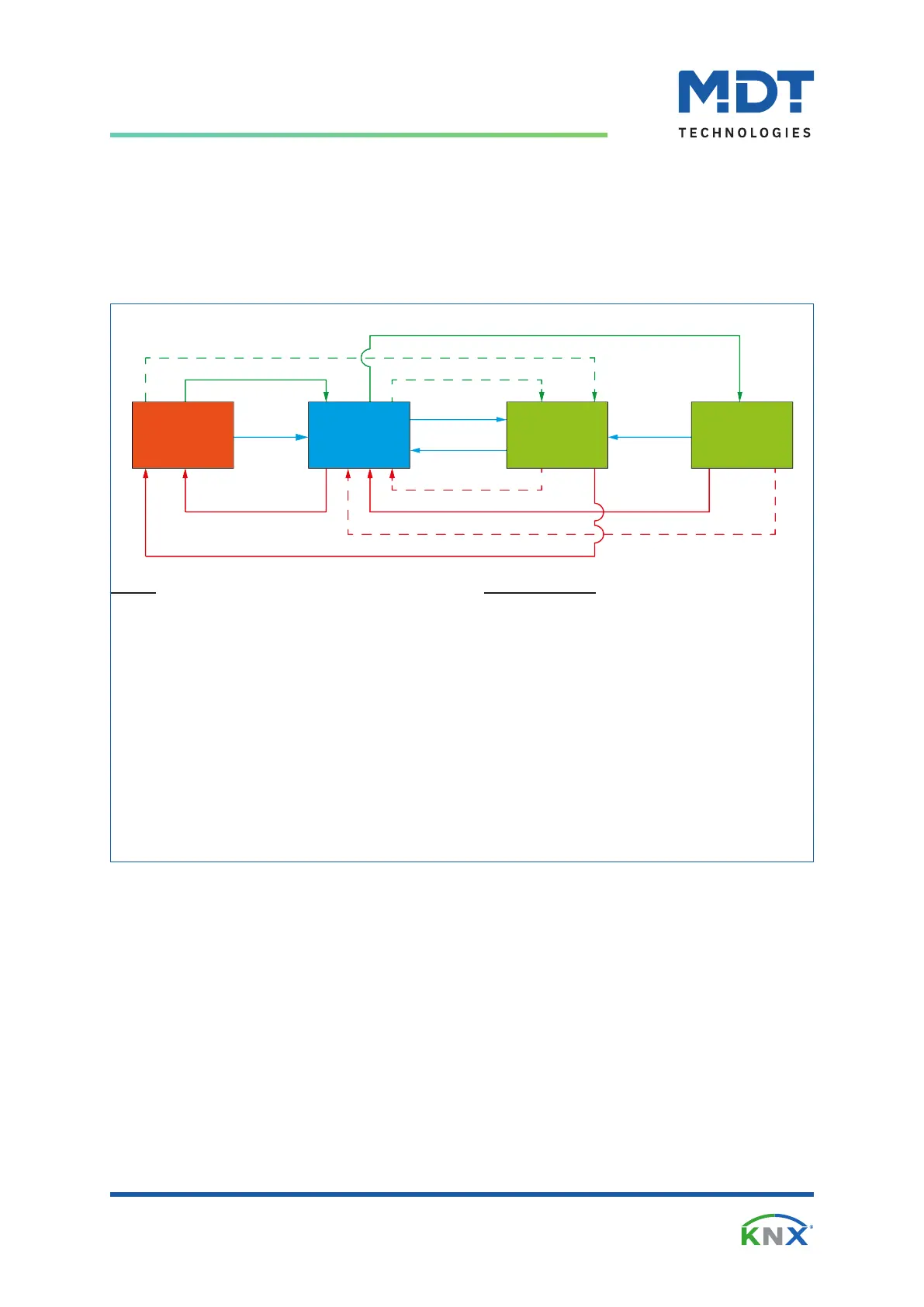

Figure 3: Process diagram – Fully automatic without night light
In the operating mode “Fully automatic” the Motion Detector switches on automatically when motion is
detected. The object “External push button short” can be used to overwrite the automatic mode and force
the device into manual mode. From this mode, the detector automatically returns to auto mode according
to the settings in the menu “General settings - Fallback for external push button long”.
If the output of the light channel is switched on (automatic mode - ON or manual mode - ON) and the light
channel is switched off via the object “External push button short”, then the light channel is blocked for 10
seconds for motion detection in order to leave the room and prevent brief restart.
The detector can be switched to manual mode via the object “External push button long”. From this mode,
the detector automatically returns to auto mode according to the settings in the “General settings -
Fallback for external push button long”.
States:
Manual mode, OFF: The output is switched OFF, the
device has been switched OFF manually.
Auto mode, Standby: The output is switched OFF,
the device switches ON automatically when motion
is detected.
Auto mode, ON: The output is switched ON, the
device switches OFF automatically when the
follow-up time expires.
Manual mode, ON: The output is switched ON, the
device has been switched ON manually.
State transitions:
Button OFF: Sending an OFF telegram to object
“External button short”.
Button ON: Sending an ON telegram to object
“External button short”.
Motion: Presence detector detects motion.
Follow-up time: Expiry of the follow-up time set in
the light channel.
Fallback time / Presence end: Expiry of the
fallback time set in the general settings for the
external button input.
Button long: Activates / deactivates manual mode.
“Buttonshort“→„1“
“Buttonlong“→„1“
“Buttonlong“→„1“
“Buttonshort“→„1“
“Buttonshort“→„0“
“Buttonshort“→„0“
“Buttonlong“→„0“
“Buttonlong“→„0“
“Buttonlong“→„0“
„Output 1“ → „0“
Manual mode
„Output 1“ →„1“
Auto mode
„Output 1“ → „1“
Auto mode
“Output 1” → “0”
Fallback time/
Presence end
Motion
Follow-up time
Fallback time/
Presence end
