Technical Manual
Glass Push-button II Smart & Push-button Smart 86 [Series .02]
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
81
81
4.4.12 HSV colour control
Single-Button function
Two-Button function
With the HSV colour control, LED dimmers with RGB/RGBW function can be controlled and their
status can be displayed on the display.
The following figure shows the available settings:

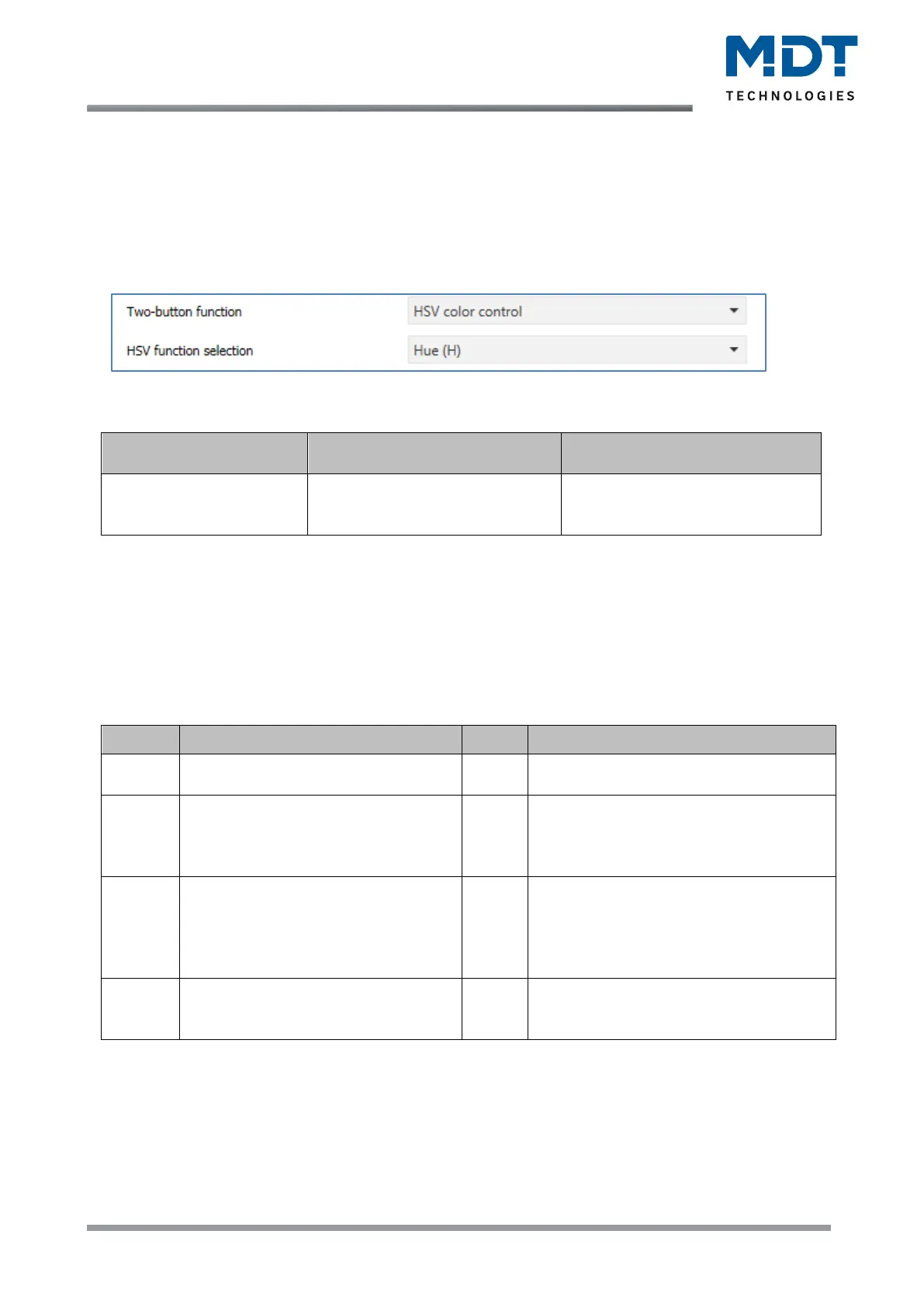

Figure 43: Settings – HSV colour control
The table below shows all available settings:
ETS-Text
Dynamic range
[Default value]
Comment
HSV function selection
▪ Hue (H)
▪ Saturation (S)
▪ Value (V)
Setting of the function to be
controlled
Table 61: Settings – HSV colour control
The HSV colour control can control the 3 parameters (hue, saturation, brightness) of the HSV
chromatic circle. A 4-bit dimming command and a switching command are available for the control.
The switching command is used to switch the LED strip on/off. With the 4-bit dimming command, a
cycle through the HSV chromatic circle can be performed. This is a start-stop dimming, that means as
soon as the dimming function becomes active, it will move inside the chromatic circle until the button
is released. After releasing, a stop telegram is sent which terminates the dimming process.
The following table shows the available communication objects:
Number
Name/Object Function
Length
Usage
0
F1:
F1/2: – HSV control On/Off
1 Bit
Only for subfunction “Value”
Switch command for colour control
1
F1:
F1/2: –
Change HSV Hue (H)/ Saturation (S)/
Value (V) relative
4 Bit
Cycle through the HSV chromatic circle
2
F1: –
Status for toggle
1 Bit
Only for single-button function and
subfunction “Value”.
Receiving the status with current
information about the status of the
actuator to be controlled
3
F1:
F1/2: –
Status for Hue/ Saturation/ Value
1 Byte
Receiving the state of the HSV chromatic
circle
Table 62: Communication objects – HSV colour control
