Technical Manual
Glass Push-button II Smart & Push-button Smart 86 [Series .02]
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
46
46
Note: For details on the Innovative group control, see 4.4.4 Switch – General.
For details on the configuration of the symbols, see 4.4.4.5 Presentation (Symbols).
The following table shows the available communication objects:
Number
Name/Object Function
Length
Usage
0
F1: – Toggle
1 Bit
Toggle function of the button.
1
F1: – Status for toggle
1 Bit
Status to update display/symbol on the push-
button. Must be connected to the status of the
actuator to be switched
2
F1 Group long: – Toggle
1 Bit
Toggle function of the button with long
keystroke
4
F1 Group extra long: – Toggle
1 Bit
Toggle function of the button with extra long
keystroke
Table 29: Communication objects – Single-button function: Switch - Subfunction: Toggle
4.4.4.4 Subfunction: Send Status
Single-Button function
Slap-Button
With this function, fixed values can be sent for a pressed button (rising edge) and a released button
(falling edge).
The following picture shows the available settings:

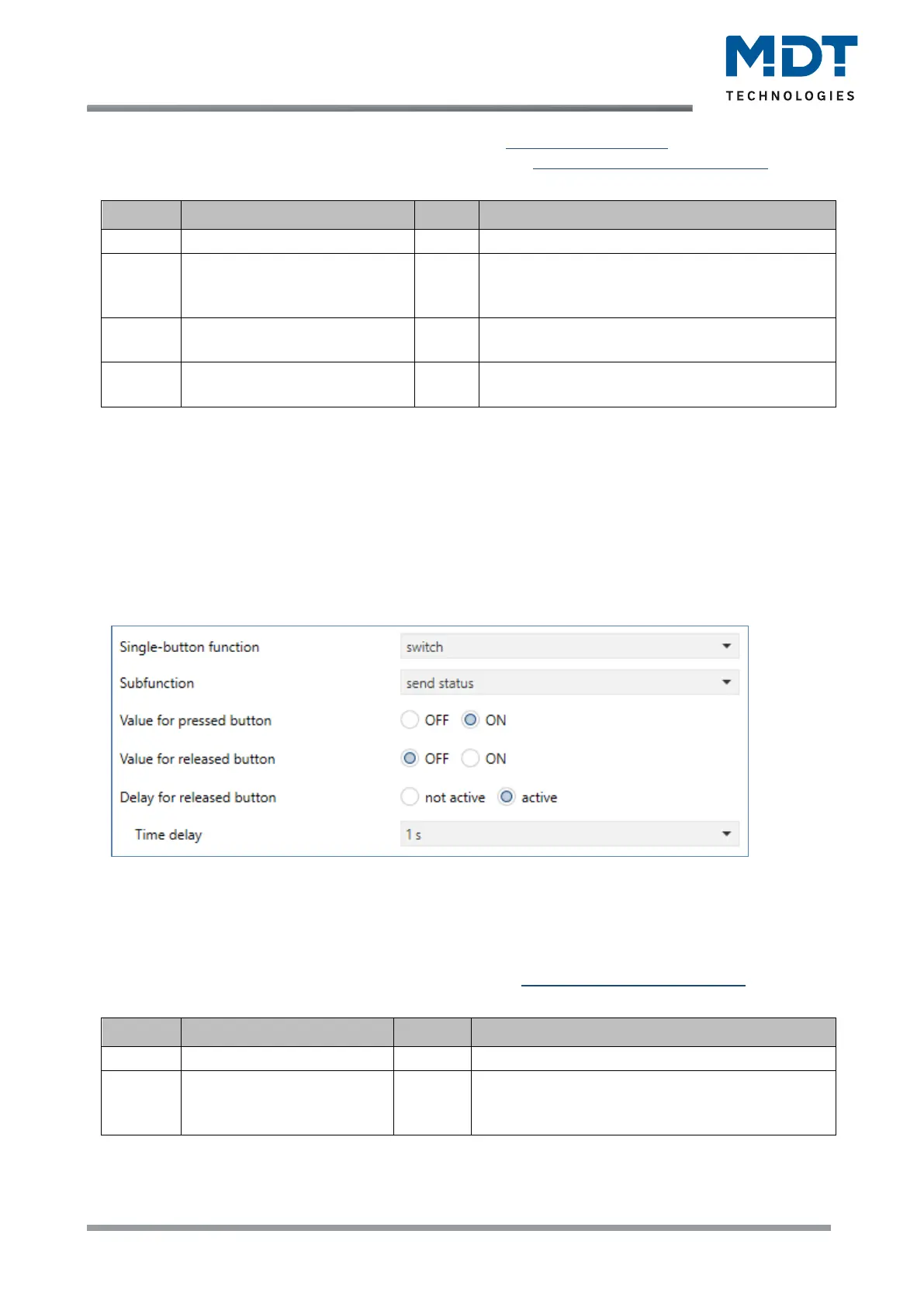

Figure 23: Settings – Single-button function: Switch - Subfunction: Send status
In addition, it is possible to set a delay for the released button. This means that the value for the
pressed button is sent immediately, but the value for the released button is sent only after the
respective set delay.
Note: For details on the configuration of the symbols, see 4.4.4.5 Presentation (Symbols).
The following table shows the available communication objects:
Number
Name/Object Function
Length
Usage
0
F1: – Send status
1 Bit
Switching function of the button
3
F1: – Status for display
1 Bit
Status to update the display/symbol on the key.
Must be connected to the status of the actuator to
be switched
Table 30: Communication objects – Single-button function: Switch - Subfunction: Send status
