Technical Manual
Glass Push-button II Smart & Push-button Smart 86 [Series .02]
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
44
44
With the “Innovative group control”, it is possible to send to up to three different group addresses
by touching/pressing a button for a longer time. The time for the long and the extra-long keystroke is
set individually.
With the single-button function, the value defined in the sub-function is always sent for the long and
the extra-long group.
With the two-button function, the transmission behaviour for the long and the extra-long group can
be set individually.
Note: All groups are always sent one after the other.
Example:
Time long key press: 2 s
Time extra long key press: 4 s
If the key is now pressed for at least 4 seconds, the first value is transmitted immediately, after 2
seconds the value for "group long" and after 4 seconds the value for "group extra long".
4.4.4.1 Two-button function – Switch
Two-Button function
With the two-button function, the respective value (ON/OFF) can be assigned to the left and right
button. Thus, the left or right button sends the set, fixed value. The following picture shows the
available settings for the two-button function “switch”:

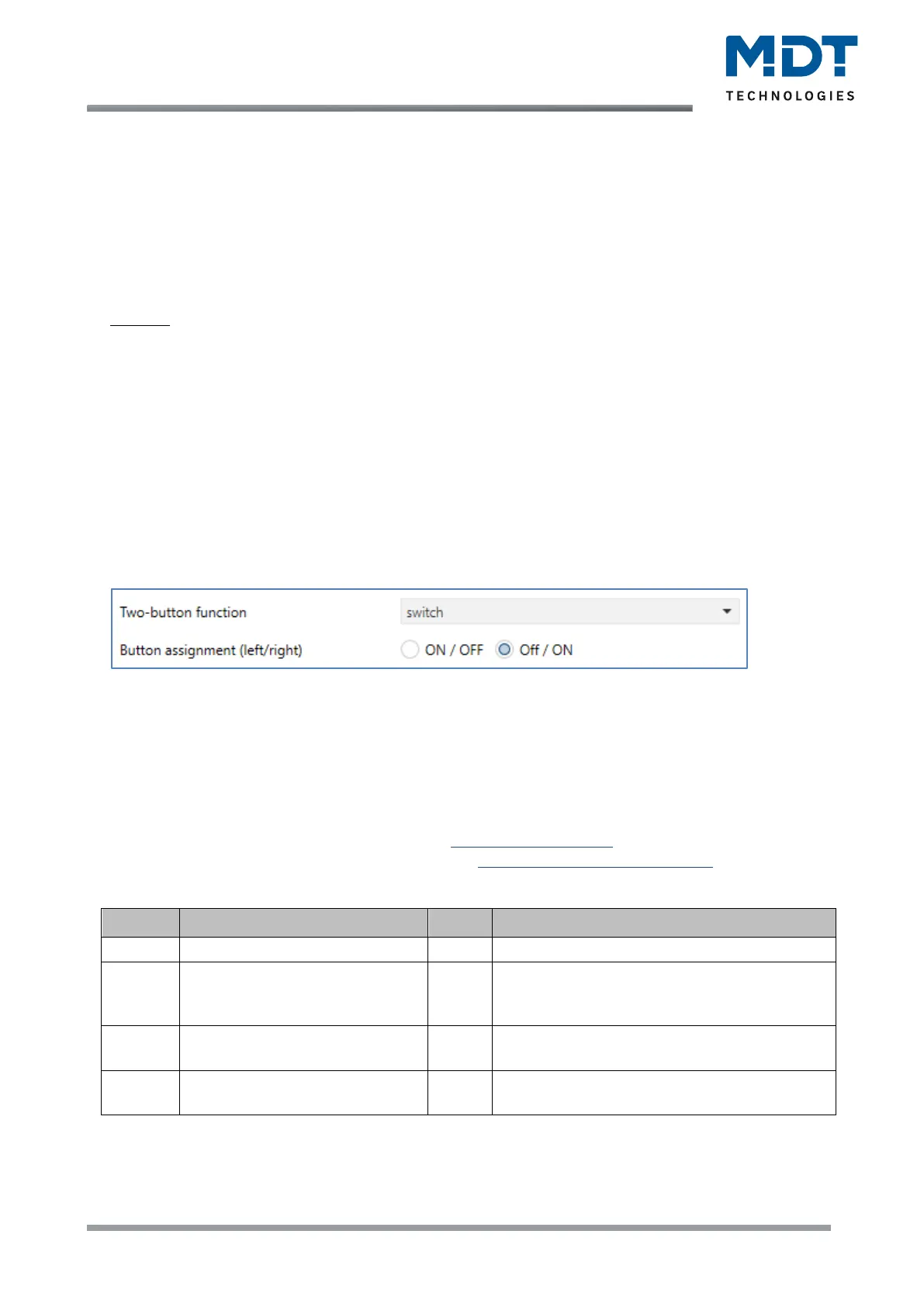

Figure 20: Settings – Two-button function: Switch
Button assignment ON/OFF: The left button sends the value ON, the right button sends the value
OFF.
Button assignment OFF/ON: The left button sends the value OFF, the right button sends the value
ON.
Note:
For details on the Innovative group control, see 4.4.4 Switch – General.
For details on the configuration of the symbols, see 4.4.4.5 Presentation (Symbols).
he following table shows the available communication objects:
Number
Name/Object Function
Length
Usage
0
F1/2: – Switch
1 Bit
Switching function of the buttons
1
F1/2: – Status for display
1 Bit
Status to update display/symbol on the push-
button. Must be connected to the status of the
actuator to be switched
2
F1/2 Group long: – Switch
1 Bit
Switching function of the buttons with long
keystroke
4
F1/2 Group extra long: – Switch
1 Bit
Switching function of the buttons with extra
long keystroke
Table 27: Communication objects – Two-button function: Switch
