Technical Manual – Push Button Smart 55/63
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
67
67
4.6.11 Dimming
Single-Button function
Two-Button function
The dimming function can be used to control dimming actuators.
The following figure shows the available settings (here: for the two-button function):

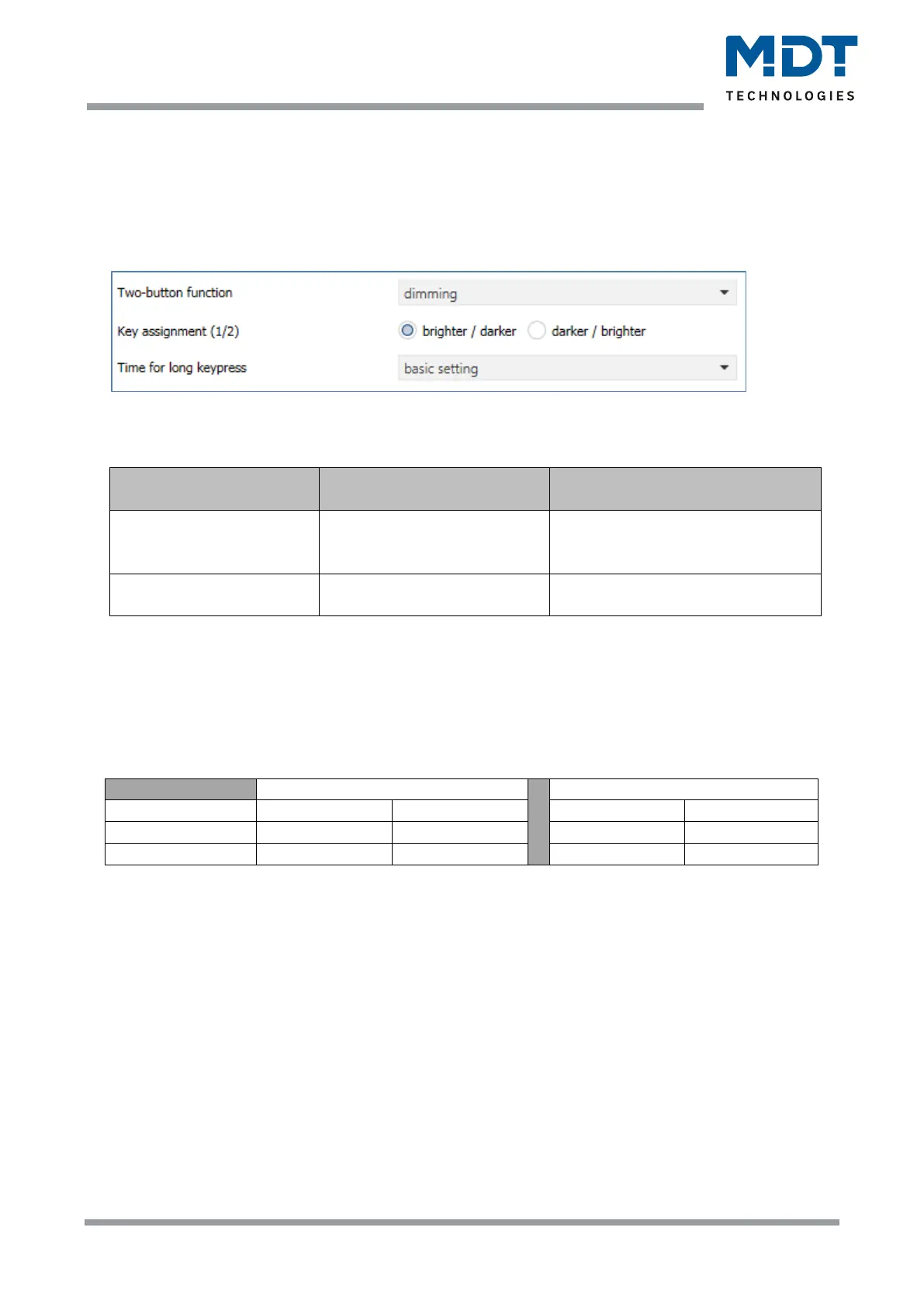

Figure 35: Setting – Dimming
The following table shows the available settings:
ETS-Text
Dynamic range
[Default value]
Comment
Key assignment (1/2)
▪ brighter/darker
▪ darker/brighter
Only with two-button function!
Setting the key assignment for the
direction (brighter/darker)
Time for long keypress
Basic setting
0,1 s – 30,0 s
Setting an individual time from
when a long key press is detected
Table 56: Setting – Dimming
If a push-button is parameterised as a dimming function, two communication objects appear for this
push-button, firstly the function for a short push-button action, the "Dimming On/Off" switch object,
and secondly the function for a long push-button action, the dimming object "Dimming relative".
The two-pushbutton function dimming can be parameterised either as brighter/darker or as
darker/brighter. The relationships are shown in the following table:
Table 57: Functionality – Two-button Dimming
With the one-button function dimming, the direction (brighter/darker) is reversed depending on the
communication object "Status for toggle".
The dimming function is a start-stop dimming function, i.e. as soon as the dimming function becomes
active, a brighter or darker command is assigned to the input until it is released. After the command
is released, a stop telegram is sent which ends the dimming process.
Function brighter/darker
Function darker/brighter
Button - Input
Button 1
Button 2
Button 1
Button 2
Dimming function
brighter
darker
darker
brighter
Switching function
ON
OFF
OFF
ON
