Technical Manual – Push Button Smart 55/63
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
36
36
4.6.4.4 Subfunction: Send Status
Single-Button function
With the single button function: switch - subfunction: send status - fixed values can be sent for a
button pressed (rising edge) and a button released (falling edge). This function can be used to
implement triggering applications.
The following figure shows the available settings:

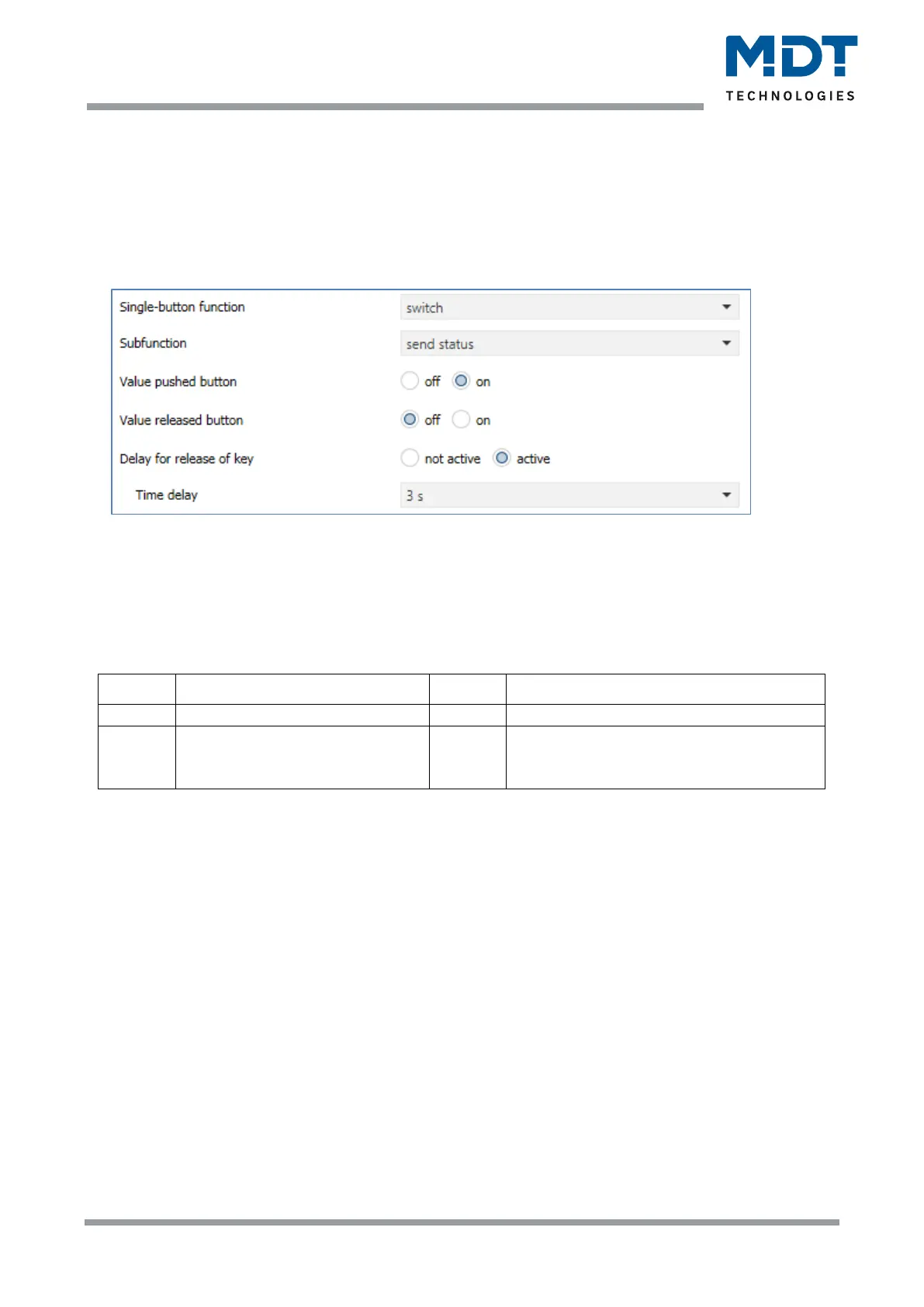

Figure 17: Settings – Single-button function: Switch - Subfunction: Send Status
It is also possible to set a delay for the released button. This means that the value for the pressed
button is transmitted immediately but the value for the released button is transmitted only after the
delay set accordingly.
The following table shows the available communication objects:
Number
Name
Length
Usage
0
Push button 1 – Send Status
1 Bit
Switching function of the button
3
Push button 1 – Status for display
1 Bit
Status to update the display/symbol on the
key. Has to be connected to the status of
the actuator to be switched
Table 26: Communication objects – Single-button function: Switch - Subfunction: Send Status
