MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Telephone: +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
10 / 63
Technical Manual
Push Button Lite 55/63/Basic [BE-TALxxxx.x1]
State 09/2024 - Version 1.4
2.4.2 Push Button 55 Lite Basic

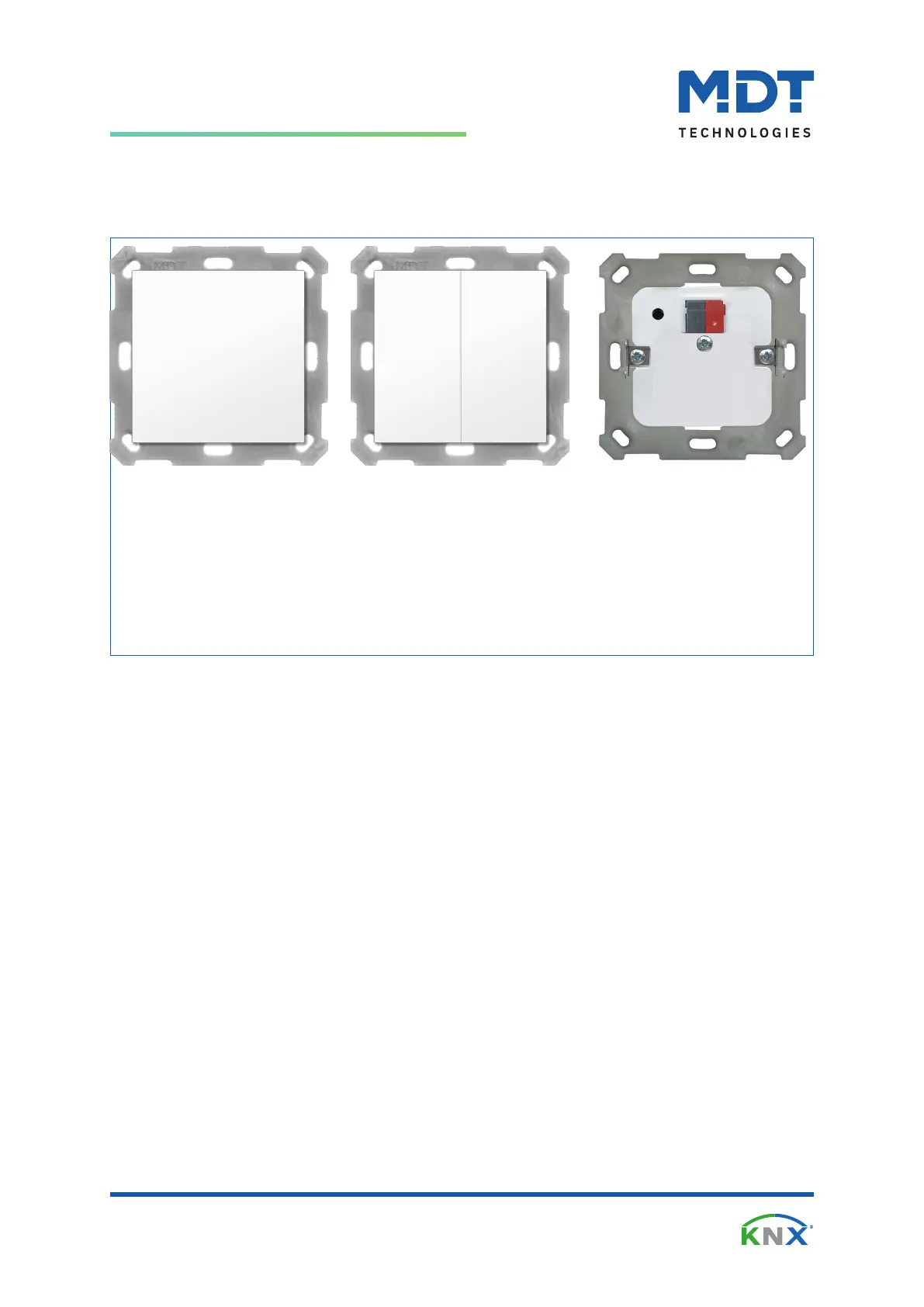

Figure 3: Structure and Handling – Push Button Lite 55 Basic
2.5 Commissioning
1. Wire the device according to the connection diagram.
2. Connect the interface to the bus.
3. Switch on bus voltage.
4. Press the programming button on the device.
BE-TAL55/63xx.x1: The status LEDs flash red alternately at top and bottom.
BE-TAL55Bx.01: The red programming LED lights up.
5. Set and programme the individual address in the ETS.
BE-TAL55/63xx.x1: The status LEDs turn off.
BE-TAL55Bx.01: The red programming LED turn off.
6. Congure and programme the settings in the application programme.
1 – Operating buttons
2 – Programming LED
3 – Programming Button
4 – KNX Bus connecting terminal
Structure BE-TAL55B1.01
1
1
Structure BE-TAL55B2.01
1
1
1
1
Back side BE-TAL55B1.01
2 3 4
