4.4.3.10 External function – Basic function: Send value
The following figure shows the available settings:

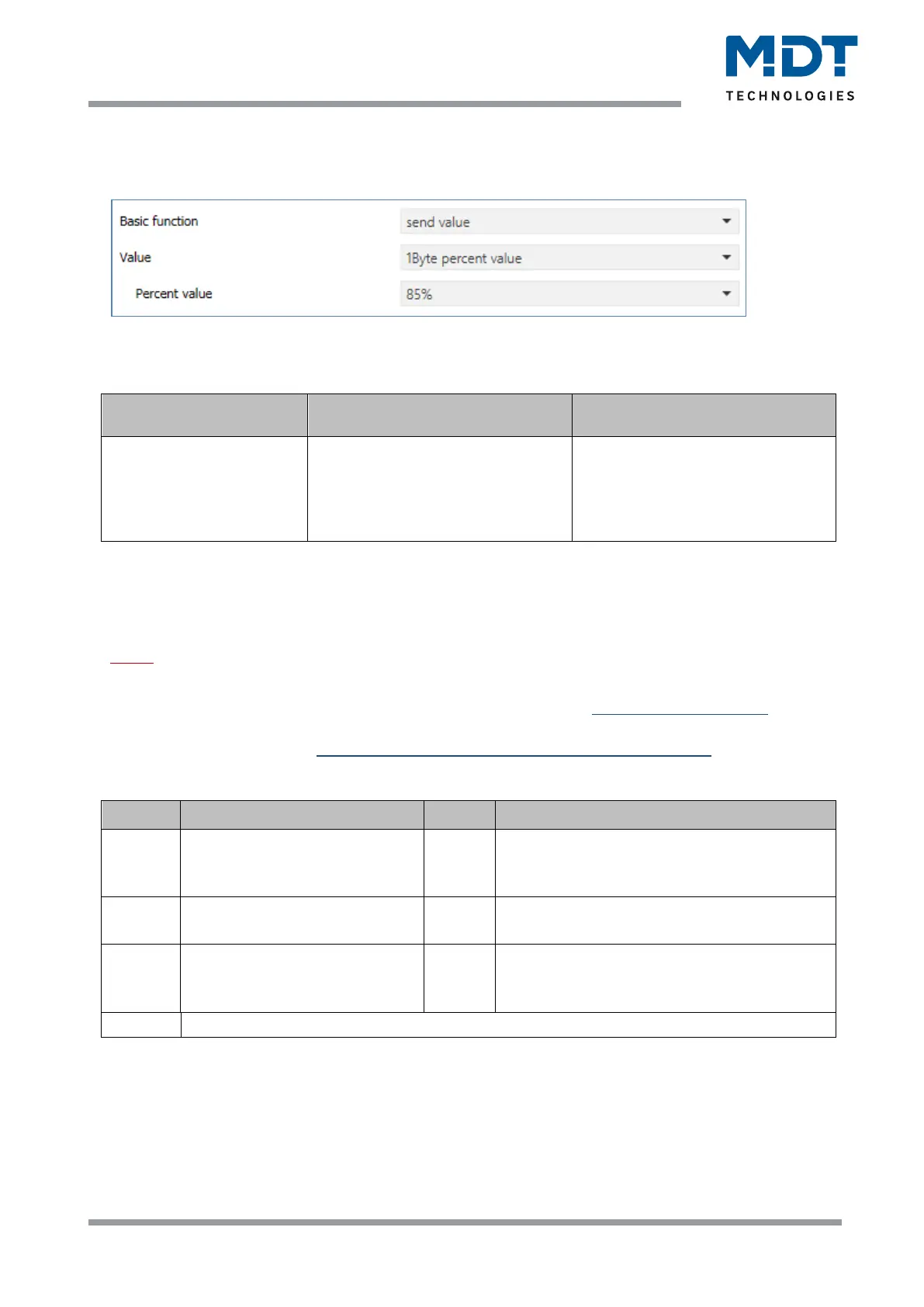

Figure 28: Settings – Basic function: Send value
The following table shows the available settings:
ETS-Text
Dynamic range
[Default value]
Comment
Value
▪ 1Byte value
▪ 1Byte percent value
▪ absolute position
Blinds/Shutter
▪ Scene number
Setting the data point type for the
value to be sent
Table 29: Settings – Basic function: Send value
Each time the button is pressed, the set value (percentage value, decimal value or scene) is sent. The
adjustable values are 0 - 100% (percentage value), 0 - 255 (value) or 1 - 64 (scene number). With the
setting "absolute position Blinds/Shutter", 2 values (height and slat position) are sent.
Note: Only one value can be displayed as status!
For details on the button/object description and the lock object, see 4.4.1 Identical parameter
For details about display, see 4.4.3.1 Identical Settings – Representation on the display
The following table shows the available communication objects:
Number
Name/Object Function
Length
Usage
15
Button 3 –
Send percent value, Send value,
Send scene, absolute position
1 Byte
Sending the value.
DPT depending on the parameter setting
16
Button 3 –
Absolute position of slats
1 Byte
Sending the slat position
18
Button 3 –
Status for display
1 Byte
Receipt of the status. DPT depends on the
parameter setting.
Not shown when selection "Scene number".
+5
Button 4
Table 30: Communication objects – Basic function: Send value
