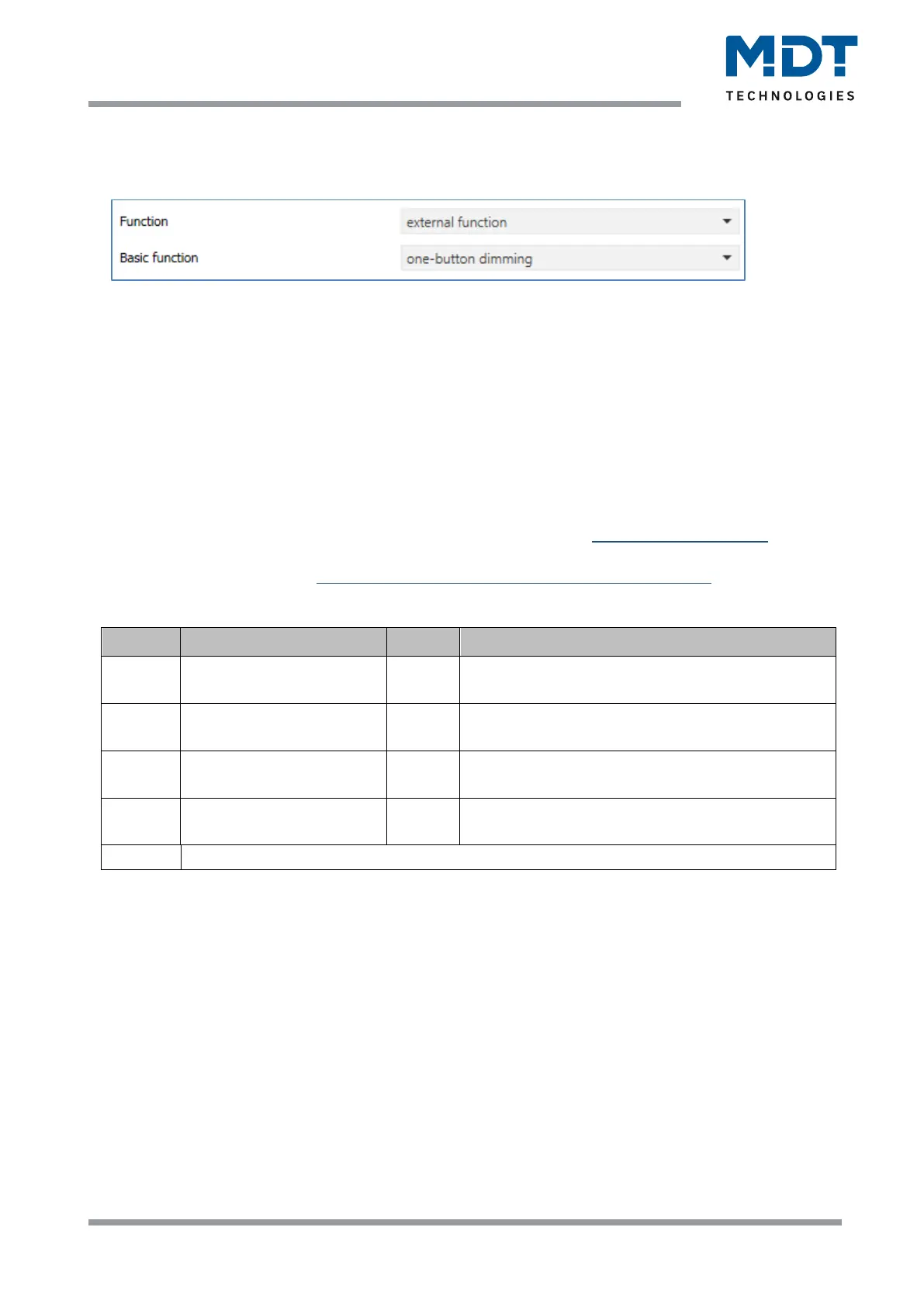

Je bekijkt pagina 40 van 62
Technical Manual
Blind Push Button Smart 55 BE-JTA5504.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
40
40
4.4.3.7 External function – Basic function: One-button dimming
The following figure shows the available settings:
Figure 25: Settings – Basic function: One-button dimming
With the function "One-button dimming", two communication objects appear for this button. On the
one hand the object "Dimming On/Off" for the short keypress. On the other hand, the dimming
object "Dimming relative" for the long keypress.
The direction (brighter/darker) is reversed depending on the "Status for toggle" communication
object.
The dimming function is a start-stop dimming, i.e. as soon as the dimming function becomes active, a
light or dark command is assigned to the input until the button is released. After the button is
released, a stop telegram is sent, which ends the dimming process.
For details on the button/object description and the lock object, see 4.4.1 Identical parameter
For details about display, see 4.4.3.1 Identical Settings – Representation on the display
The following table shows the available communication objects:
Number
Name/Object Function
Length
Usage
15
Button 3: –
Dimming On/Off
1 Bit
Switch command for the dimming function
16
Button 3: –
Dimming relative
4 Bit
Command for relative dimming
17
Button 3 –
Status for toggle
1 Bit
Receiving the status with current information
about the status of the actuator to be controlled
18
Button 3: –
Status for display
1 Byte
Receiving the status of the current, absolute
brightness
+5
Button 4
Table 25: Communication objects – Basic function: One-button dimming
