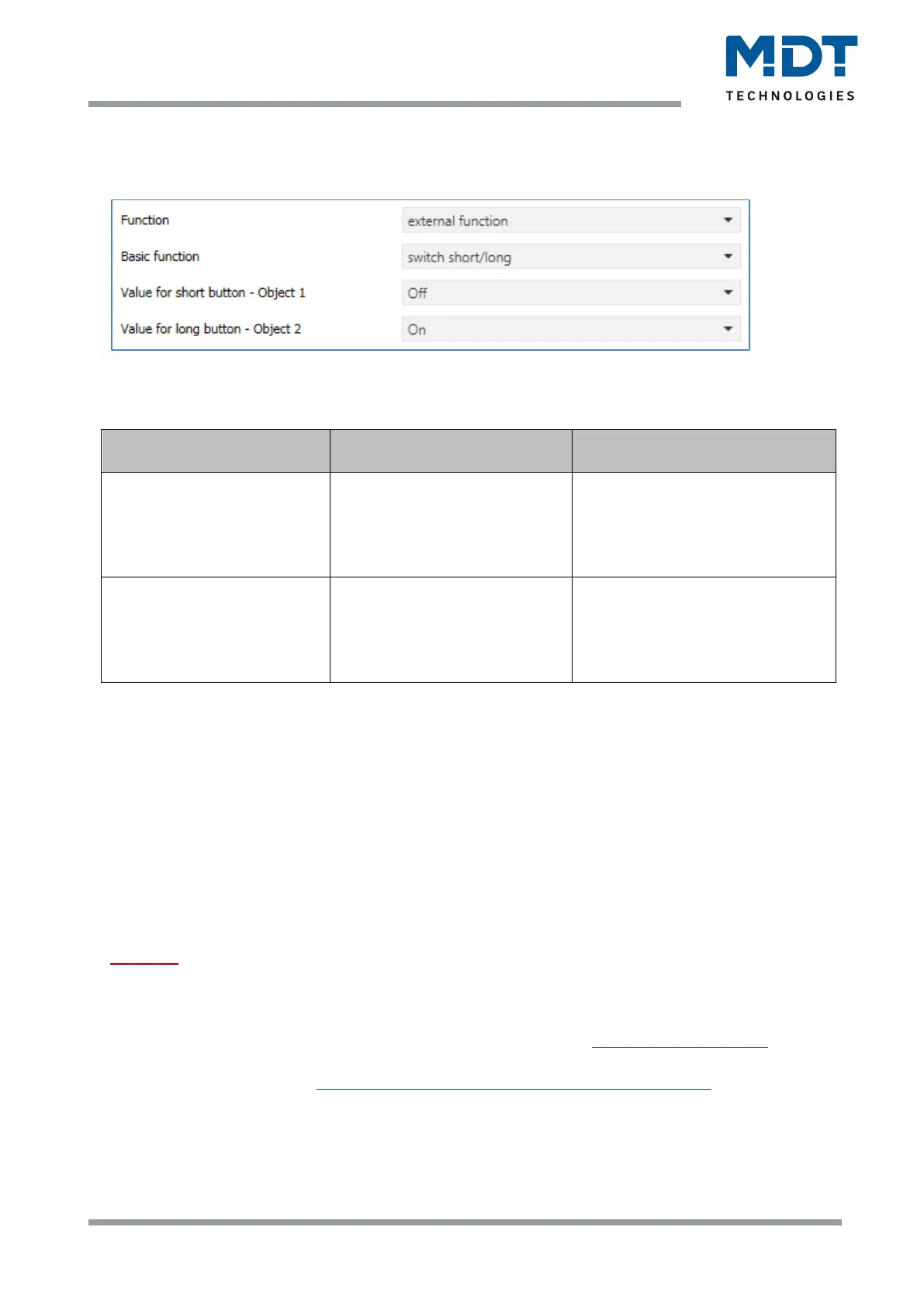

4.4.3.6 External function – Basic function: Switch short/long
The following figure shows the available settings:
Figure 24: Settings – Basic function: Switch short/long
The following table shows all available settings:
ETS-Text
Dynamic range
[Default value]
Comment
Value for short/long button –
Object 1/2
▪ Off
▪ On
▪ toggle
▪ send value
▪ not active
Setting the function for the
short/long button.
Send value
▪ 1Byte value
▪ 1Byte percent value
▪ absolute position
Blinds/Shutter
▪ Scene number
Setting only available if "Value for
short/long button" is set to "Send
value".
Setting the data point type for the
value to be sent.
Table 23: Settings – Basic function: Switch short/long
With the basic function "switch short/long", 2 different values - for the short and long button - can
be sent. The short and long buttons have different objects, which also makes it possible to send
different types of data points.
With "send value: On" or "send value: Off", the same, fixed value is always sent.
With "toggle", On/Off is sent alternately.
With "Send value", the set value (percentage value, decimal value or scene) is always sent. The
adjustable values are 0 - 100% (percentage value), 0 - 255 (value) or 1 - 64 (scene). With the
"Absolute position roller Blinds/Shutter" setting, 2 values (height and slat position) are sent.
The status display always applies to the "short button" / object 1 !
Attention: When selecting "Send value" => "Absolute position Blinds/Shutter", 2 values each (for
height and for slats) are sent. For this, no status can be displayed for the settings "Symbol by
status" and "Value/text by status".
For details on the button/object description and the lock object, see 4.4.1 Identical parameter
For details about display, see 4.4.3.1 Identical Settings – Representation on the display
The time for "long keypress" is defined in the "Button functions" menu.
