Technical Manual
Blind Push Button Smart 55 BE-JTA5504.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
35
35
4.4.3.2 Shading On/Off (global objects)
The following figure shows the available setting:

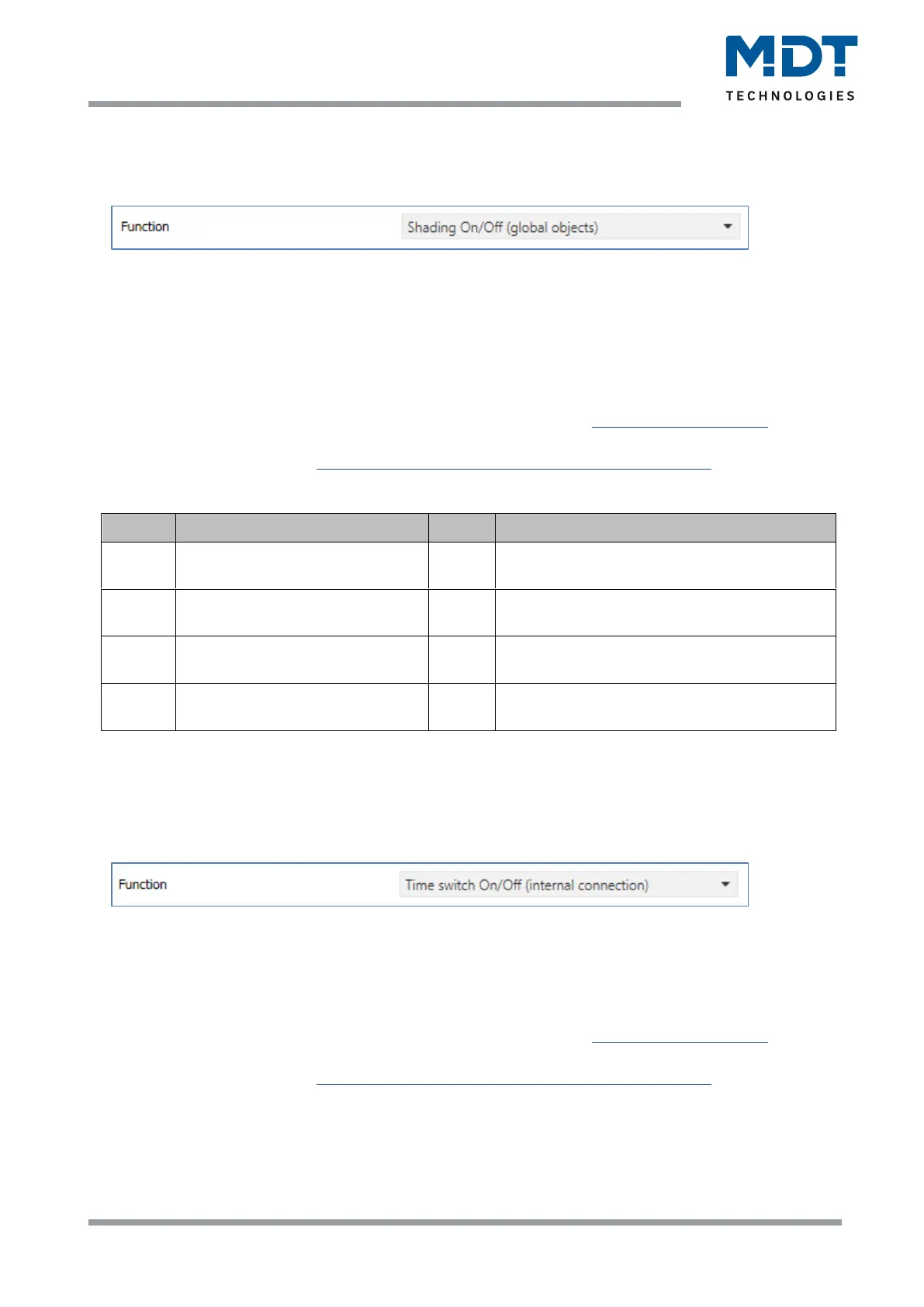

Figure 20: Setting – Shading On/Off (global objects)
With this function, a "1" or "0" is automatically sent via object 8 (lock or enable shading) when the
button is pressed. The value at object 9 (status shading...) is evaluated and the corresponding
counter value is sent the next time the button is pressed. If no status is received, the system switches
over with each press of the button.
For details on the button/object description and the lock object, see 4.4.1 Identical parameter
For details about display, see 4.4.3.1 Identical Settings – Representation on the display
The following table shows the available communication objects:
Number
Name/Object Function
Length
Usage
8
Blinds/Shutter –
Lock Shading
1 Bit
Sending a "1" to lock the Shading and a "0" to
unlock it.
8
Blinds/Shutter –
Enable Shading
1 Bit
Sending a "1" to enable Shading and a "0" to
lock.
9
Blinds/Shutter –
Status “Lock Shading”
1 Bit
Receiving the status from the shutter actuator
9
Blinds/Shutter –
Status “Enable Shading”
1 Bit
Receiving the status from the shutter actuator
Table 21: Communication objects – Shading On/Off (global objects)
4.4.3.3 Time switch On/Off (internal connection)
The following figure shows the available setting:
Figure 21: Setting – Time switch On/Off (internal connection)
This function internally locks or unlocks the time switch when a button is pressed. This is controlled
internally, no linking of group addresses is necessary.
For details on the button/object description and the lock object, see 4.4.1 Identical parameter
For details about display, see 4.4.3.1 Identical Settings – Representation on the display
