The following table shows the available settings:
ETS-Text
Dynamic range
[Default value]
Comment
Display „Shading“ top left
▪ not active
▪ only Standby
▪ only State
▪ Standby and State
Setting whether "Shading" is
indicated by a symbol in the upper
left corner of the display.
Colour of symbol for
„Shading not active“
“Shading standby“
„Shading active“
any colour
[foreground colour]
[sun orange]
[sun orange]
Only for colour mode "coloured".
Setting the colour of the respective
symbol.
Symbol for
„Shading not active“
“Shading standby“
„Shading active“
Fixed symbols for "Shading".
Cannot be changed!
Display “Lock time switch” top
right
▪ not active
▪ active
Setting whether “Lock time switch"
is indicated by a symbol in the upper
right corner of the display.
Colour of symbol for
„Time switch not active“
„Time switch active“
any colour
[foreground colour]
[sun orange]
Only for colour mode "coloured".
Setting the colour of the respective
symbol.
Colour of symbol for
„Time switch not active“
„Time switch active“
Fixed symbols for "Lock time
switch".
Cannot be changed!

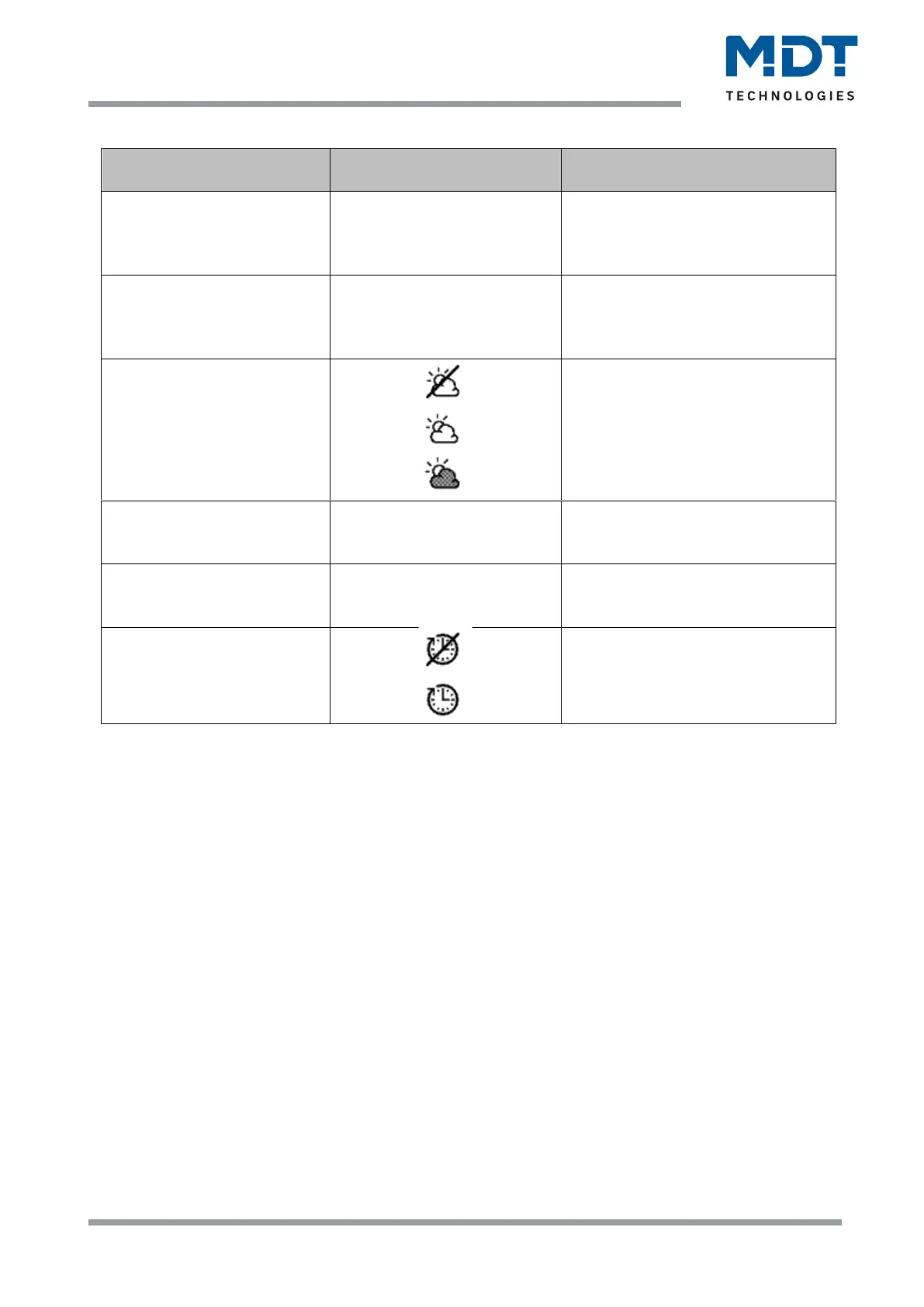

Table 12: Settings – Display Shading/Lock of time switch
When this parameter is activated, the current state of the shading (active or not active) as well as
the standby status (ready or not) can be visualised in the top left of the display. For this purpose, the
MDT Shutter Actuator sends the current status of the shading to object 9 - "Status enable/lock
Shading" or to object 10 - "Shading state" of the Blind Push Button. The symbols for this are defined
via the application (see illustration above).
The current status of the time switch can be visualised in the top right of the display. The lock is set
with a logical "1" on object 28 - "Time switch - Lock". The time switch is unlocked with a logical "0".
Here, too, the symbols are defined via the application (see illustration above).
