MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Telephone: +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
7 / 63
Technical Manual
Glass Push Button II Lite [BE-GTLxxx.x1]
State 09/2024 - Version 1.4
2.4 Structure & Handling

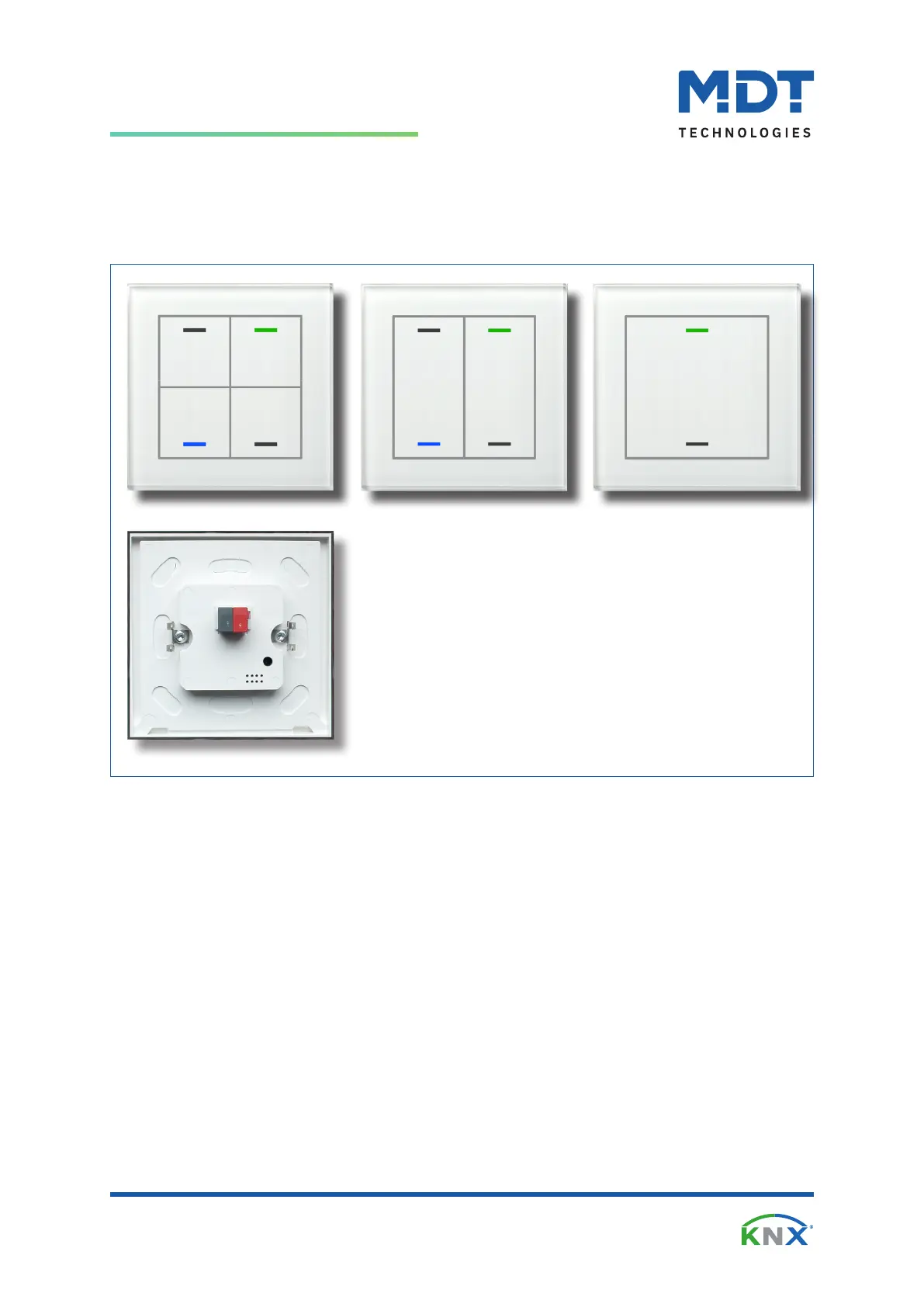

The following pictures show the structure of the push-buttons:
Figure 2: Structure and Handling
2.5 Commissioning
1. Wire the device according to the wiring diagram.
2. Connect the interface to the bus.
3. Switch on bus voltage.
4. Press the programming button on the device.
(the status LEDs flash red alternately at the top and bottom).
5. Set and programme the individual address in the ETS (Status LEDs turn off).
6. Congure and programme the settings in the application programme.
Back side: BE-GTLxxx.x1
3
4
Structure: BE-GTL4xx.x1
2 2
2 2
11
1 1
Structure: BE-GTL2xx.x1
2 2
2 2
11
1 1
Structure : BE-GTL1xx.x1
2
2
1
1
1 – Sensor surfaces
2 – RGBW Status LEDs
3 – Programming button
4 – KNX Busconnection terminal
