4.4.11 Dimming
Single-Button function
Two-Button function
Slap-Button
The dimming function can be used to control dimming actuators.

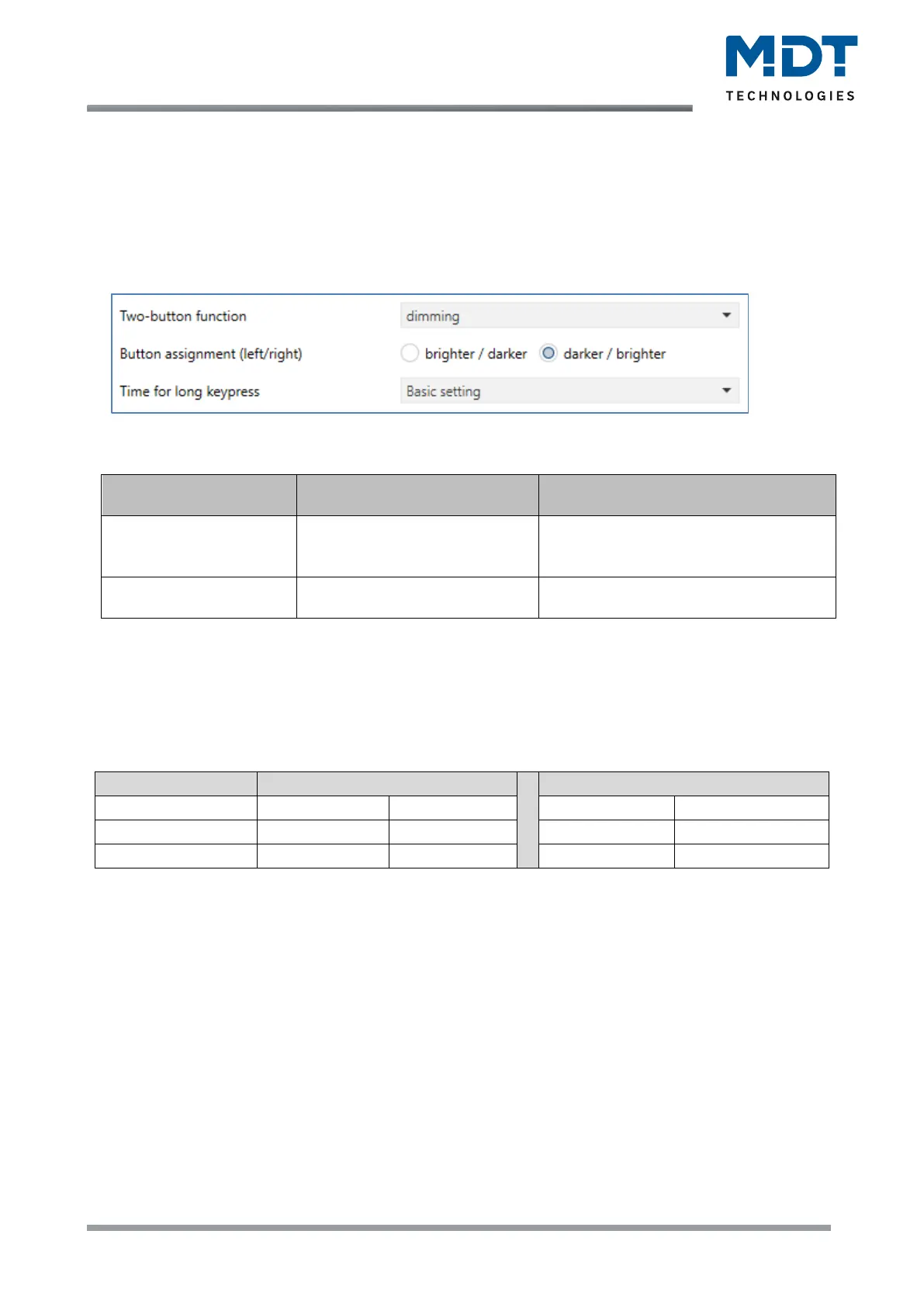

The following figure shows the available settings (here: for the two-button function):
Figure 40: Settings – Dimming
The following table shows the available settings:
ETS-Text
Dynamic range
[Default value]
Comment
Button assignment
(left/right)
▪ brighter/darker
▪ darker/brighter
Only with two-button function.
Setting the button assignment for the
direction (brighter/darker).
Time for long keypress
Basic setting
0.1 s – 30.0 s
Setting of the time from when a long
keystroke is to be detected.
Table 58: Settings – Dimming
With the single-button function "dimming", two communication objects appear for this button.
Firstly, the function for a short button action, the "Dimming On/Off" switch object, and secondly the
function for a long button action, the dimming object "Dimming relative".
The two-button function “dimming” can be set either as brighter/darker or as darker/brighter. The
relationships are shown in the following table:
Table 59: Functionality – Two-button Dimming
With the single-button function “dimming”, the direction (brighter/darker) is reversed depending on
the communication object "Status for toggle".
The dimming function is a start-stop dimming function, i.e. as soon as the dimming function becomes
active, a brighter or darker command is assigned to the input until it is released. After the command
is released, a stop telegram is sent which ends the dimming process.
Function brighter/darker
Function darker/brighter
Input
Button left
Button right
Button left
Button right
Dimming function
brighter
darker
darker
brighter
Switch function
ON
OFF
OFF
ON
