4.4.4.2 Subfunction: Switch
Single-Button function
Slap-Button
Here, the button sends the respective fixed value when pressed.
The following picture shows the available settings:

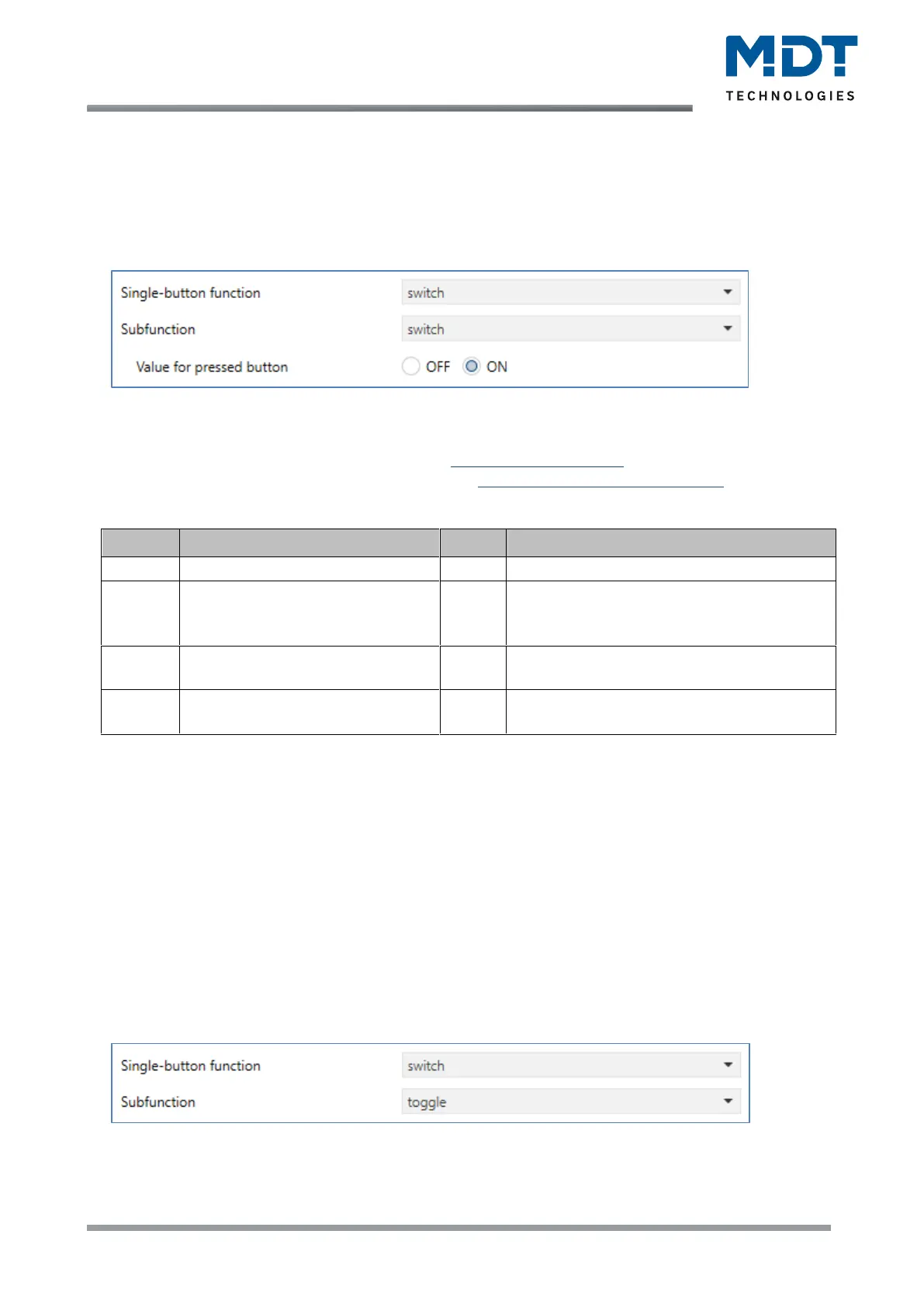

Figure 21: Settings – Single-button function: Switch - Subfunction: Switch
Note:
For details on the Innovative group control, see 4.4.4 Switch – General.
For details on the configuration of the symbols, see 4.4.4.5 Presentation (Symbols).
The following table shows the available communication objects:
Number
Name/Object Function
Length
Usage
0
F1: – Switch
1 Bit
Switching function of the buttons
1
F1: – Status for display
1 Bit
Status to update display/symbol on the
push-button. Must be connected to the
status of the actuator to be switched
2
F1 Group long: – Switch
1 Bit
Switching function of the button with long
keystroke
4
F1 Group extra long: – Switch
1 Bit
Switching function of the button with extra
long keystroke
Table 28: Communication objects – Single-button function: Switch - Subfunction: Switch
4.4.4.3 Subfunction: Toggle
Single-Button function
Slap-Button
With this function, the button sends the respective inverted value in relation to the last received
status value.
For this purpose, the status object "Status for toggle" is connected to the status of the actuator to be
controlled. If a "1" signal was received as the last value, the button sends a "0" command to the
"Toggle" object the next time it is pressed.
The following image shows the available settings:
Figure 22: Settings – Single-button function: Switch - Subfunction: Toggle
