4.2.3.2 Status values 1-4

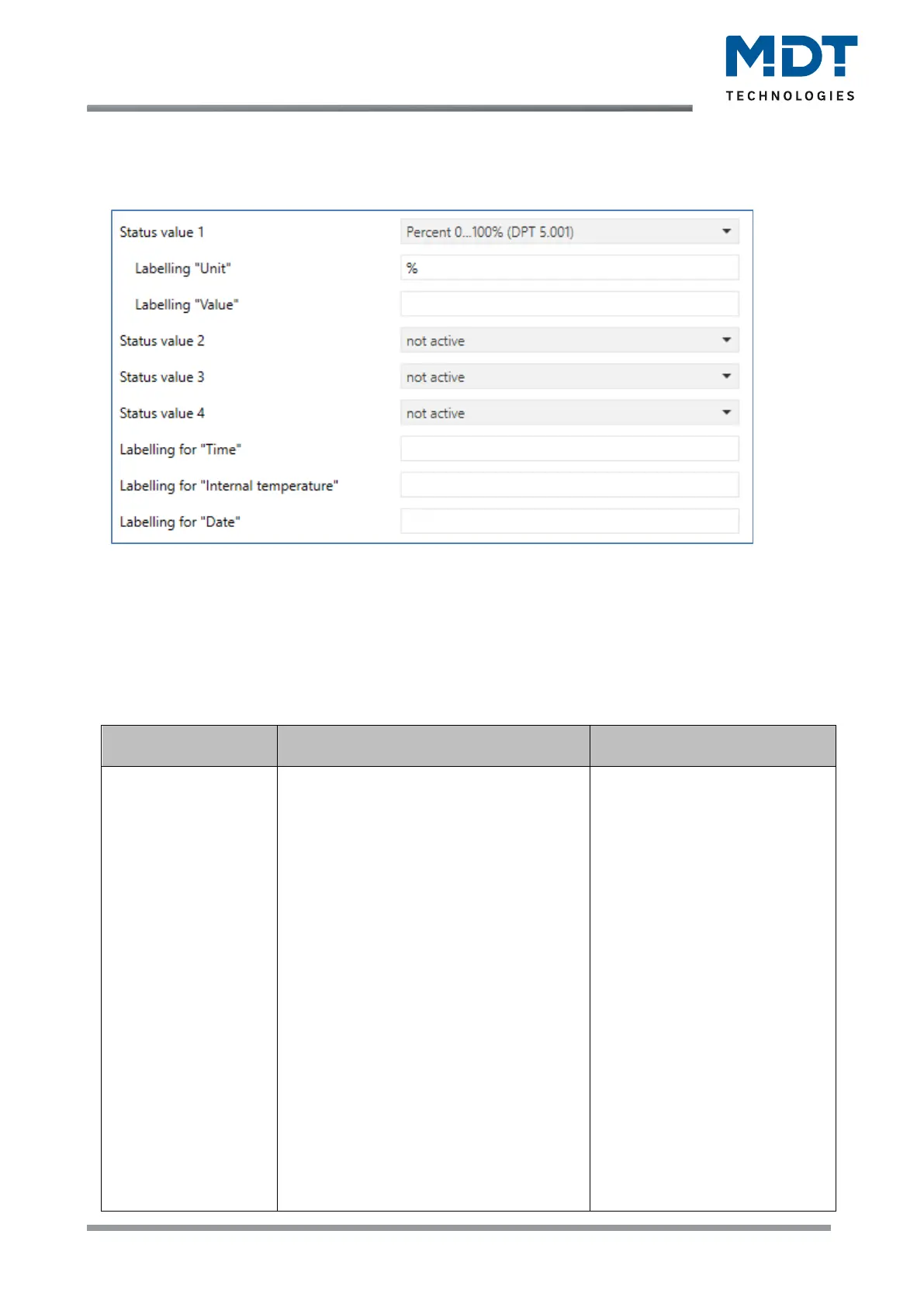

The following picture shows the available settings:
Figure 11: Settings – Info display: Status values 1-4
Up to 4 different status values can be defined, which are then displayed in Standby when the status
elements are selected accordingly. In addition, there is the option of free labelling for the "Unit" and
the selected "Value" or "Text".
The text fields for "Time", "Internal temperature" and "Date" refer to the corresponding status
elements in the previous chapter "Presentation in Standby".
The following table shows the setting options:
ETS-Text
Dynamic range
[Default value]
Comment
Status value 1 – 4
▪ not active
▪ On/Off (DPT 1.001)
▪ Percent 0…100% (DPT 5.001)
▪ Value 0…255 (DPT 5.005)
▪ Current [mA] (DPT 7.012)
▪ Brightness [Lux] (DPT 7.013)
▪ Temperature [°C] (DPT 9.001)
▪ Brightness [Lux] (DPT 9.004)
▪ Wind speed [m/s] (DPT 9.005)
▪ Humidity [%] (DPT 9.007)
▪ Air quality [ppm] (DPT 9.008)
▪ Current [mA] (DPT 9.021)
▪ Power [kW] (DPT 9.024)
▪ Flow Rate [l/h] (DPT 9.025)
▪ Volume [l] (DPT 12.1200)
▪ Volume [m
3
] (DPT 12.1201)
▪ Flow Rate [m
3
/h] (DPT 13.002)
▪ Active Energy [Wh] (DPT 13.010)
▪ Active Energy [kWh] (DPT 13.013)
▪ Power [W] (DPT 14.056)
▪ Speed [m/s] (DPT 14.065)
▪ Volume [m
3
] (DPT 14.076)
Setting of the data point type to
be displayed as a status value.
