DISHWASHER INSTRUCTIONS MANUAL
MDIISY31-(r05) Page 15 of 28
UK
5.8.3 Machine equipped with double boiler
Reference figure 12
For versions equipped with a second boiler, after following the instructions given in the paragraph above,
proceed as follows to activate the heating of the elements.
Disconnect the power supply using the main switch (fig.12/A)
Remove the panel under the rinse section (fig.12/B) to access the electrical control panel
Remove the cover of the control panel and access the terminal board (fig.12/C)
Activate the electrical element by connecting the two terminals indicated in figure 12/D with the wire
supplied
Refit the electrical control panel cover and the panel.
5.9 Controls
Make sure that the level of water in the washing tank, once filled, is 1-2 cm below the overflow
level.
Make sure that the temperature of the washing and rinsing tank is in accordance with the
settings.
Check the dispensers for proper function.
Make sure the rinsing economiser is working well: it must start dispensing hot water as soon as
a basket arrives beneath the rinsing jets, and make the hot water flow stop when the basket
moves away.
Make sure the limit switch is working. The switch must block the functioning of the advancement
motor and of the pump whenever a basket reaches the end of the plane. Once the basket is
removed, the functioning must resume.
Check the rotation direction of the pumps. If they are turning in the opposite direction, invert the
two phases of the power supply cable.
Check the regulation of the mechanical safety system of the conveyor,
which must be adjusted taking into account the overall length of the
machine and of the output tables measured by themselves.
A full load of baskets full of plates should not block the advancement
of the conveyor.

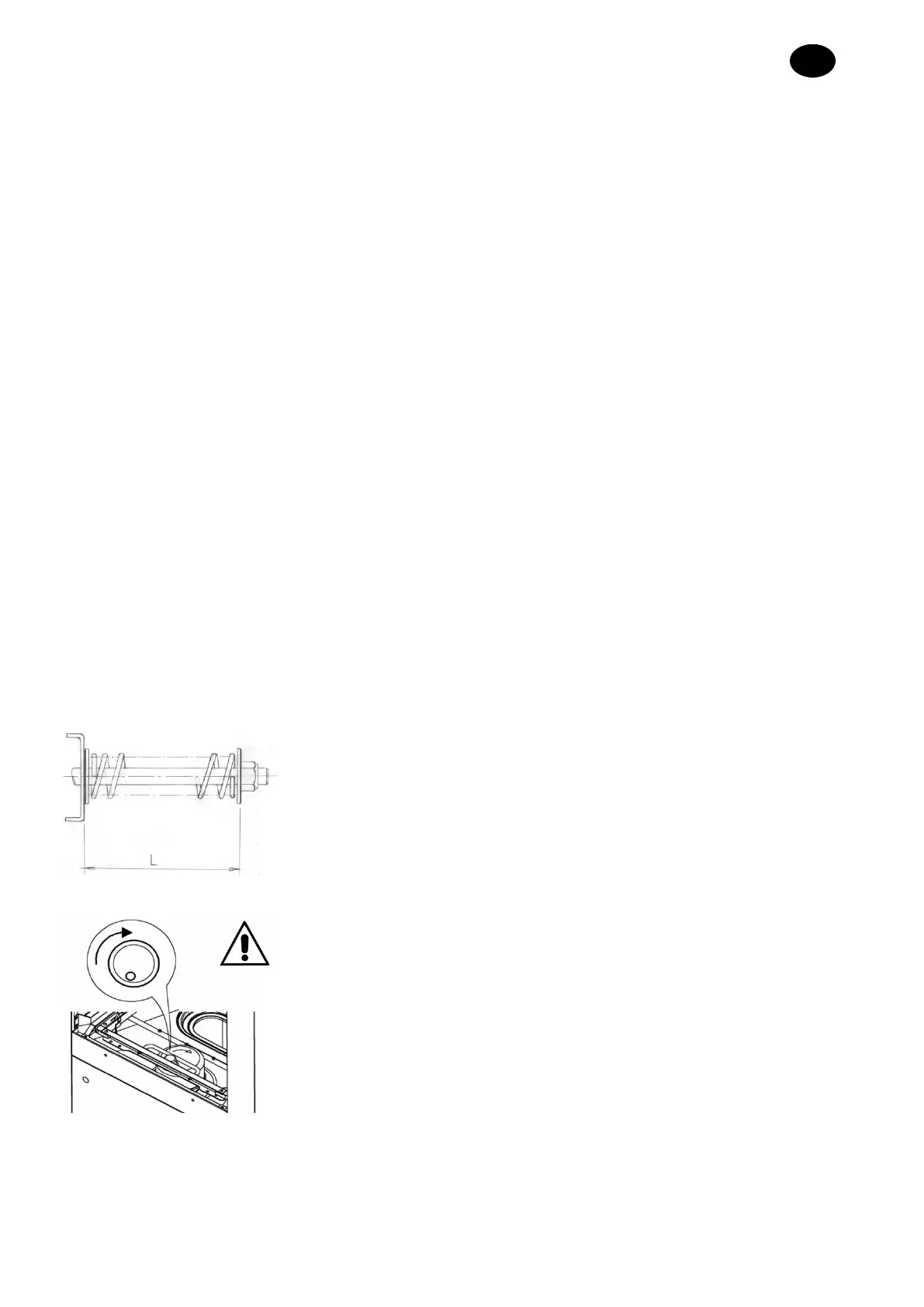

To make the regulation, turn the screw on the bracket that supports
the conveying motion unit.
The advised L length must range from 60 to 75 mm (see figure).
Please contact your assistance centre for complex applications.
Make sure that the rotation direction corresponds to the figure and to
the central motion of the conveyor.
WARNING: The mechanical safety will not work efficiently if the
rotation direction is incorrect.
