DISHWASHER INSTRUCTIONS MANUAL
Page 6 of 21 MDIISY31-(r01)
UK

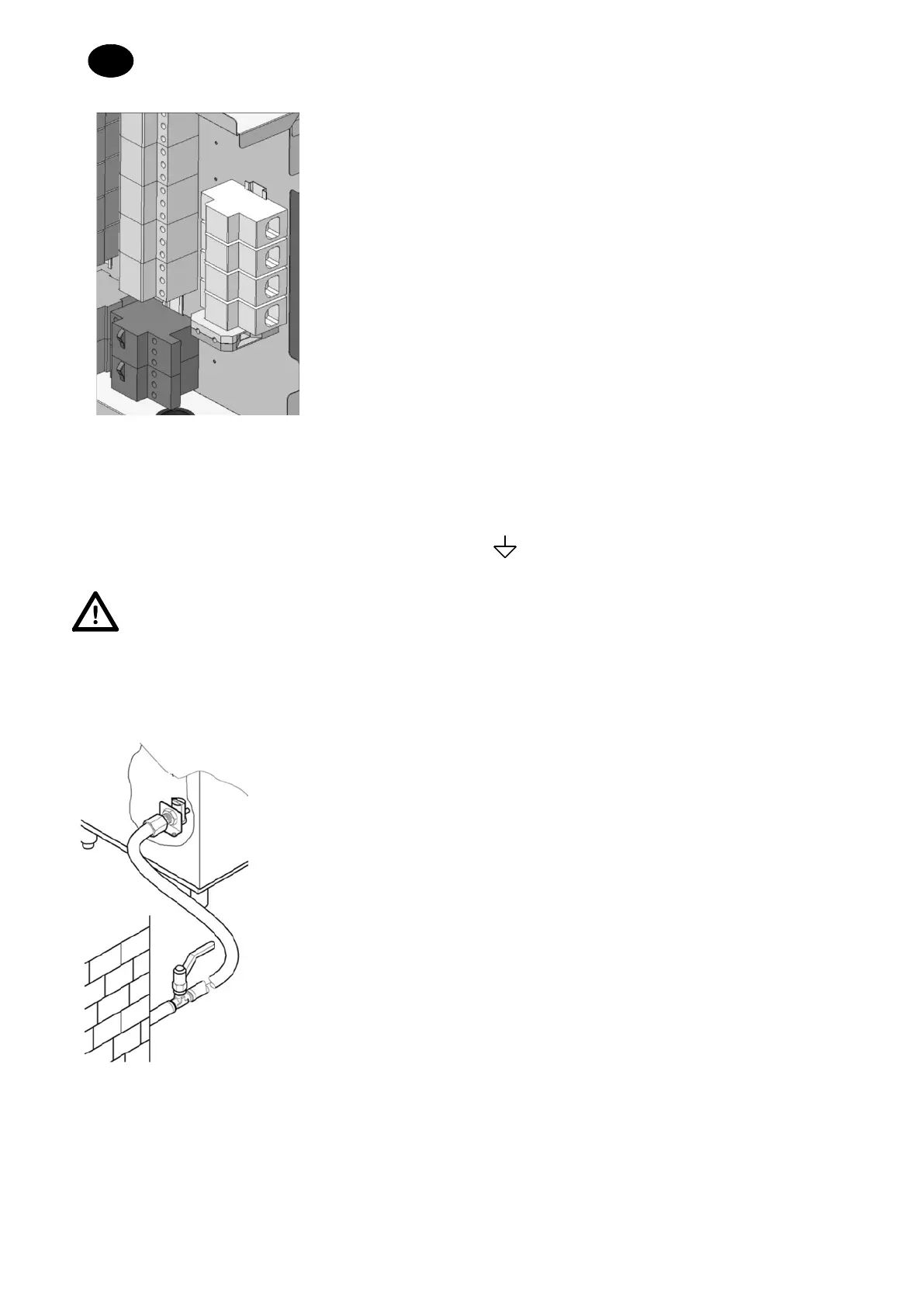

• Remove the anterior panel and the protection of the switchboard
by loosening the screws.
• Introduce the power cable through the cable gland.
• Connect the cable to the terminals on the board, as indicated in
the wiring diagram attached.
• If the Neutral and Earth cables are connected incorrectly, the
machine may suffer irreversible damage, and the warranty may
be annulled!
• Check that the cables on the contactors, thermal protections etc
are well tightened, as the screws may have loosened during
transportation.
• Place the anterior panel back in position and the control panel,
using the screws included.
• The power supply cable, exclusively of the H07RN-F type, must never be tensioned or crushed
during normal use or routine maintenance.
• In addition, the machine must be installed as part of an equipotential system,
connected through a screw marked with the symbol .
• The equipotential conductor must have a section of 10 mm
2
.
It is forbidden to use multiple sockets, adaptors, cables of unsuitable type or section, or with
extension junctions not in conformity with the current regulations regarding electric systems.
Hydraulic connection
4.2
Prepare the area according to the installation diagram attached.
Prior to connecting the machine, make sure that there is a gate valve installed
between the water mains and the machine, to make it possible to interrupt
water supply in case of need or when carrying out repairs.
In addition, make sure that the supply capacity is not inferior to 20 l/min.
Make sure that the incoming water temperature and pressure
correspond to the values indicated in the technical characteristics tag.
If the water is harder than the value indicated in the tag, it is advisable to
install a water softener uphill to the power supply solenoid valve of the
machine.
If the concentration of residual minerals in the conductibility water is very
high, it is advisable to install a demineralisation system calibrated to obtain a
residual water hardness compatible with the values in the table below.
WARNING! High concentrations of sodium chloride may cause rust.
