DISHWASHER INSTRUCTIONS MANUAL
Page 10 of 28 MDIISY31-(r05)
UK
4.5 Environmental conditions
Environmental temperature: 40° C max/4° C min (average: 30°C)
Altitude: up to 2,000 metres
Relative humidity: Max 30% at 40° C/max 90% at 20° C
Cap 5 INSTALLATION

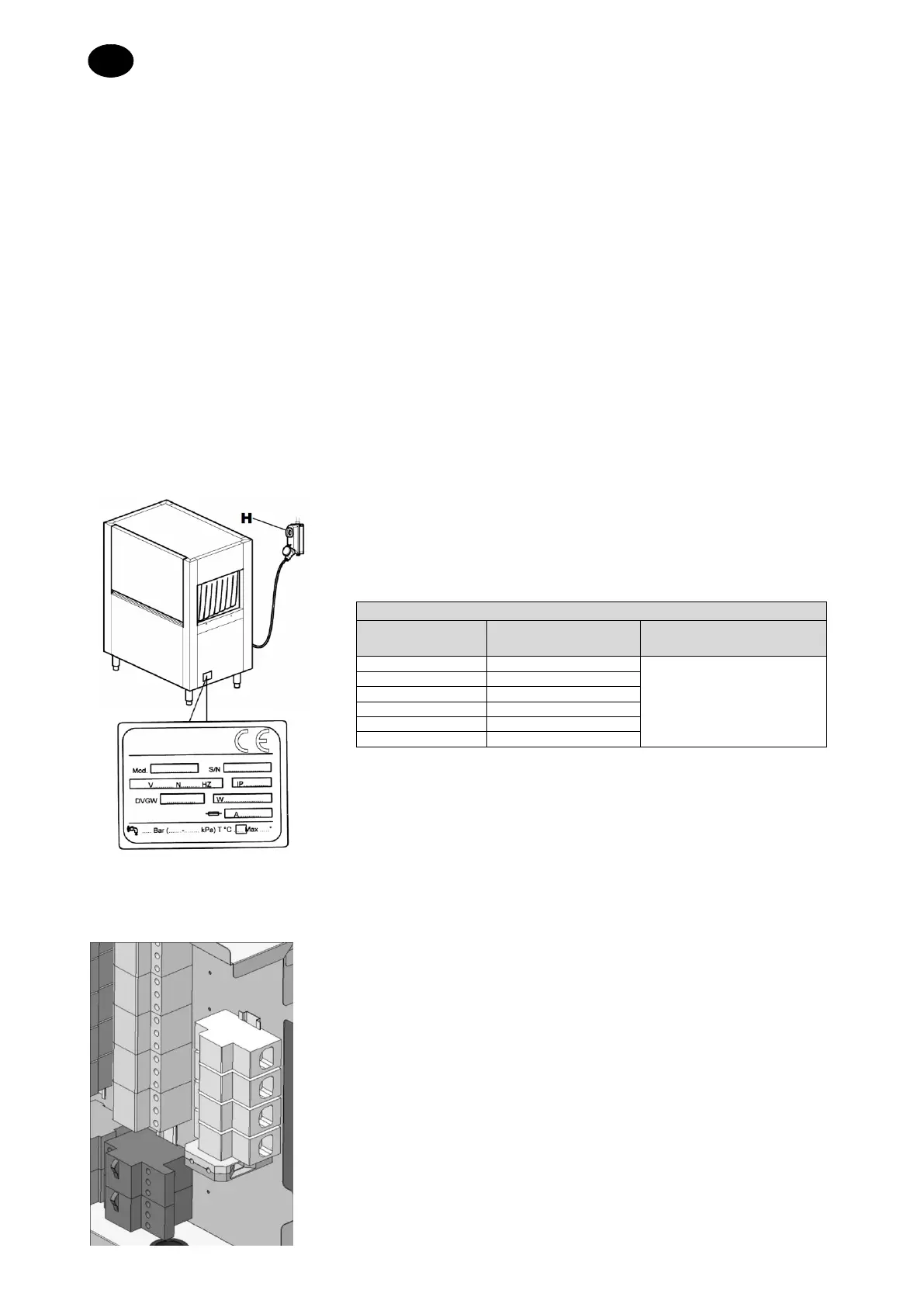

5.1 Electrical connection
Warning! Installation must be carried out only by specialised
technicians!
Before connecting the equipment, make sure that both the
voltage and frequency of the mains power supply correspond to
those indicated on the data plate affixed to the side panel of the
machine.
To connect the machine to the mains power supply, use only
H07RN-F type power supply cables with a conductor cross-
section appropriate for the maximum absorption indicated on the
data plate and as indicated in the table below.
Take care when laying out the cable to observe the minimum
bend radius indicated by the cable manufacturer.
H07RN-F
Current (A)
Cross-section
(mm
2
)
Maximum length (mm)
40
10
5000
50
16
63
16
80
25
100
35
125
50
The machine must be connected to the power supply by means
of a type "C" dedicated automatic omnipolar switch in compliance
with safety regulations in force, or alternatively with a disconnect
switch having fuses with 3 mm minimum opening distance
between contacts. The above-mentioned switch, not supplied with
the machine, must wall-mounted at an easily accessible point, at
a height between 0.6 m and 1.70 m.
Before connecting the machine to the power supply, make sure
the power is switched off at the mains.
Remove the front panel and the cover of the electrical board by
removing the screws.
Feed the power cable through the cable gland on the back of the
machine.
Connect the cable to the terminals on the board, as indicated in
the wiring diagram attached.
If the Neutral and Earth cables are incorrectly connected, this can
result in irreversible damage to the machine, and the warranty
may be invalidated!
Check that the cables on the contactors, thermal protections etc.
are properly tightened, as the screws may have worked loose
during transportation.
