CHIMNEY ASSEMBLY

The chimney can only be installed with exhausting hood

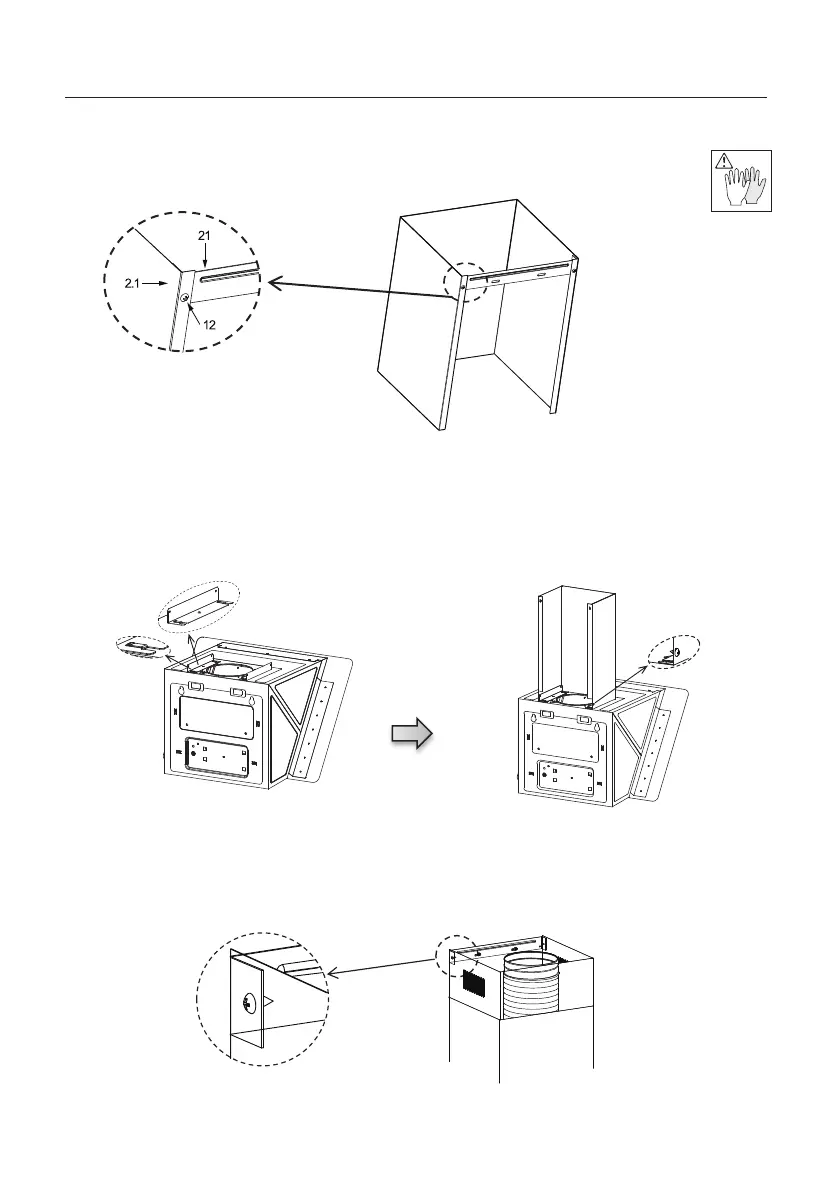

● Fix a Chimney fixing bracket 21 onto the Lower Decorative Chimney with 2 screws 12

(4.2 x 9.5) supplied with the hood.

● Hook the brackets 13 onto the hood body,and fix them with 2 screws 12 (4.2 x 9.5),making

sure that they are well seated.

● Slightly widen the two sides of the lower chimney and hook then between the brackets

13,fix the lower chimney onto the brackets 13 with 2 screws 12 (4.2 x 9.5) supplied with

the hood.

● Slightly widen the two sides of the upper chimney and hook them between the wall and the

bracket 21 which is fixed on the Lower Decorative Chimney.

● Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood.

.
