WALK-IN MAINTENANCE

DOOR CLOSER

The door closer was factory-installed and tested for proper operation

before shipment. This small, but powerful device provides smooth and

positive closing with only a minimum of attention. No lubrication of any

kind is required. It is recommended that, at least once each month, the

relationship of the hook and roller to each other be examined.

To bec

ome familiar with the various components of the closer, see photo

of a closer properly engaged when the walk-in door is closed.

Si

nce the door closer is non-adjustable, any adjustment that becomes

necessary must be accomplished at the closer hook.

CAUTION: DO NOT ATTEMPT TO BEND THE HOOK as a means of

adjustment. The hook is formed and tempered to resist deformation

during normal use.

ROL

LER IS TOO LOW: Loosen all hook bracket screws and add flat

washer(s) between the bracket and the header where the TOP two

screws will keep them in place. Tighten the screws and check the hook

position.

ROLLER IS TOO HIGH: Loosen all hook bracket screws and add

washer(s) between the bracket and the header where the BOTTOM two

screws will keep them in place. Tighten the screws and check the hook

position.

If, for any reason, the roller arm is accidentally bumped into a vertical

position while the door is open, IT MUST BE MANUALLY MOVED TO THE

HORIZONTAL POSITION before the door is closed. Failure to do so may

cause serious damage to the door and/or the door closer.

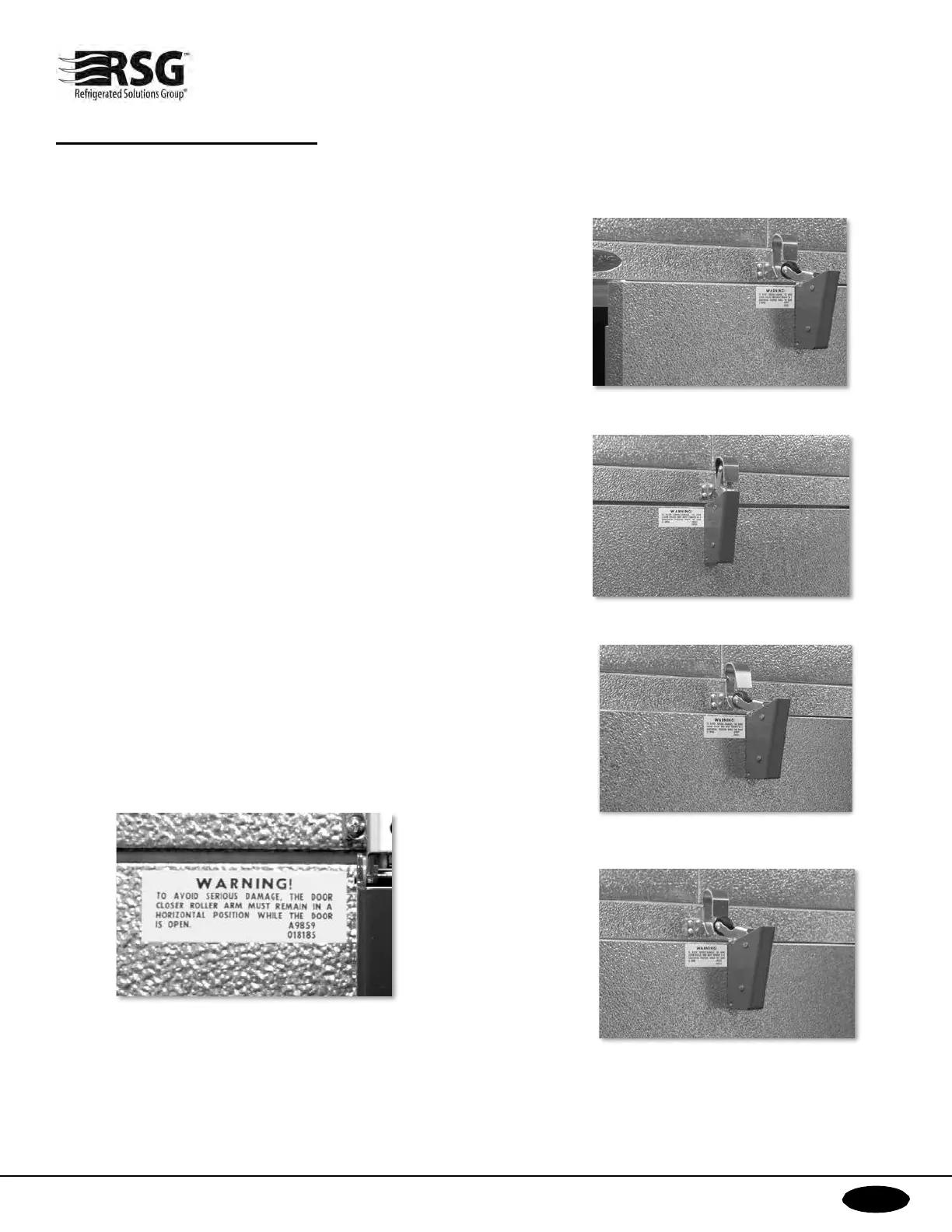

Roller Too Low

Roller Too High

Correct with Door Closed

A warning label is affixed to the

door section as a reminder.

Correct with Door Open
