30 VC-Strip™ Family Safety and Installation Guide

Thermal

Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Convection

Maximum ambient temperature (Ta max.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45° C (113° F)

Minimum ambient temperature (Ta min.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20° C (-4° F)

VC-Strip 4x1 60 RGB

Peak heat dissipation (calculated, at full intensity, full white). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 BTU/hr.

Typical heat dissipation (calculated, with typical video content) . . . . . . . . . . . . . . . . . . . . . . . . . . 3 BTU/hr.

VC-Strip 8x1 25 RGB

Peak heat dissipation (calculated, at full intensity, full white). . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 BTU/hr.

Typical heat dissipation (calculated, with typical video content) . . . . . . . . . . . . . . . . . . . . . . . . .5.5 BTU/hr.

VC-Strip 8x1 30 RGB

Peak heat dissipation (calculated, at full intensity, full white). . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 BTU/hr.

Typical heat dissipation (calculated, with typical video content) . . . . . . . . . . . . . . . . . . . . . . . . .5.5 BTU/hr.

VC-Strip 8x1 60 RGB

Peak heat dissipation (calculated, at full intensity, full white). . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 BTU/hr.

Typical heat dissipation (calculated, with typical video content) . . . . . . . . . . . . . . . . . . . . . . . . .5.5 BTU/hr.

VC-Strip 16x1 15 RGB

Peak heat dissipation (calculated, at full intensity, full white). . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 BTU/hr.

Typical heat dissipation (calculated, with typical video content) . . . . . . . . . . . . . . . . . . . . . . . . .5.5 BTU/hr.

VC-Strip 16x1 25 RGB

Peak heat dissipation (calculated, at full intensity, full white). . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 BTU/hr.

Typical heat dissipation (calculated, with typical video content) . . . . . . . . . . . . . . . . . . . . . . . . . 11 BTU/hr.

VC-Strip 16x1 30 RGB

Peak heat dissipation (calculated, at full intensity, full white). . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 BTU/hr.

Typical heat dissipation (calculated, with typical video content) . . . . . . . . . . . . . . . . . . . . . . . . . 11 BTU/hr.

VC-Strip 32x1 15 RGB

Peak heat dissipation (calculated, at full intensity, full white). . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 BTU/hr.

Typical heat dissipation (calculated, with typical video content) . . . . . . . . . . . . . . . . . . . . . . . . . 11 BTU/hr.

Figures for typical video content are indicative only and will vary

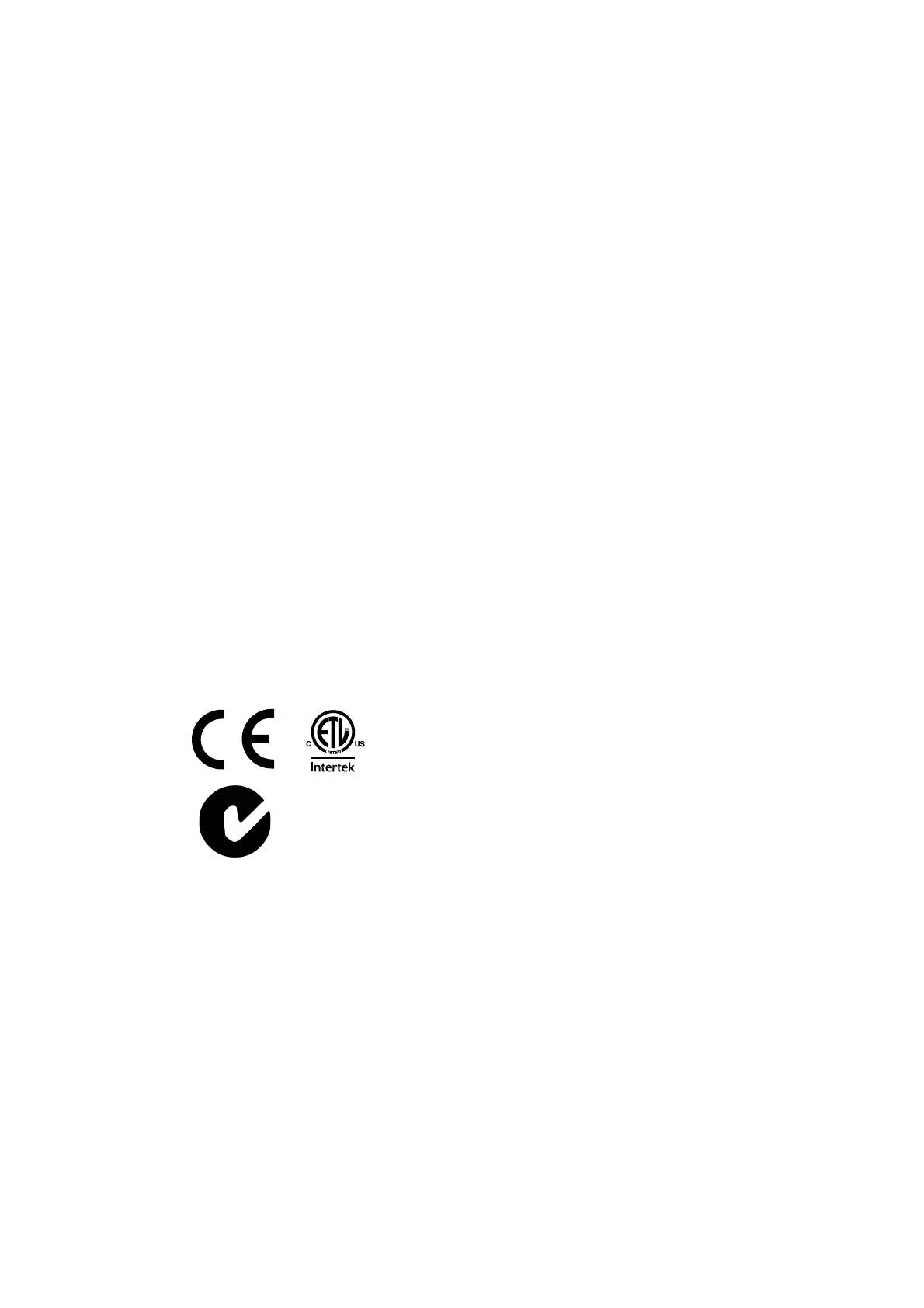

Approvals

EU safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 60950-1

EU EMC . . . . . . . . . . . . . . . . . . . . . EN 55103-1, EN 55103-2, EN 55022,

. . . . . . . . . . . . . . . . . . . . . . . . . EN 55024, EN 61000-3-2, EN 61000-3-3

US safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL 60950-1

US EMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 15 Class A

Canadian safety . . . . . . . . . . . . . . . . . . . . . . . . . CSA C22.2 No. 60950-1

Canadian EMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICES-003 Class A

Australia/NZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-Tick N4241

Accessories

VC-Grid/Strip 25 Lens Arrays, Narrow, set of eight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611540

Mounting accessories

VC-Grid/Strip 25 Mounting Frames, set of ten. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611370

VC-Grid 15/30/60 Mounting Frames, set of ten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611560

Input cables

Hybrid Input Adapter Cable, 4-pin male XLR to PCB connector, 0.25 m (0.8 ft.) . . . . . . . . . P/N 91616035

Hybrid Input Adapter Cable, 5-pin male XLR + two cable

tails to 4-pin female XLR, 0.25 m (0.8 ft.). . . . . . . P/N 91616037

Hybrid Input Adapter Cable, 5-pin male XLR + 4-pin male XLR

to 4-pin female XLR, 0.25 m (0.8 ft.) . . . . . . . . . . P/N 91616038

Hybrid Input Adapter Cable, 5-pin male XLR + Martin IP66 PSU

240W to 4-pin female XLR, 0.25 m (0.8 ft.) . . . . . P/N 91616039
