10 VC-Strip™ Family Safety and Installation Guide
Physical installation
Warning! Read “Safety information” on page 4 and “Precautions to avoid damage” on page 7 on
before installing the VC-Strip.
The VC-Strip can be installed in any orientation. The most evenly matched optical characteristics when
viewing an installation from the side at an angle are obtained when all VC-Strip modules are oriented
horizontally, but unevenness will hardly be noticeable in vertical strips, and then only when viewed from the
side.
The backs of modules are marked with arrows and the word TOP. Install all modules with the arrows facing
the same way. When installing horizontally, install all modules with the arrows pointing upwards and the
TOP marking at the upper edge of the modules.
Allow free airflow around the product and at least 10 mm (0.4 in.) of clearance around the LEDs on the front
surface. Check that the product will not be exposed to direct sunlight or excessive heat.
To maintain pixel spacing across multiple VC-Strip modules, install them with a 1 mm (0.04 in.) gap between
ends of modules.
See Figure 2. The VC-Strip can be fastened to a surface or structure by installing pillar bolts using any two
of the mounting holes (arrowed). Add non-conductive washers on both sides of the VC-Strip.
Shortening modules
Warning! Even if you shorten one or more of the VC-Strip modules in an interconnected chain, do
not exceed the maximum permitted number of full-length modules per chain given in ”Protection
from electric shock” starting on page 4.
It is possible to shorten a VC-Strip long variant module by cutting it at one of the possible cutting points (see
D in Figure 1 on page 9). Modules shortened in this way will communicate their length when they identify
themselves to a P3 or RDM controller.
Short variant VC-Strip modules have no cutting points like the ones at D in Figure 1 on page 9 and cannot
be shortened further.
To cut a VC-Strip module:
1. Ensure that the VC-Strip is isolated from power and data.
2. Read “Electrostatic discharge precautions” on page 8. Do not damage components or printed circuits.

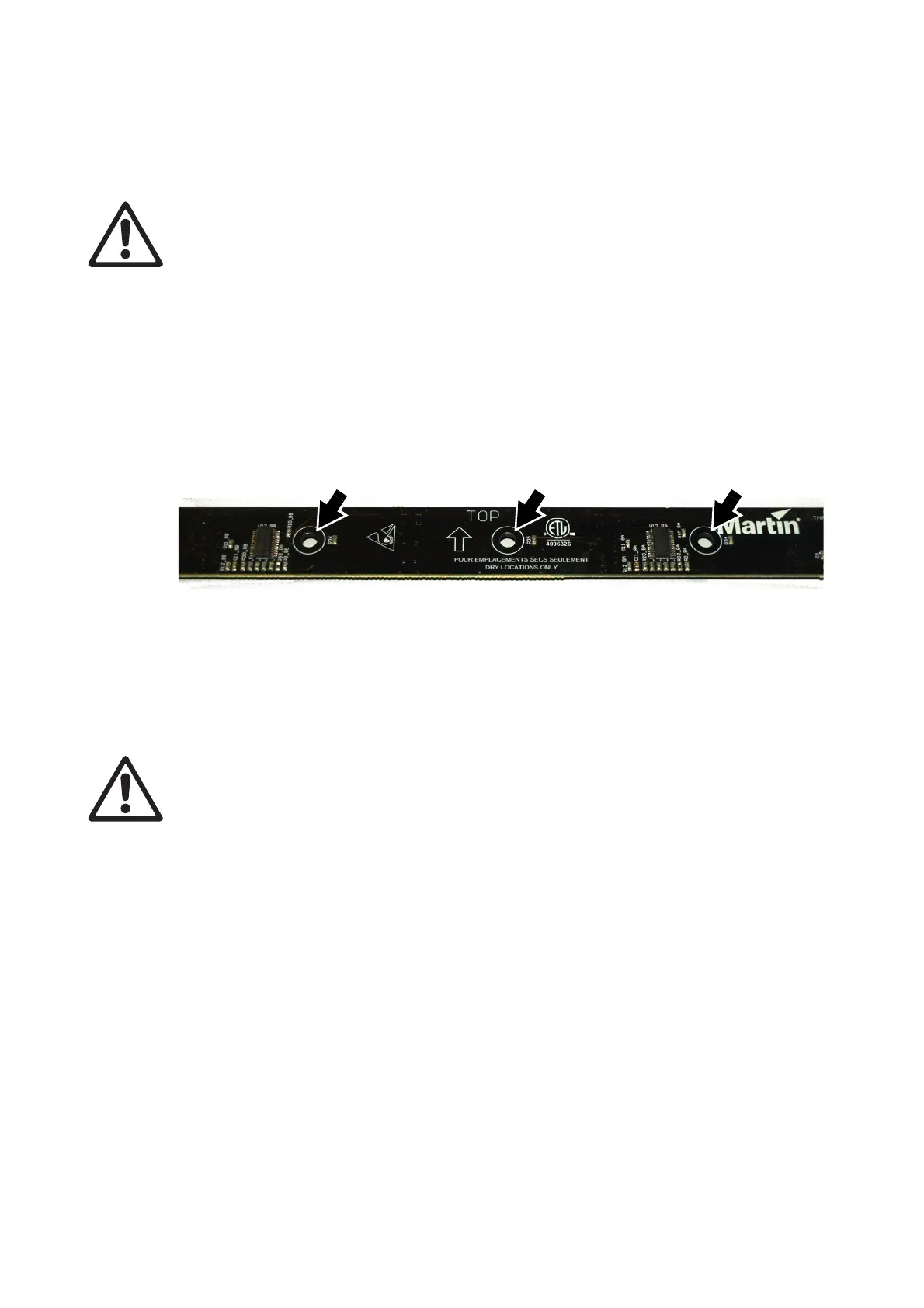

Figure 2: Mounting holes
