16 VC-Strip™ Family Safety and Installation Guide
Installing a DMX system using the Martin IP66 PSU 240W
Hybrid
DMX/RDM Controller
48 VDC power
DMX link (DMX cable)
Hybrid (DC power and data) link

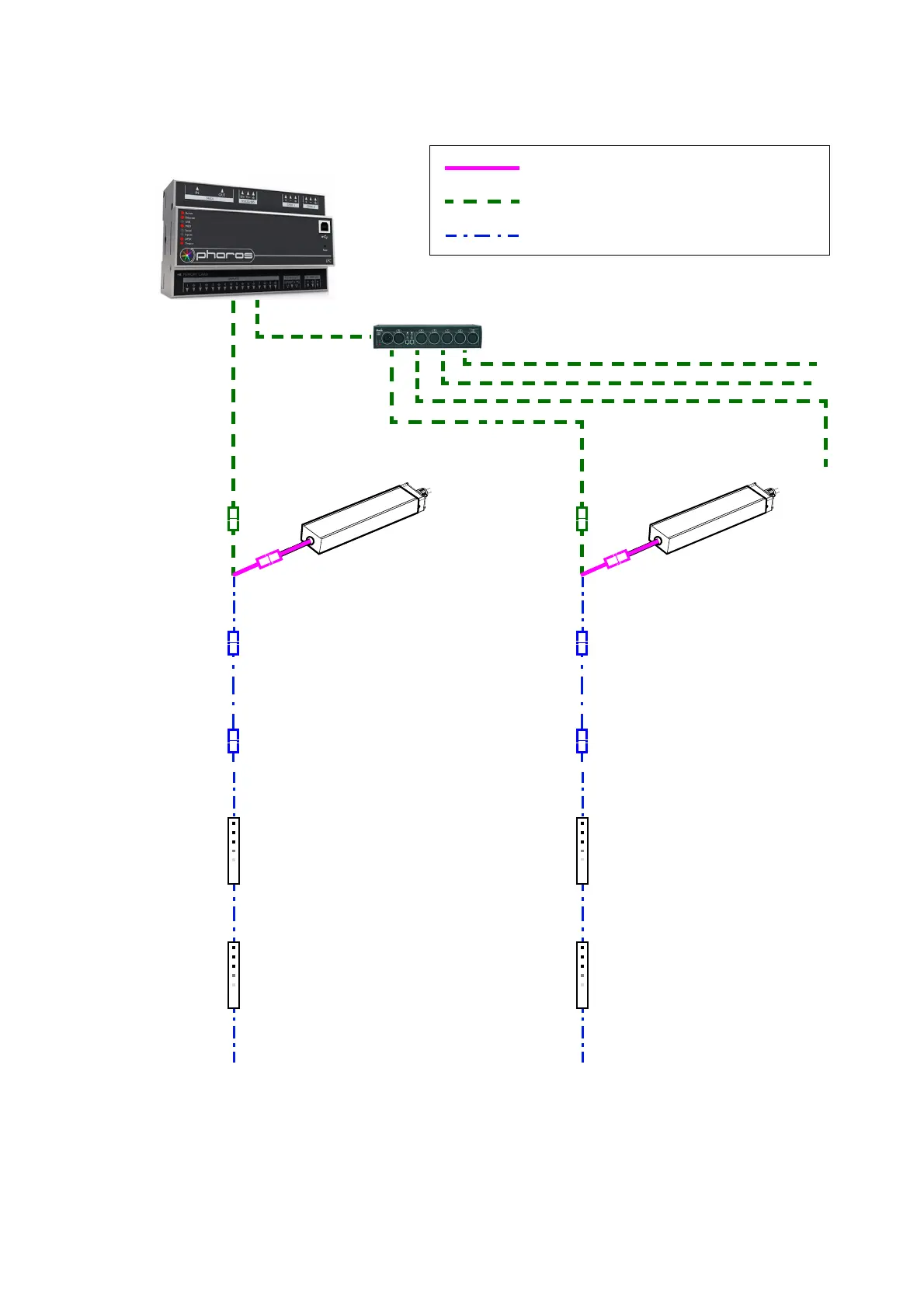

Figure 6: DMX-controlled system using the Martin IP66 PSU 240W
lead-in cable,
DMX/RDM Splitter (if used)
Hybrid-to-PCB
adapter cable
Hybrid extension
cable
(if needed)
Hybrid extension
cable
(if needed)
Hybrid PCB-
to-PCB cable
Hybrid PCB-
to-PCB cable
Hybrid-to-PCB
adapter cable
Hybrid PCB-
to-PCB cable
Hybrid PCB-
to-PCB cable
Martin IP66 PSU 240W
Martin IP66
Hybrid
lead-in cable,
Martin IP66
Martin IP66 PSU 240W
See Table 2 on page 5 for maximum permitted number of modules in chain
PSU 240W PSU 240W
