Rotating gobos

A four-slot rotating gobo wheel module and a single-slot rotating gobo module are available as

optional accessories for the fixture. You can install either the four-slot wheel or the single-gobo module

in the fixture.

Four-slot rotating gobo wheel

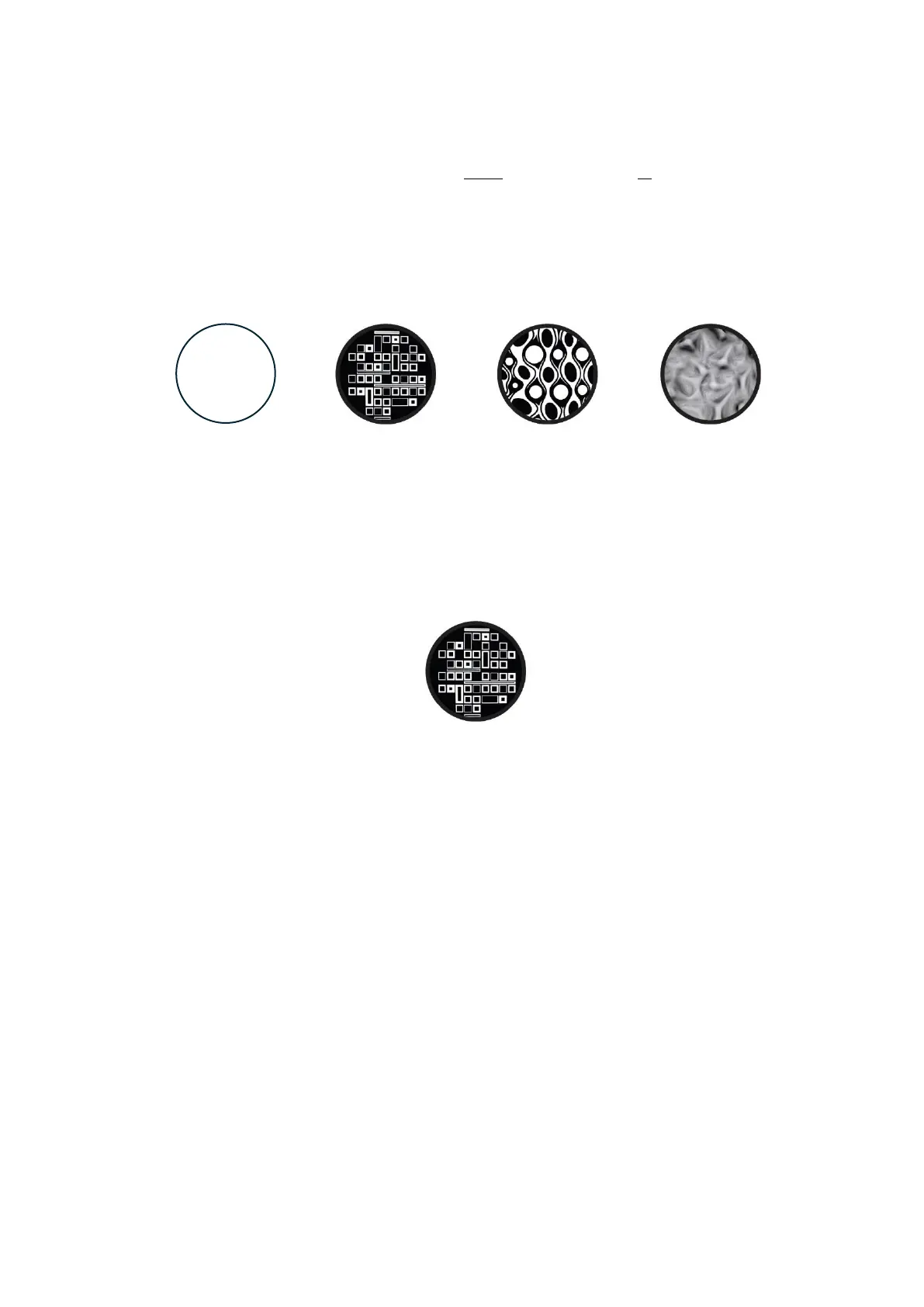

The four-slot gobo wheel is supplied configured as shown below, with the three glass gobos shown

below installed:

Slot 1

Open

Slot 2

Sequence It

Slot 3

Lava Shimmer

Slot 4

Ripple

(structured glass)

Single-slot rotating gobo module

The single-slot gobo module is supplied with the Sequence It rotating glass gobo shown below

installed:

When installed, the single gobo is applied constantly.

Gobo effects

Gobos can be set to indexed positions, rotated continuously with variable speed and direction or

shaken with variable speed and shake angle. The wider the shake angle, the lower the shake speed.

When a four-slot gobo wheel module is installed, the entire gobo wheel can be rotated, or the wheel

can be set to display random gobos, letting you vary the time the fixture waits before changing from

one gobo to the next.

To project a gobo, select the gobo and action type on channel 5, then adjust the indexed angle or

direction and speed of rotation on channels 6 and 7. Using two channels for adjustment gives 16-bit

control.

Custom gobos

Gobos are user-replaceable. You can replace them with custom gobos made to your own design

provided that the gobos meet the quality and specifications of the Martin gobos supplied with the

fixture. See the Service and Maintenance chapter at the end of this User Manual for details of

installing and replacing gobos.

Single-gobo module: Sequence It gobo
