System installation 21
To create a DMX-controlled installation that draws DC power from the Martin® IP66 PSU:
1. See Figure 9 on page 20 for an overview of this type of installation
2. Make sure that no devices in the installation can be connected to AC mains power until all installation
work is complete.
3. Read “Safety information” on page 5 and “Precautions to avoid damage” on page 10.
4. Connect Exterior PixLine fixtures together in chains either directly using the fixtures’ cable tails and BBD
connectors or by adding Martin® hybrid cables with BBD connectors (see “Cables” on page 38).
Warning! Do not exceed the maximum total length of fixtures and total cable length per chain given in
“Safety limits for connecting devices” on page 6.
5. Install a blanking cap (see “Cables” on page 38) on the output connector of the last fixture on each chain
to protect from water, dirt etc. There is no need to install DMX termination plugs, as fixtures have integral
DMX termination.
6. See Figure 10. Connect a Martin® 5-pin XLR and Martin® IP66 PSU to BBD adapter cable (P/N
91616050) to the start of each chain.
• Connect the 5-pin male XLR connector on the adapter cable to a DMX link that carries a DMX signal
from an RDM-compliant DMX controller.
• Connect the male Martin® IP66 PSU connector on the adapter cable to the DC output of a Martin®
IP66 Power Supply Unit.
• Connect the female BBD connector on the adapter cable to the male BBD connector at the start of the
chain of Exterior PixLine fixtures.
7. Install a mains power cable on the Martin® IP66 Power Supply Unit and connect it to AC mains power.
8. Apply AC mains power to the DMX controller.
You can now configure the system. See ”System setup”on page 24.

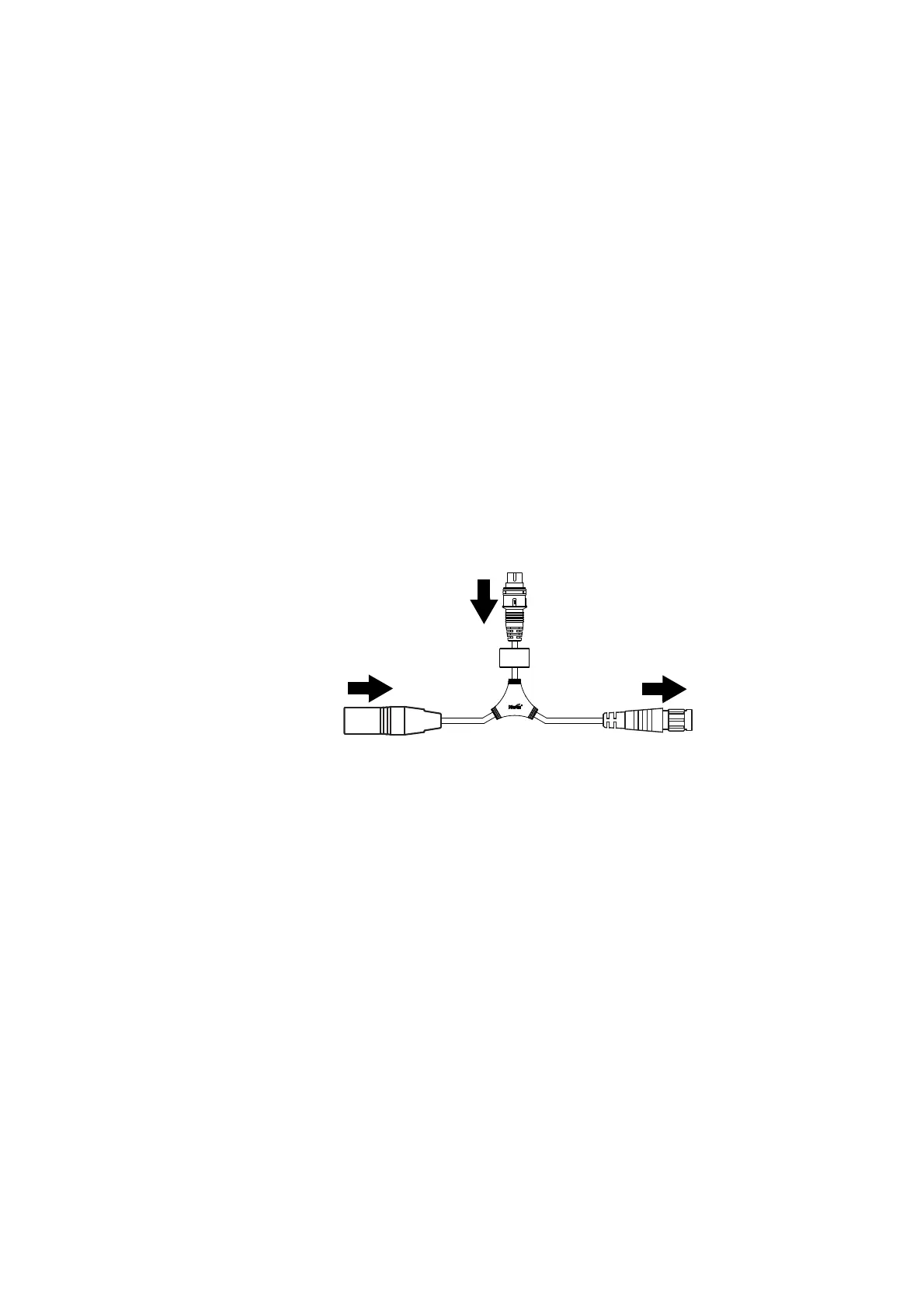

Figure 10: Martin® IP66 PSU and DMX connections to an Exterior PixLine chain
DC power input from
To Exterior PixLine
chain
5-pin male XLR
Female BBD
XLR5+Martin® IP66 PSU-to-BBD Input Cable, 0.25 m, P/N 91616050
Martin® IP66 PSU
DMX from DMX/RDM
controller
Martin® IP66 PSU
male connector
connector
