6 SYSTEM CONNECTIONS

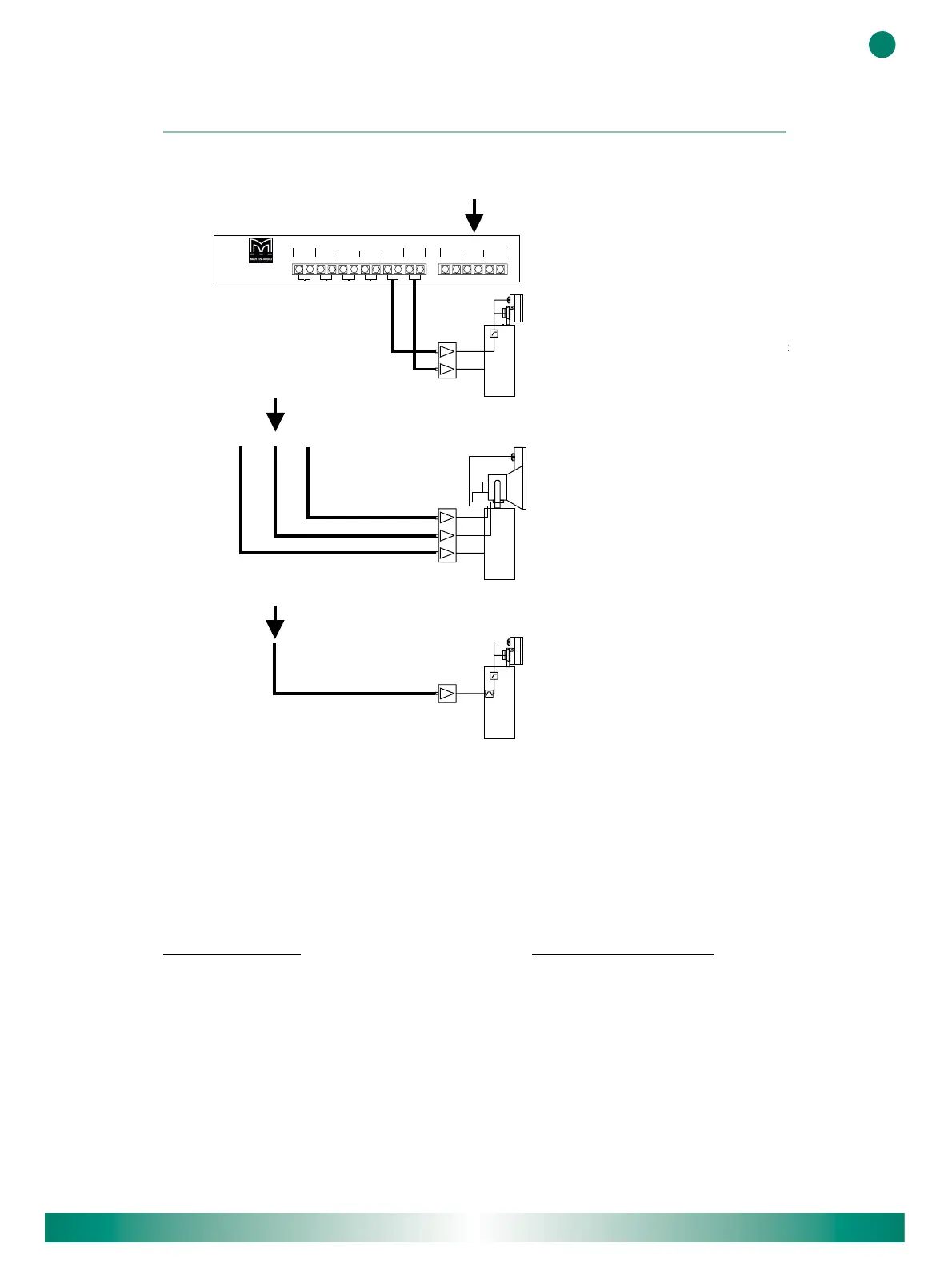

System block diagrams
6.1 Wiring Recommendations
When connecting Screen systems to an amplifier, it is recommended that
the return resistance of the cable used is less than one tenth of the nominal
impedance of the system or systems in parallel. The table below gives an
indication of the maximum permissible cable runs for various conductor
cross-sectional areas driving 4, 8 and 16 ohm loads.
Conductor CSA
Maximum Cable Run
4 ohms 8 ohms 16 ohms
1.5mm
2
17m 34m 68m
2.0mm
2
22m 44m 88m
2.5mm
2
29m 58m 116m
4.0mm
2
44m 88m 176m
6.0mm
2
66m 132m 264m
Martin Audio – CINEMA SERIES
ENGLISH
5
Outputs from THX / Tri amp Processor
Inputs from Processor
Outputs from Processor
Low Mid High
Screen 2/4/5B Bi amp connect
Screen 4T/5 Tri amp connecti
Screen 2P/4P Passive connect
Amplifiers
Amplifier
Amplifiers
+---+++-----+-++++
CMX1A/2A
INPUTSOUTPUTS
Inputs from Processor
Screen 2/4/5B Bi amp connection
Outputs from THX/Tri amp Processor
Amplifiers
Low
Mid
High
Amplifiers
Amplifier
Outputs from Processor
Screen 4T/5 Tri amp connection
Screen 2P/4P Passive connection
OUTPUTS
INPUTS
CMX1A/2A
All material © 2007. Martin Audio Ltd. Subject to change without notice.
