MLA MINI USER GUIDE
Place bushing and
chuck over the cable.
Prepare cable as
shown.
A
B
1.
2.
[0.32"]
8 mm
[0.787”]
20 mm
[0.9”]
PE 23 mm
[0.32"]
8 mm
[0.787”]
20 mm
[0.9”]
PE 23 mm
1.
2.
A PPL IA NCE INLET
NAC3FX
(Connector)
Power IN
NAC3MPX
Approval based:
Rating:
Cable Type:
Strain Relief:
Cable O.D.:
VDE
EN 60320-1/EN60320-2-2
250 V ac / 16 A
2
H05VV-F3G 1.0 mm
2
.5 - 2.5 mm
White chuck
6.3 - 11.4 mm
, Length max. 2 m
H05VV-F3G 1
UL
UL 498 / CSA C22.2 No. 182.3
250 V ac / 20 A
SJT 3 x 12 AWG
Black chuck
9.5 - 12.0 mm

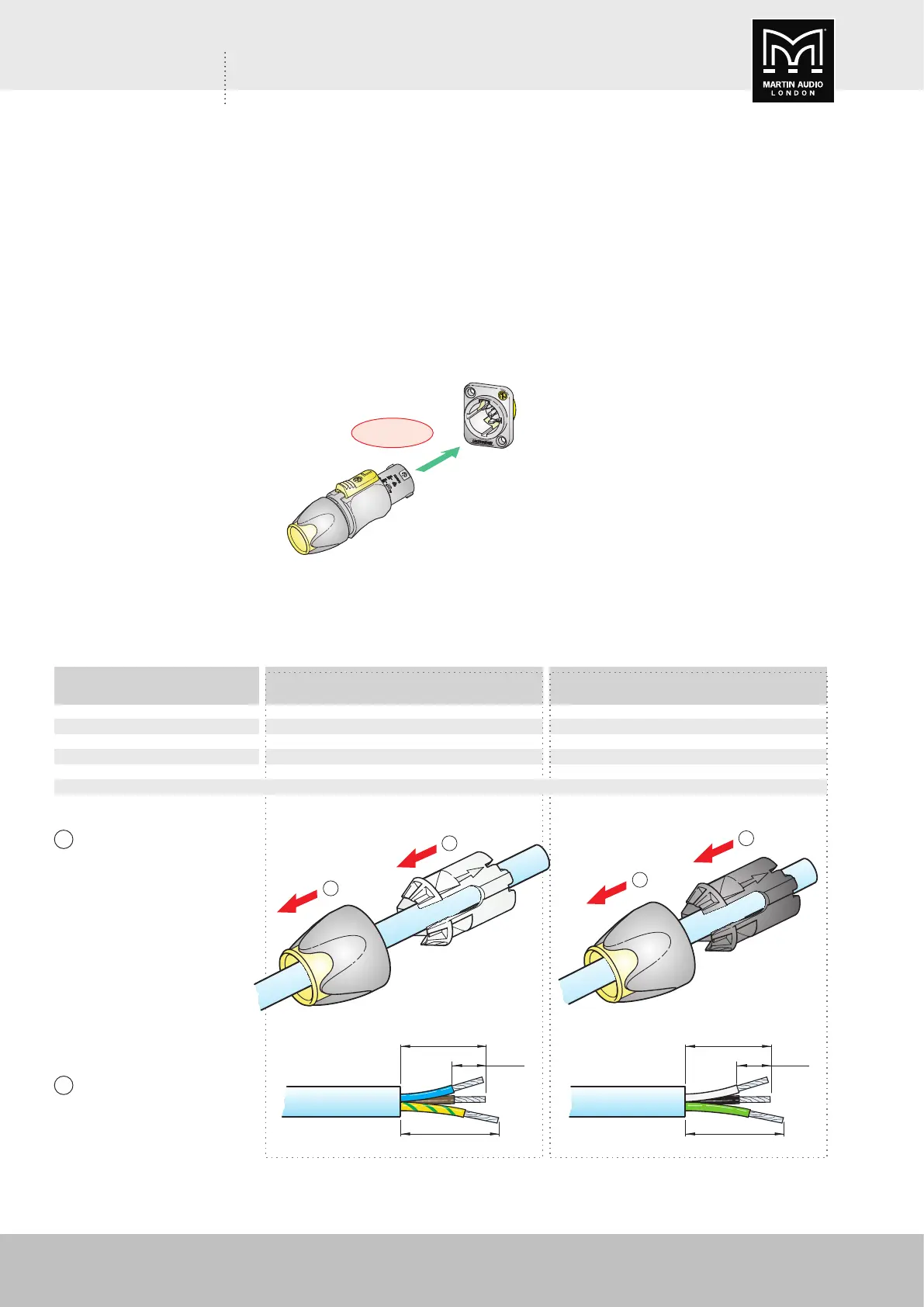

Neutrik® powerCON TRUE1 connector assembly instructions
The PowerCON TRUE1 system is certified as a connector with breaking capacity according to
IEC60320 and VDE0625. It is intended for use as an appliance and interconnection coupler. It
serves to supply power to an appliance. It should be installed by qualified personnel only.
