There are also TRS jacks for linking etc. They are wired as follows:
TIP - HOT (+)
RING - COLD (-)
SLEEVE - SHIELD/SIG. GROUND

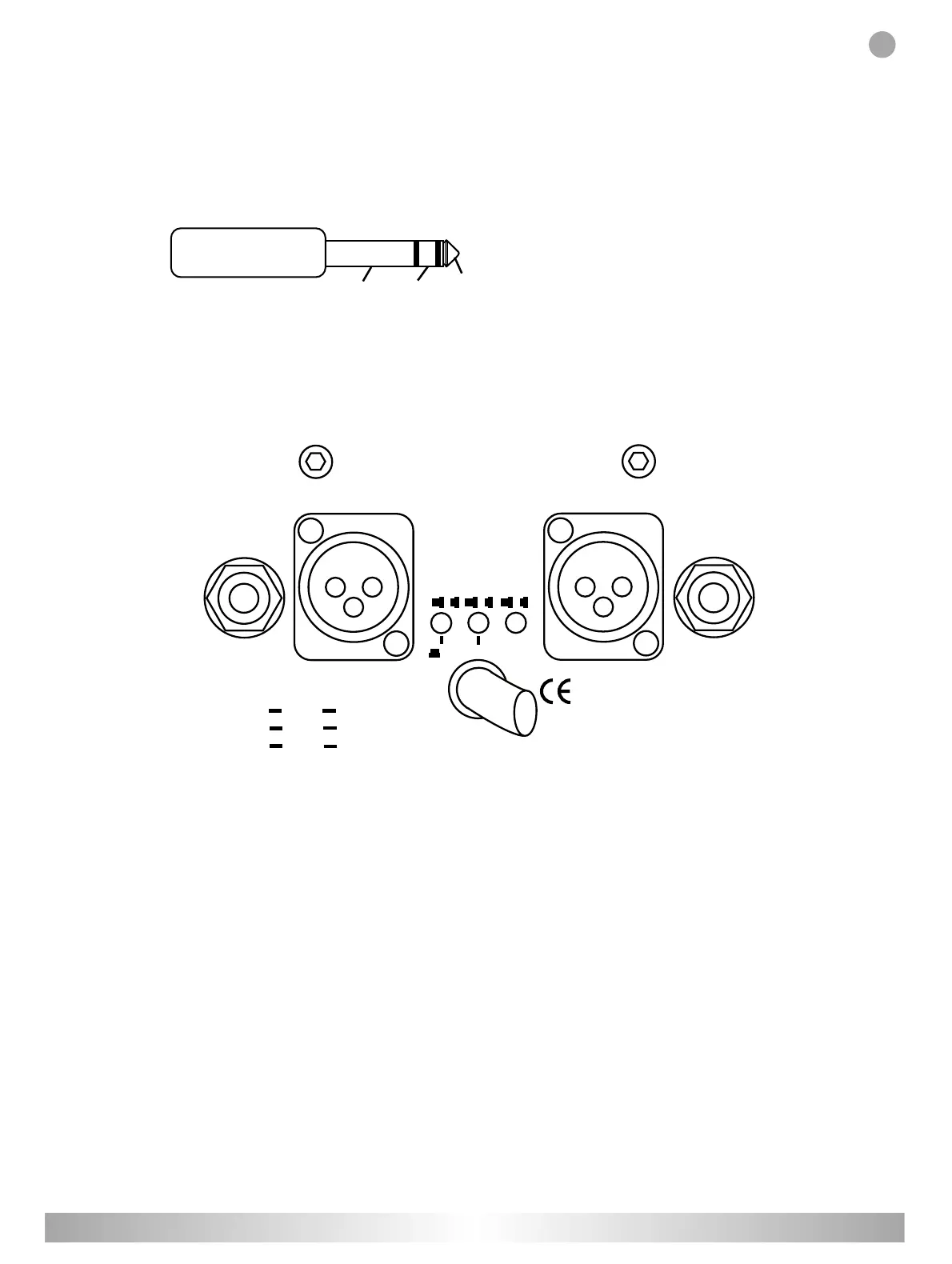

Figure 4. TRS phone plug
The input impedance is sufficiently high (20kohms balanced) to allow
"daisy-chaining", or multiple parallel input connections. To daisy-chain, use
the TRS jacks provided on each channel. The input circuits also have high
enough headroom to accept the maximum output level from virtually any
low-level signal source.
Figure 5. Rear panel connectors
Martin Audio – MA2.8 Power Amplifier
ENGLISH
9
SIG.GND – +
INPUT
CH.B
CH.A
Normal Pol.B
Reverse Pol.B
Stereo
Link A+B
Gain 38 dB
Gain 32 dB
Mono Bridge
XLR 1/4"
Pin 1 Gnd Sleeve
2 Pos Tip
3 Neg Ring
Must be grounded
230V AC 40-440Hz
All material © 2007. Martin Audio Ltd. Subject to change without notice.
<
>
