S218
H3
M3 Controller
M3-H3A
M3 Controller
M3-218H3
Ch2 Out
Ch2 Out
Ch1 Out
Ch1 Out
Left In
Left In

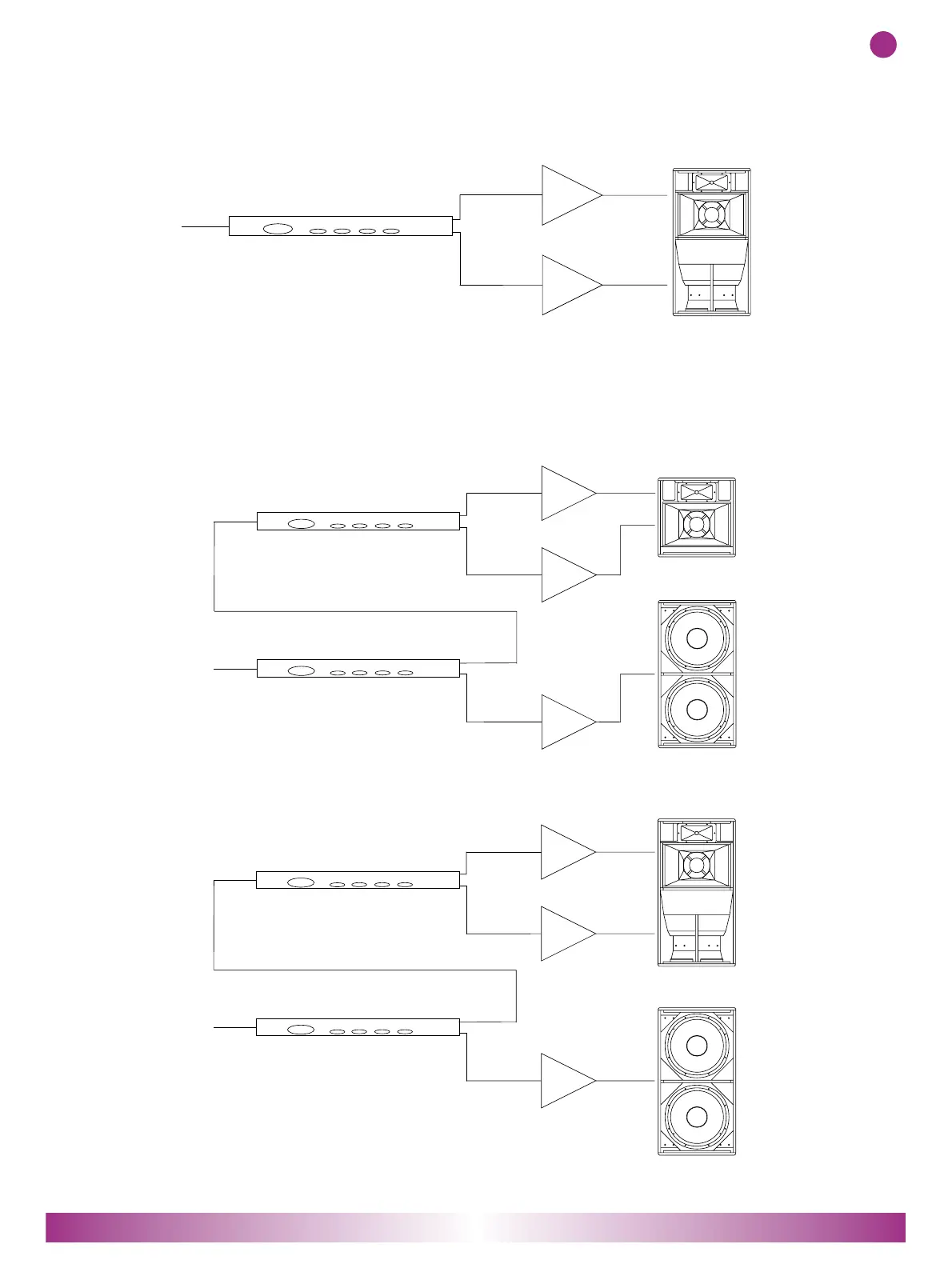

Figure18
.
Amplifiers
7.2.4 H3 Full-range M3-H3A
7.3 Tri-amped systems
7.3.1 H2 Active with S218 sub-bass M3-H2A & M3-218H2A
7.3.2 H3 with S218 sub-bass M3-H3A & M3-218H3
Martin Audio – M3 System Controller
ENGLISH
8
H3
M3 Controller
M3-H3A
Ch2 Out
Ch1 Out
Left In
Figure16.
Amplifier(s)
S218
H2
ACTIVE
M3 Controller
M3-H2A
M3 Controller
M3-218H2A
Ch2 Out
Ch2 Out
Ch1 Out
Ch1 Out
Left In
Left In
Figure17.
Amplifiers
Mode Switch High-pass (Green LED)
J7, J8, J9, J10 IN
J15, J16 POSITION ‘A’
J17 POSITION ‘A’
Mode Switch High-pass (Green LED)
J7, J8, J9, J10 IN
J15, J16 POSITION ‘A’ J17 POSITION ‘A’
Mode Switch High-pass (Green LED)
J7, J8, J9, J10 IN
J15, J16 POSITION ‘A’ J17 POSITION ‘A’
Mode Switch High-pass (Green LED) J7, J9 IN J8, J10 OUT
J15, J16 POSITION ‘A’ J17 POSITION ‘A’
Mode Switch High-pass (Green LED) J7, J9 IN J8, J10 OUT
J15, J16 POSITION ‘A’ J17 POSITION ‘A’
H3
All material © 2007. Martin Audio Ltd. Subject to change without notice.
