4 INPUT CONNECTIONS
(See Fig. 2)
The CMX1A should be connected immediately preceding the power
amplifiers and after any pre-amps or processing.
The 3 input channels are all (differential) electronically balanced on M4
screw terminals.
Always use 2 core and screen balanced type signal leads even for
unbalanced circuits. The screen should be regarded as separate from the
signal return even if they are connected together at one end of the line.
5 OUTPUT CONNECTIONS
(See Fig. 3)
All six outputs of the CMX1A are (single ended) unbalanced on M4 screw
terminals.
Martin Audio – CMX1A Cinema Controller
ENGLISH
4
Input 3 Input 2 Input 1
Cinema
Processor Output
CMX1A
High
Low
Input 1
CMX1A
AMPLIFIER INPUTS

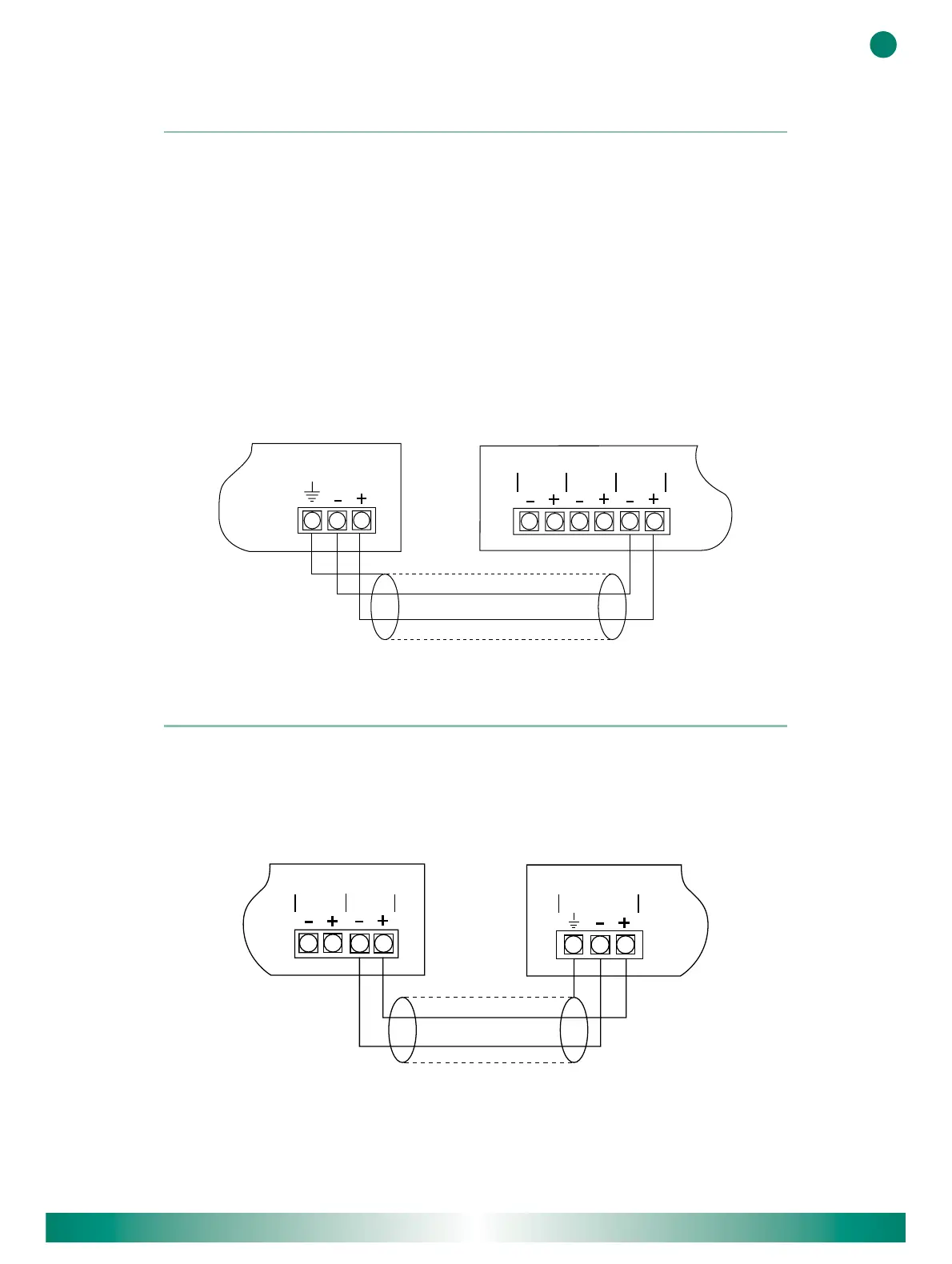

Fig. 2
Fig. 3
All material © 2007. Martin Audio Ltd. Subject to change without notice.
