BlacklineX USERGUIDE

BlacklineXUserGuideV2.1 46



…………



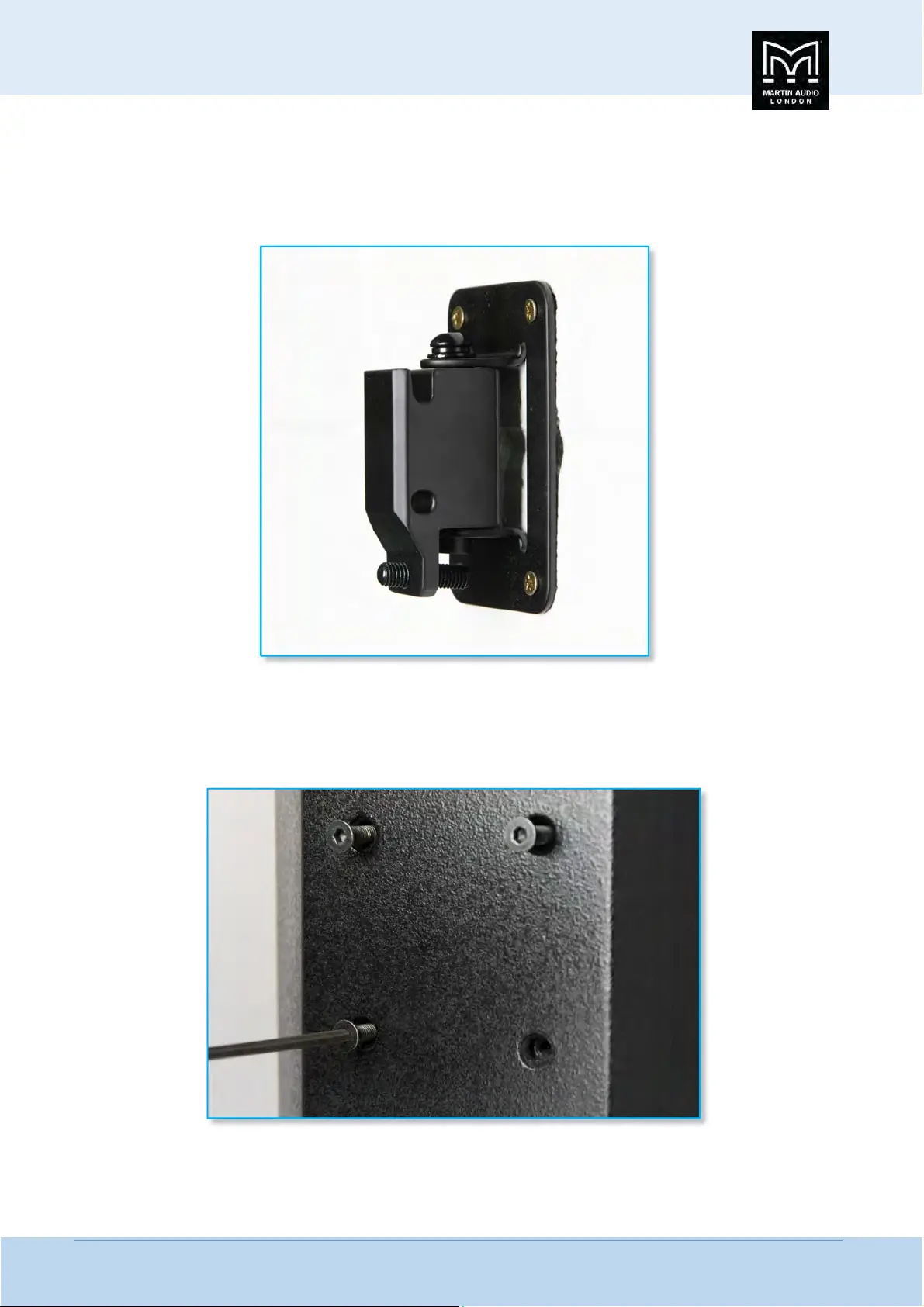

Firstfixistosecurethewallsectionofthebracket.Thisisthepartwithfourmountingholes,averticalboltholdingthesection

whichallowshorizontaladjustmentandtheslotintowhichthecabinetbracketboltsits.Useappropriatewallfixingssuitablefor

thecompositionofthewall.Thesemustbeofsufficientstre

ngthtosupporttheweightofthespeaker,8KgfortheX8,14Kgfor

theX10and17KgfortheX12



NextstepistoattachthecabinetsectionofthebrackettotheBlackline.Thisisthebracketwithfourcountersunkfixingholes

onasquarepatternwiththehorizontalbo

ltinthecurvedslot.

Therearofthecabinethassixcountersunkboltsfitteddesigned forusewiththemountingbrackets.Forportraitmoderemove

thelower4bolts,forlandscapemoderemovethemiddlefour;‐






