BlacklineX USERGUIDE

BlacklineXUserGuideV2.1 42



…………

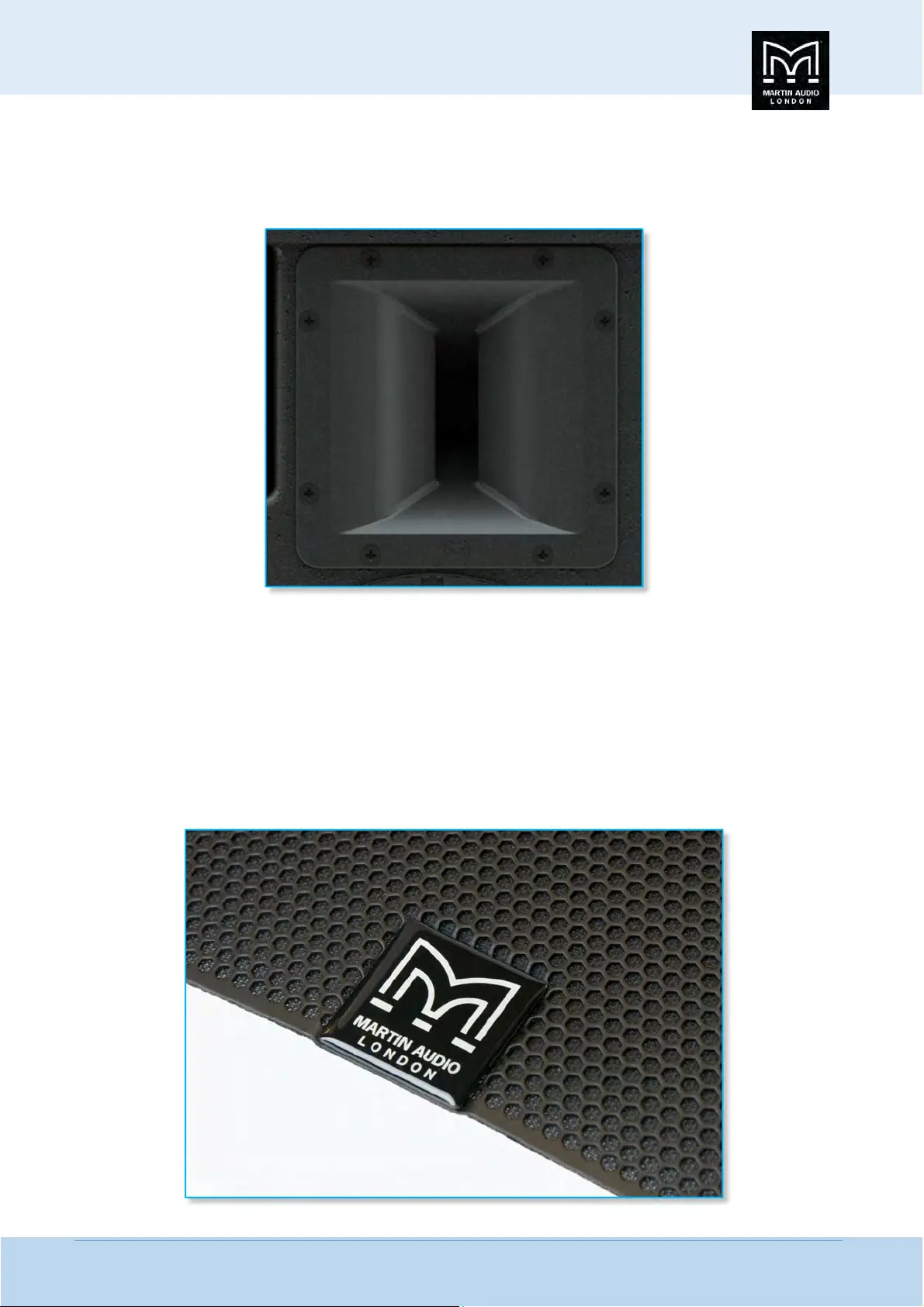

Rotating thehighfrequencyhorn

ThecompressiondriverandhornassemblyonallfullrangemodelsareheldintothecabinetusingeightPozidriveNo.2screws.

Oncethegrilleisremovedtheseareeasilyseenontheflangeofthehorn.Allmodelsareessentiallyidenticalwithjustalarger

hornflareonthebiggercabinets.



Whenusingth

ecabinetinhorizontalor"landscape"mode,unscrewall8screwsplacingthemsomewherewheretheywon'tget

lost.Carefullyliftthehornassemblyforward.Thereisnoneedtoliftitcompletelyoutofthecabinet,justenoughtoallowyou

torotateit.Turnitthrough90°ineitherdi

rection,lineuptheholesintheflangewiththoseinthecabinetandreplacealleight

screws.Becarefulnottoover‐tightenandcross‐threadthescrewsinthecabinetbaffle,itisonlywoodsodoesn'tneedtobetoo

tight.

BadgeRotati on

WhenusedinLandscapeyoumay wishtorotatetheMartinAudiobadgeonthegrillsothespeakerslikeslikeitissupposedto

beoperatedinthatorientation.Thebadgeisspringloadedandveryeasytorotateandcanonlybeturnedinfixed90°increments

soyouwillhavenoprob

lemmakingsurethatitisstraight.


