BlacklineX USERGUIDE

BlacklineXUserGuideV2.1 21



…………

WiringDiagrams

ThereareseveralwaysthatBlacklineXsystemscanbeconfiguredsowewillnowlookatsomepracticalwiringexamplesforthe

mostcommonsystemconfigurations.Wehaveshownalimitedrangeofspeakertypesbutthesamewiringcanbeusedforother

modelswhichwillbe listedwithanindicationofthecorrectDX0.5Blackline

XPresettoselect

SystemA‐basicset‐up



Productsthatmaybeusedwiththiswiring;‐

BlacklineX8

BlacklineX10

BlacklineX12

BlacklineX15

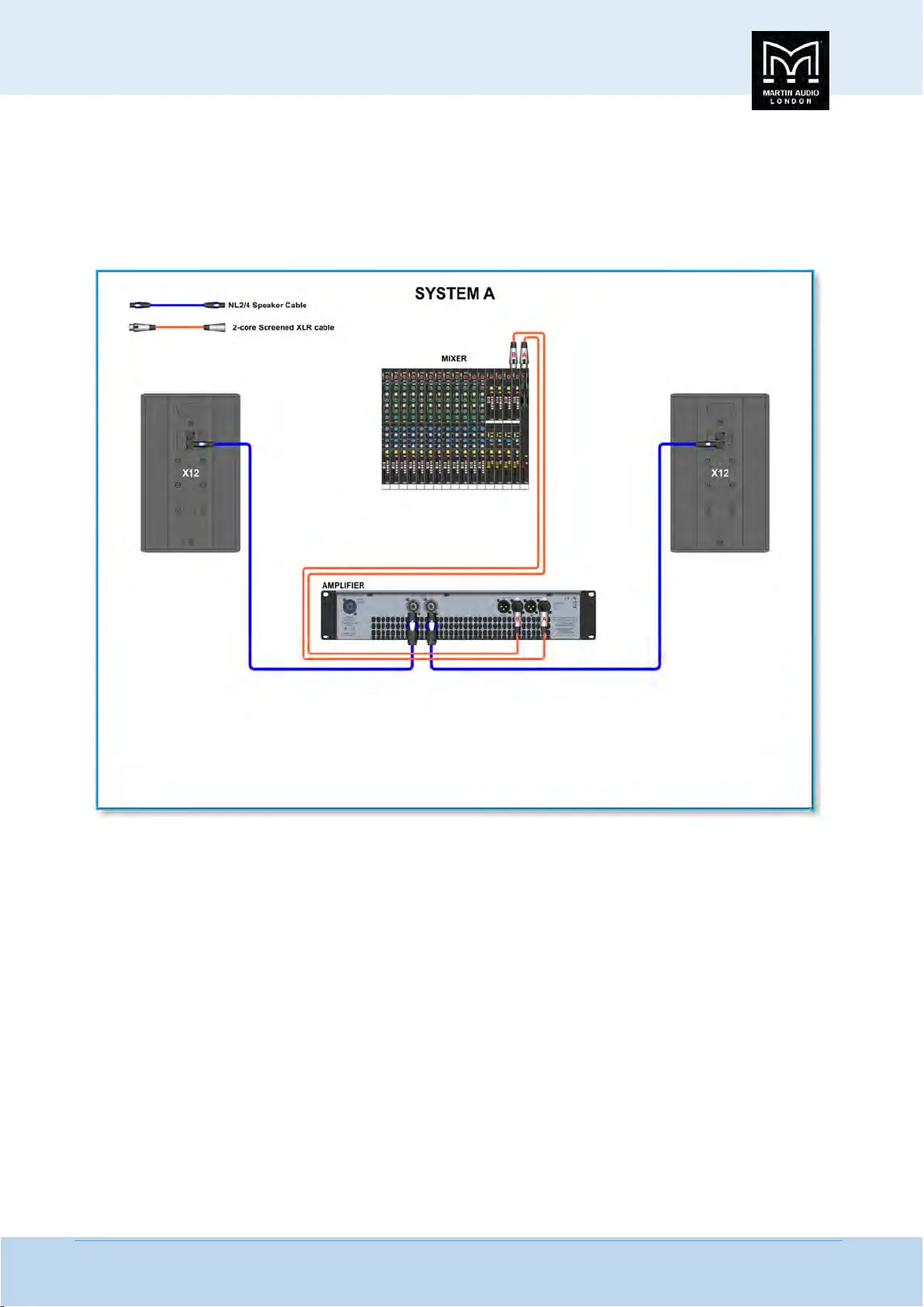

Thisisthemostsimplesystemsetup,connectingfromyoursource,oftenamixer,straighttotheamplifierusingbalancedXLR

"microphone"cables.ThenusingNeutrikNL2orNL4SpeakonspeakercablesfromtheamplifieroutputstotheBlacklineXspeaker

inputs.

Seethechapte

ronamplifierselectiontochoosethemostappropriateamplifierforusewiththeBlacklineXcabinet.Notethat

asthereisnosystemprocessingoranydescriptionyouwillneedtorunthesystemcarefullytoavoidover‐drivingandpotentially

damagingthespeaker.Listenforanydistortionathighvo

lumeortheamplifierlevelindicatorsshowingclippingandreducethe

levelfromthemixerimmediately.


