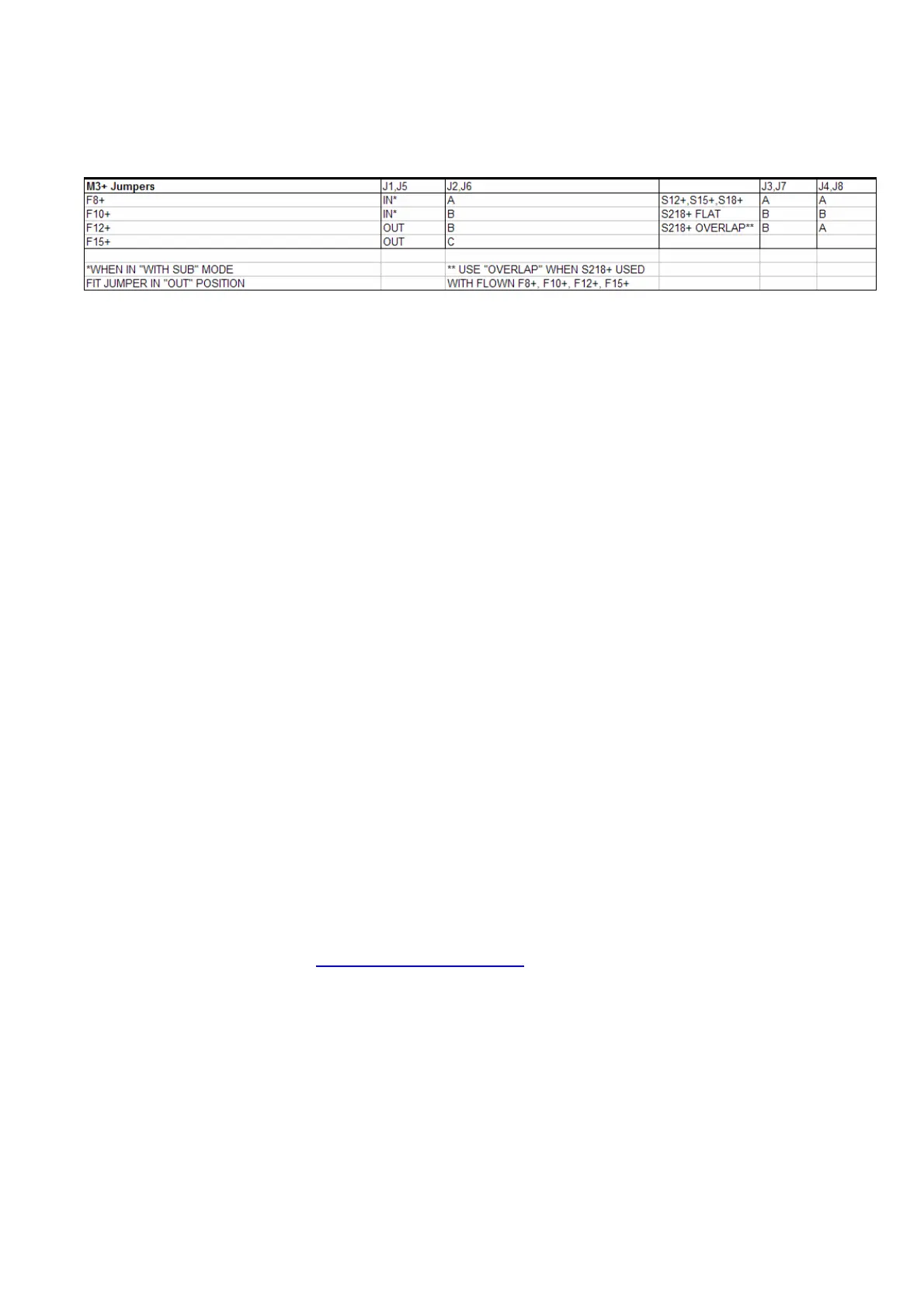

Combo Card jumper summary and notes
Combo Card “Full Range” jumper configurations
S218
+
Flat
This setting provides a tradition main-to-S218
+
crossover when F8
+
, F10
+
, F12
+
or F15
+
loudspeakers are placed on (or pole-mounted just above) the subwoofers.
S218
+
Overlap
This setting optimizes the main-to-S218
+
crossover when F8
+
, F10
+
, F12
+
or F15
+
loudspeakers are flown in an open space – well away from room surfaces (e.g. from a
truss).
Top card high pass filter
The Combo Card high pass filter (HPF) jumpers - J1 & J5 - should be placed in the Out
position when the front panel With Sub is selected as the LF cutoff for the F8
+
, F10
+
,
F12
+
or F15
+
loudspeaker is set by the motherboard main-to-sub crossover function in this
mode.
10.5 M3
+
F215
+
top card*
For use with Blackline the F215+ full range or with S218+
10.6 M3
+
H3A
+
top card*
For use with Blackline the H3/H3H
+
bi-amplified
10.7 M3
+
218
+
top card*
For use with a second M3+ controller where a Blackline bi-amplified H3/H3H
+
is to be used with an S218
+
* Pending. Please contact info@martin-audio.com for further information.
